30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate
30hp 35hp 40hp 50hp 60hp 75hp 85hp 100hp Water Deep Submersible Well Pump Price
Product overview :
QJ series submersible well pump including QJ deep well(borehole)submersible pumps, QJH stainless steel submersible well pumps, QJT bottom-suction submersible pumps and QJR submersible well pumps .
Submersible well pump materials:
- Impeller: Cast iron HT200, or stainless steel
- Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
- Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
- Motor Seal: Rubber O-ring seal,mechanical seal
- Motor regulating sleeve: rubber
Submersible well pump applications:
- Farmland irrigation, spray irrigation
- Water supply system for industrial buildings and civil buildings
- Water distribution system in mountain areas
- Low-lying areas and dunes
- Water supply and water drainage system for mines in urban or rural districts
- Other water conservancy facilities

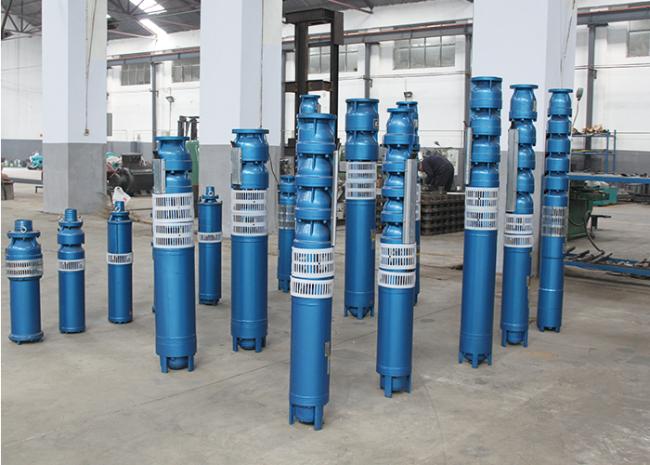

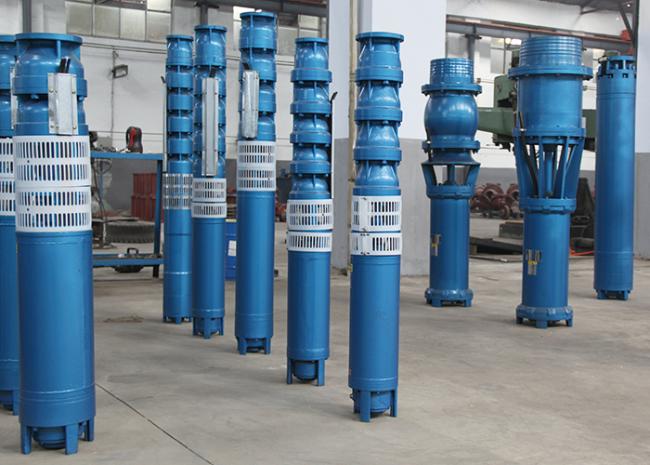

Submersible well pump overview:
Submersible well pump parameters:
|
Model |
Motor Power |
Flow range |
Meter range |
Outlet size |
Rated current |
|
| QJ Series | (kw) | (hp) | (m3/h) | (m) | Inch (") | A |
| 175QJ10-121/9 | 7.5 | 10 | 9/11 | 96-140 | 1.2" | 18.4 |
| 175QJ10-135/10 | 9.2 | 13 | 9/11 | 130-140 | 1.2" | 22.1 |
| 175QJ10-150/11 | 9.2 | 13 | 9/11 | 144-146 | 1.2" | 22.1 |
| 175QJ10-165/12 | 11 | 15 | 9/11 | 158-172 | 1.2" | 26.1 |
| 175QJ10-180/13 | 11 | 15 | 9/11 | 173-187 | 1.2" | 26.1 |
| 175QJ10-195/14 | 13 | 18 | 9/11 | 187-203 | 1.2" | 30.1 |
| 175QJ20-143/11 | 15 | 20 | 18-22 | 120-165 | 2" | 49.7 |
| 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 | 3" | 18 |
| 200QJ20-93/7 | 10 | 14 | 18-22 | 79-107 | 2" | 24.7 |
| 200QJ20-108/8 | 13 | 18 | 18-22 | 92-125 | 2" | 29.7 |
| 200QJ20-121/9 | 13 | 18 | 18-22 | 103-140 | 2" | 29.7 |
| 200QJ20-135/10 | 15 | 20 | 18-22 | 115-156 | 2" | 33.9 |
| 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 | 2" | 48.2 |
| 200QJ32-160/10 | 25 | 34 | 29-35 | 136-184 | 3" | 54.5 |
| 200QJ40-182/14 | 37 | 50 | 37-43 | 154-214 | 3" | 79.7 |
| 200QJ50-105/7 | 25 | 34 | 46-54 | 84-126 | 3" | 54.5 |
| 200QJ50-117/9 | 25 | 34 | 46-54 | 94-140 | 3" | 54.5 |
| 200QJ50-120/8 | 30 | 41 | 46-54 | 96-144 | 3" | 65.4 |
| 200QJ50-143/11 | 37 | 50 | 46-54 | 121-165 | 3" | 79.7 |
| 200QJ100-30/2 | 15 | 20 | 80-120 | 26-32 | 4" | 33.9 |
| 250QJ50-200/10 | 45 | 61 | 46-54 | 170-230 | 3" | 94.1 |
| 250QJ50-240/12 | 55 | 75 | 46-54 | 204-276 | 3" | 127.9 |
| 250QJ50-280/14 | 63 | 86 | 46-54 | 268-322 | 3" | 152.3 |
| 250QJ63-100/5 | 30 | 41 | 58-68 | 75-100 | 3" | 64.2 |
| 250QJ63-200/10 | 55 | 75 | 58-68 | 170-230 | 3" | 114.3 |
| 250QJ63-220/11 | 63 | 86 | 58-68 | 180-253 | 3" | 127.9 |
| 250QJ63-260/13 | 75 | 102 | 58-68 | 220-299 | 3" | 152.3 |
| 250QJ63-300/15 | 90 | 122 | 58-68 | 205-343 | 3" | 182.8 |
| 250QJ140-60/4 | 37 | 50 | 130-150 | 52-69 | 5" | 77.8 |
| 250QJ160-30/2 | 22 | 30 | 148-172 | 25-35 | 5" | 47.9 |
| 250QJ160-45/3 | 30 | 41 | 148-172 | 38-51 | 5" | 64.2 |
| 250QJ160-60/4 | 45 | 61 | 148-172 | 52-69 | 5" | 94.1 |
| 250QJ160-75/5 | 55 | 75 | 148-172 | 65-86 | 5" | 114.3 |
| 300QJ200-100/5 | 90 | 122 | 186-214 | 85-115 | 6" | 183.8 |
| 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 | 6" | 222.1 |
| 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 | 6" | 249.5 |
| 300QJ240-44/2 | 45 | 61 | 223-257 | 37-51 | 6" | 47.3 |
| 300QJ240-66/3 | 75 | 102 | 223-257 | 56-76 | 6" | 95.4 |
| 300QJ240-88/4 | 100 | 136 | 223-257 | 75-101 | 6" | 154.1 |
| 300QJ400-40/1 | 75 | 102 | 368-432 | 38-42 | 8" | 152.3 |
| 300QJ400-80/2 | 160 | 218 | 368-432 | 76-84 | 8" | 284.4 |
| 300QJ400-120/3 | 220 | 299 | 368-432 | 117-123 | 8" | 439.2 |
| 300QJ500-60/4 | 140 | 190 | 460-540 | 57-63 | 8" | 249.5 |
| 300QJ500-75/5 | 180 | 245 | 460-540 | 72-78 | 8" | 317.5 |
If these submersible well pump parameters do not meet your demand, please feel free to contact us. We will choose one model for you.
Working conditions of submersible well pump:
-
Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
-
Motor must be filled with clean water.
-
The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
-
Water temperatureshould not higher than 20 ℃.
-
Sand content of the water (by quality) not more than 0.01%.
-
Water PH 6.5~8.5.
-
The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
-
The content of chloridion in water shouldnot be higher than 400mg/l.
-
The water source must provide enough water for the pump to work continuously.
