Slim Submersible Well Pump 120HP - 215HP , Industrial Submersible Water Pump
120hp 135hp 145hp 150hp 185hp 215hp Water Deep Submersible Well Pump Price List
Submersible well pump overview :
QJ series submersible well pump including QJ deep well(borehole)submersible pumps, QJH stainless steel submersible well pumps, QJT bottom-suction submersible pumps and QJR submersible well pumps .
- Flow: 5-2000m3/h
- Lift head: 10-600m
- Motor power: 2.2-410kw
- Rated voltage: 380v/460v/480v/660v or customized
- Pump diameter: φ150~φ600mm
- Water temperature: <105℃
Submersible well pump materials:
Impeller: Cast iron HT200, or stainless steel
Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
Motor Seal: Rubber O-ring seal,mechanical seal
Motor regulating sleeve: rubber
Submersible well pump applications:
- Farmland irrigation, spray irrigation
- Water supply system for industrial buildings and civil buildings
- Water distribution system in mountain areas
- Low-lying areas and dunes
- Water supply and water drainage system for mines in urban or rural districts
- Other water conservancy facilities

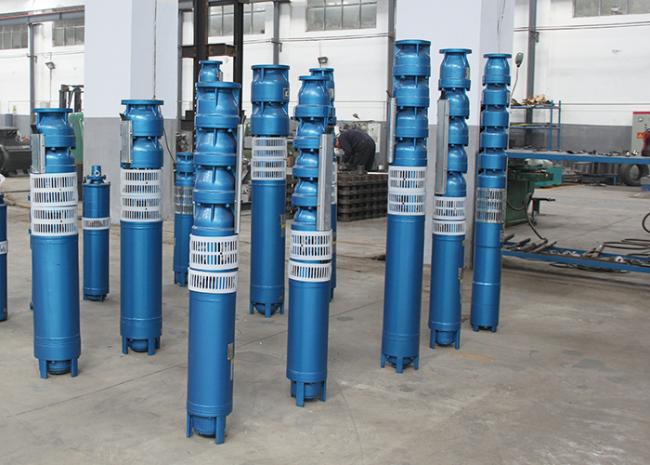

Submersible well pump pictures:
Submersible well pump parameters:
|
Model |
Motor Power |
Flow range |
Meter range |
Outlet size |
Rated current |
|
| QJ Series | (kW) | HP | m3/h | (m) | Inch (") | A |
| 175QJ10-121/9 | 7.5 | 10 | 9/11 | 96-140 | 1.2" | 18.4 |
| 175QJ10-135/10 | 9.2 | 13 | 9/11 | 130-140 | 1.2" | 22.1 |
| 175QJ10-150/11 | 9.2 | 13 | 9/11 | 144-146 | 1.2" | 22.1 |
| 175QJ10-165/12 | 11 | 15 | 9/11 | 158-172 | 1.2" | 26.1 |
| 175QJ10-180/13 | 11 | 15 | 9/11 | 173-187 | 1.2" | 26.1 |
| 175QJ10-195/14 | 13 | 18 | 9/11 | 187-203 | 1.2" | 30.1 |
| 175QJ20-143/11 | 15 | 20 | 18-22 | 120-165 | 2" | 49.7 |
| 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 | 3" | 18 |
| 200QJ20-93/7 | 10 | 14 | 18-22 | 79-107 | 2" | 24.7 |
| 200QJ20-108/8 | 13 | 18 | 18-22 | 92-125 | 2" | 29.7 |
| 200QJ20-121/9 | 13 | 18 | 18-22 | 103-140 | 2" | 29.7 |
| 200QJ20-135/10 | 15 | 20 | 18-22 | 115-156 | 2" | 33.9 |
| 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 | 2" | 48.2 |
| 200QJ32-160/10 | 25 | 34 | 29-35 | 136-184 | 3" | 54.5 |
| 200QJ40-182/14 | 37 | 50 | 37-43 | 154-214 | 3" | 79.7 |
| 200QJ50-105/7 | 25 | 34 | 46-54 | 84-126 | 3" | 54.5 |
| 200QJ50-117/9 | 25 | 34 | 46-54 | 94-140 | 3" | 54.5 |
| 200QJ50-120/8 | 30 | 41 | 46-54 | 96-144 | 3" | 65.4 |
| 200QJ50-143/11 | 37 | 50 | 46-54 | 121-165 | 3" | 79.7 |
| 200QJ100-30/2 | 15 | 20 | 80-120 | 26-32 | 4" | 33.9 |
| 250QJ50-200/10 | 45 | 61 | 46-54 | 170-230 | 3" | 94.1 |
| 250QJ50-240/12 | 55 | 75 | 46-54 | 204-276 | 3" | 127.9 |
| 250QJ50-280/14 | 63 | 86 | 46-54 | 268-322 | 3" | 152.3 |
| 250QJ63-100/5 | 30 | 41 | 58-68 | 75-100 | 3" | 64.2 |
| 250QJ63-200/10 | 55 | 75 | 58-68 | 170-230 | 3" | 114.3 |
| 250QJ63-220/11 | 63 | 86 | 58-68 | 180-253 | 3" | 127.9 |
| 250QJ63-260/13 | 75 | 102 | 58-68 | 220-299 | 3" | 152.3 |
| 250QJ63-300/15 | 90 | 122 | 58-68 | 205-343 | 3" | 182.8 |
| 250QJ140-60/4 | 37 | 50 | 130-150 | 52-69 | 5" | 77.8 |
| 250QJ160-30/2 | 22 | 30 | 148-172 | 25-35 | 5" | 47.9 |
| 250QJ160-45/3 | 30 | 41 | 148-172 | 38-51 | 5" | 64.2 |
| 250QJ160-60/4 | 45 | 61 | 148-172 | 52-69 | 5" | 94.1 |
| 250QJ160-75/5 | 55 | 75 | 148-172 | 65-86 | 5" | 114.3 |
| 300QJ200-100/5 | 90 | 122 | 186-214 | 85-115 | 6" | 183.8 |
| 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 | 6" | 222.1 |
| 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 | 6" | 249.5 |
| 300QJ240-44/2 | 45 | 61 | 223-257 | 37-51 | 6" | 47.3 |
| 300QJ240-66/3 | 75 | 102 | 223-257 | 56-76 | 6" | 95.4 |
| 300QJ240-88/4 | 100 | 136 | 223-257 | 75-101 | 6" | 154.1 |
| 300QJ400-40/1 | 75 | 102 | 368-432 | 38-42 | 8" | 152.3 |
| 300QJ400-80/2 | 160 | 218 | 368-432 | 76-84 | 8" | 284.4 |
| 300QJ400-120/3 | 220 | 299 | 368-432 | 117-123 | 8" | 439.2 |
| 300QJ500-60/4 | 140 | 190 | 460-540 | 57-63 | 8" | 249.5 |
| 300QJ500-75/5 | 180 | 245 | 460-540 | 72-78 | 8" | 317.5 |
If these submersible well pump parameters do not meet your demand, please feel free to contact us. We will choose one model for you.
Working conditions of submersible well pump:
-
Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
-
Motor must be filled with clean water.
-
The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
-
Water temperatureshould not higher than 20 ℃.
-
Sand content of the water (by quality) not more than 0.01%.
-
Water PH 6.5~8.5.
-
The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
-
The content of chloridion in water shouldnot be higher than 400mg/l.
-
The water source must provide enough water for the pump to work continuously.
