72m 11kw 15hp Submersible Clean Water Pump Cast Iron Material For Irrigation
72m 11kw 15hp Submersible Clean Water Pump Cast Iron Material For Irrigation

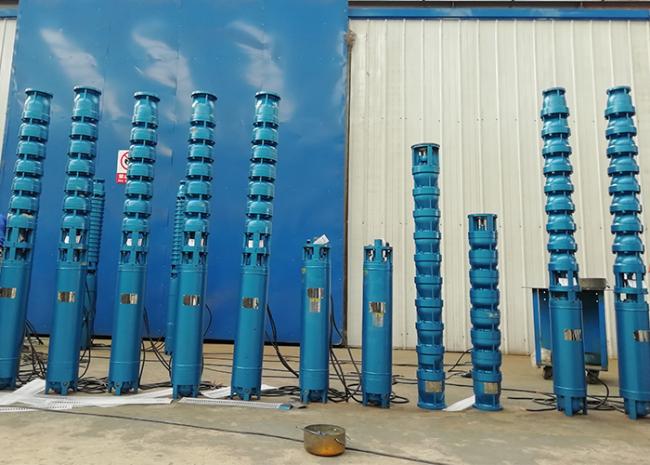

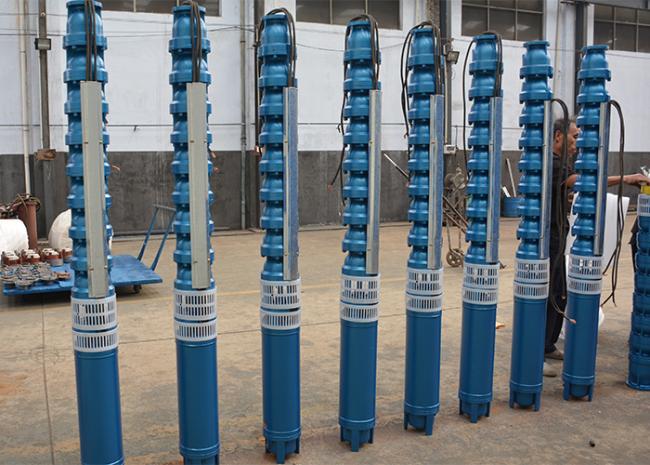

APK deep well submersible pump is linked with electric, also linked with solar panel, widely used in irrigation, pumping water. Motor is divided into water filled and oil filled. Water filled motor is no water pollution, oil filled motor is resistant rusty.
APK pump factory only manufactures submersible pumps more than 23 years, do more professional, 15 National Patents, Quality Assurance Certificates.
11kw deep well submersible pump parameters:
- Flow: 23-68m3/h
- Head: 34-112m
- Pump size: 7 8 10 inch submersible pump
- Power: 11kw 15hp
- Voltage: 380v/440v/600v or as per request
- Frequency: 3 phase 50hz/60hz
- Material: Cast iron/stainless steel
11kw submersible well pump applications:
- Groundwater pumping
- Irrigation system
- Water supply system
- Circulation or boosting for clean water
- Mining and other industrial applications
11kw submersible well pump features:
- Continuous running 1800 hours
- 7 years life with clean water
- 3 years life with water have impurities
- low noise and long lifetime
- Water-filled motor, no pollution
11kw submersible well pump parameters:
| Model | Motor Power | Flow Range | Head Range | Outlet Size | Rated Current | |
|
QJ Series
|
kw | hp | m3/h | m | Inch (") | A |
| 175QJ10-165/12 | 11 | 15 | 9-11 | 158-172 | 1.2" | 26.1 |
| 175QJ10-180/13 | 11 | 15 | 9-11 | 173-187 | 1.2" | 26.1 |
| 175QJ20-104/8 | 11 | 15 | 18-22 | 89-120 | 2" | 42.6 |
| 175QJ25-91/7 | 11 | 15 | 23-27 | 75-105 | 2" | 26.1 |
| 175QJ32-72/6 | 11 | 15 | 29-35 | 60-80 | 3" | 26.1 |
| 175QJ40-60/5 | 11 | 15 | 37-43 | 71-96 | 3" | 26.1 |
| 175QJ50-48/4 | 11 | 15 | 46-54 | 40-56 | 3" | 26.1 |
| 200QJ25-84/6 | 11 | 15 | 23-27 | 67-100 | 2" | 25.8 |
| 200QJ25-98/7 | 11 | 15 | 23-27 | 84-112 | 2" | 25.8 |
| 250QJ63-40/2 | 11 | 15 | 58-68 | 34-46 | 3" | 25.8 |
If 11kw submersible water pump parameters do not meet your demand, or you would like to know more details, please feel free to contact us, we will reply as soon as possible.
