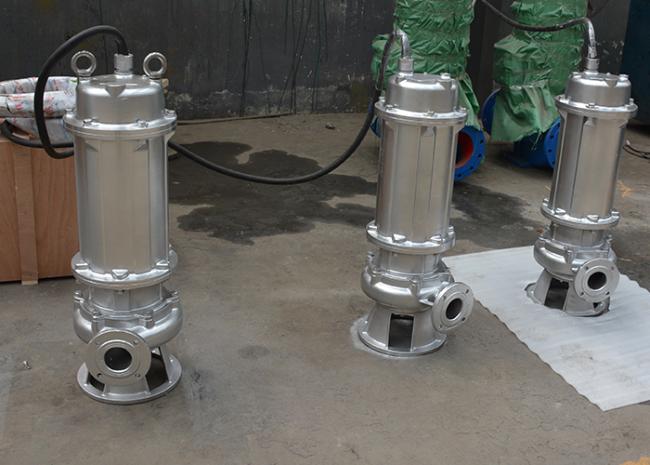

Stainless Steel Submersible Sewage Pump Non Clogging Fecal Rain Drainage
Stainless Steel Submersible Sewage Pump Non Clogging Fecal Rain Drainage
Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.
The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.
- Single channel or double channel impeller
- Non-clogging
- Titanium alloy mechnical sealing
- Stainless steel material, corrosive resistant
Submersible sewage pump overview:
- Flow: 5m3/h-3500m3/h submersible sewage pump
- Head: 5-200m submersible sewage pump
- Power: 2.2-220kw submersible sewage pump
- Voltage: 380v/440v or as per request
- Frequency: 3 phase 50hz/60hz
- Material: Cast iron/ss304/ss316/ss316l/duplex stainless/ss904
Submersible sewage pump applications:
- Raw water, rain water
- Municipal and industrial waste water
- Sewage treatment
- Construction
- Sea water, salt water
WQP submersible sewage pump parameters:
| Model | Outlet diameter (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) |
| WQP50-18-30-3 | 50 | 18 | 30 | 3 | 2900 |
| WQP50-40-15-4 | 50 | 40 | 15 | 4 | 2900 |
| WQP50-25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 |
| WQP50-20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 |
| WQP65-25-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 |
| WQP65-25-30-4 | 65 | 25 | 30 | 4 | 2900 |
| WQP65-30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 |
| WQP65-35-50-11 | 65 | 35 | 50 | 11 | 2900 |
| WQP65-35-60-15 | 65 | 35 | 60 | 15 | 2900 |
| WQP80-43-13-3 | 80 | 43 | 13 | 3 | 2900 |
| WQP80-40-15-4 | 80 | 40 | 15 | 4 | 2900 |
| WQP80-65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 |
| WQP100-110-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 |
| WQP100-100-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 |
| WQP100-80-20-7.5 | 100 | 80 | 20 | 7.5 | 1450 |
| WQP100-100-25-11 | 100 | 100 | 25 | 11 | 1450 |
| WQP100-100-30-15 | 100 | 100 | 30 | 15 | 1450 |
| WQP125-130-15-11 | 125 | 130 | 15 | 11 | 1450 |
| WQP125-130-20-15 | 125 | 130 | 20 | 15 | 1450 |
| WQP150-150-13-11 | 150 | 150 | 13 | 11 | 1450 |
| WQP150-180-15-15 | 150 | 180 | 15 | 15 | 1450 |
| WQP150-180-20-18.5 | 150 | 180 | 20 | 18.5 | 1450 |
| WQP150-180-25-22 | 150 | 180 | 25 | 22 | 1450 |
| WQP150-180-30-30 | 150 | 180 | 30 | 30 | 1450 |
| WQP150-130-30-22 | 150 | 130 | 30 | 22 | 1450 |
| WQP150-200-30-37 | 150 | 200 | 30 | 37 | 1450 |
| WQP150-200-50-55 | 150 | 200 | 50 | 55 | 1450 |
| WQP200-300-7-11 | 200 | 300 | 7 | 11 | 1450 |
| WQP200-250-11-15 | 200 | 250 | 11 | 15 | 1450 |
| WQP200-250-15-18.5 | 200 | 250 | 15 | 18.5 | 1450 |
| WQP200-400-10-22 | 200 | 400 | 10 | 22 | 1450 |
| WQP200-400-13-30 | 200 | 400 | 13 | 30 | 1450 |
| WQP200-400-30-45 | 200 | 400 | 30 | 45 | 1450 |
| WQP200-400-32-55 | 200 | 400 | 32 | 55 | 1450 |
| WQP200-400-45-75 | 200 | 400 | 45 | 75 | 1450 |
| WQP200-400-50-90 | 200 | 400 | 50 | 90 | 1450 |
| WQP200-300-65-110 | 200 | 300 | 65 | 110 | 1450 |
| WQP200-300-15-22 | 200 | 300 | 15 | 22 | 1450 |
| WQP200-250-22-30 | 200 | 250 | 22 | 30 | 1450 |
| WQP200-350-25-37 | 200 | 350 | 25 | 37 | 1450 |
| WQP250-500-7-22 | 250 | 500 | 7 | 22 | 1450 |
| WQP250-600-9-30 | 250 | 600 | 9 | 30 | 1450 |
| WQP250-600-9-37 | 250 | 600 | 9 | 37 | 1450 |
| WQP250-600-15-45 | 250 | 600 | 15 | 45 | 1450 |
| WQP250-600-20-55 | 250 | 600 | 20 | 55 | 1450 |
| WQP250-600-25-75 | 250 | 600 | 25 | 75 | 1450 |
| WQP300-800-12-45 | 300 | 800 | 12 | 45 | 1450 |
| WQP300-800-15-55 | 300 | 800 | 15 | 55 | 1450 |
| WQP300-800-20-75 | 300 | 800 | 20 | 75 | 1450 |
| WQP300-100-25-110 | 300 | 1000 | 25 | 110 | 1450 |
| WQP350-1100-10-55 | 350 | 1100 | 10 | 55 | 1450 |
| WQP350-1000-15-75 | 350 | 1000 | 15 | 75 | 1450 |
| WQP400-1500-8-55 | 400 | 1500 | 8 | 55 | 980 |
| WQP400-1300-13-75 | 400 | 1300 | 13 | 75 | 1450 |
| WQP400-1500-10-75 | 400 | 1500 | 10 | 75 | 980 |
| WQP400-1500-18-110 | 400 | 1500 | 18 | 110 | 1450 |
It is one part of stainless steel submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
