200m3/H 22m Cutter Submersible Sewage Pump 30kw 40hp Ss304 Material
200m3/h 22m Cutter Submersible Sewage Pump 30kw 40hp to Vietnam
30kw 40hp submersible sewage pump is maximum flow is 1500m3/h, however, head is low. Main material is cast iron and stainless steel.
Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.
The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.
On 23, August, 2019, 5 pieces cutter sewage pump with reamer were delivered to Vietnam. SS304 material.
-
Outlet diameter: 150mm
-
Flow: 200m3/h
-
Head: 22m
-
Power: 30kw
-
Material: stainless steel 304
-
Application: sewage pump with cutter features
-
Site: Vietnam

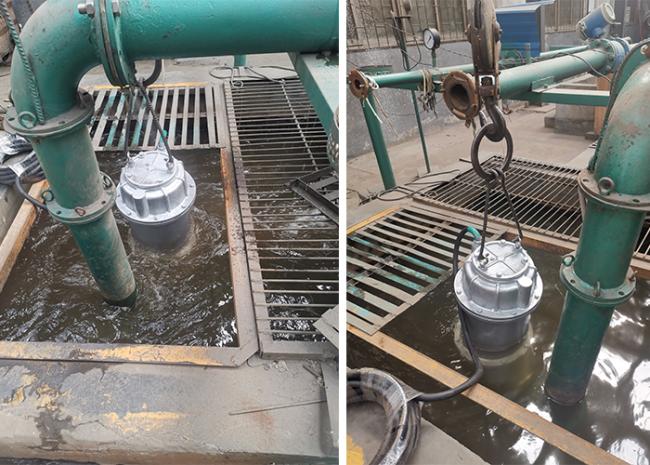

All submersible pumps from APK pump factory will be tested to promise quality, we could send testing video and data if you need.

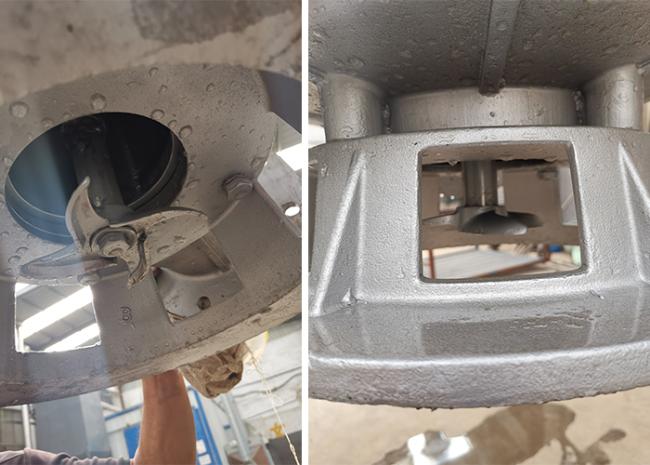

Cutting sewage pump with reamer, more cutting features.

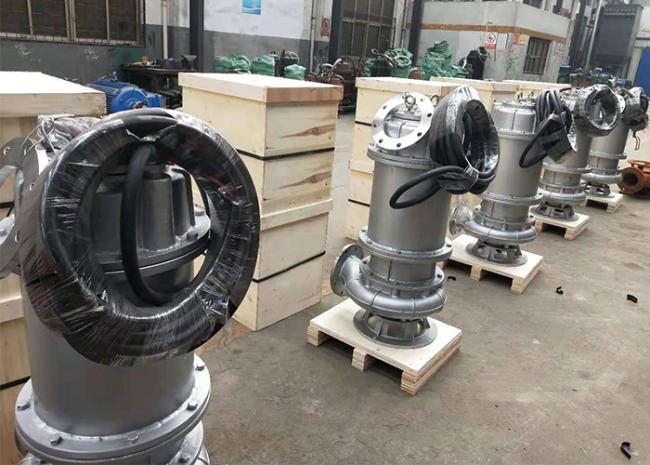

Each submersible sewage pump with cutter is packed with wooden case to promise safe delivery.
WQ submersible sewage pump parameters:
| Outlet diameter | Model | Flow | Head | Speed | Power |
| mm | WQ Series | m3/h | m | r/min | kw |
| 150 | 150WQ150-40-30 | 150 | 40 | 1470 | 30 |
| 150 | 150WQ160-45-30 | 160 | 45 | 1470 | 30 |
| 200 | 200WQ300-20-30 | 300 | 20 | 980 | 30 |
| 200 | 200WQ400-13-30 | 400 | 13 | 1470 | 30 |
| 250 | 250WQ500-10-30 | 500 | 10 | 980 | 30 |
| 250 | 250WQ600-9-30 | 600 | 9 | 1470 | 30 |
| 300 | 300WQ700-11-30 | 700 | 11 | 980 | 30 |
| 300 | 300WQ850-7-30 | 850 | 7 | 1470 | 30 |
| 350 | 350WQ900-6-30 | 900 | 6 | 1470 | 30 |
| 350 | 350WQ1200-6-30 | 1200 | 6 | 730 | 30 |
| 400 | 400WQ1500-5-30 | 1500 | 5 | 730 | 30 |
It is one part of 30kw 40hp submersible sewage cutter pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
