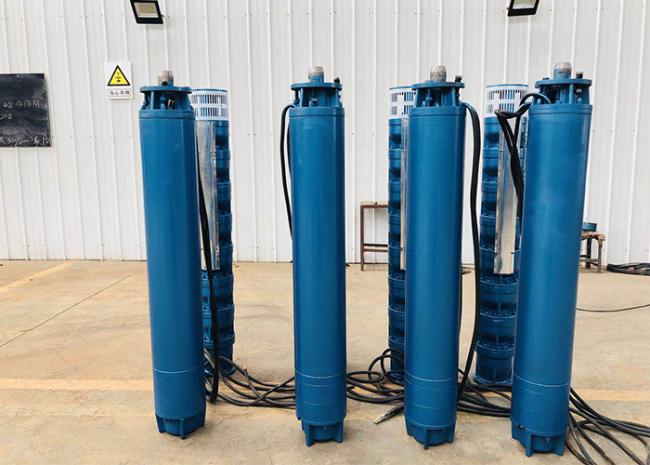

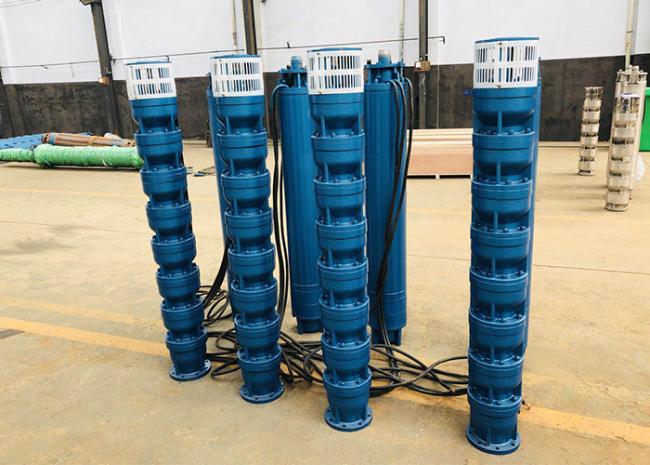

Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m
Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m
Submersible well water pump can be divided into two kinds, one is shallow well pump, the other is deep well submersible pump. Shallow well pump, as name suggests, used for shallow well. It is a kind of centrifugal pump with long transmission shaft, its structure is simple and high efficient. Compared with shallow one, deep well submersible pump is more broadly used.
Submersible well water pump is an important water supply device. It is used in residential water supply, agricultural irrigation, industrial cooling, sea water lift, geothermal heating and ship load.
It is consists of four main parts. They are water pump, submersible electric motor, water pipe and control switch.
Submersible well pump overview:
- Pump diameter: 10 12 18 Inch well submersible pump
- Flow rate: 46-850m3/h submersible pump
- Head rate: 12-375m
- Motor Power: 75kw100hp submersible water pump
- Voltage:380v/420v/440v/660v /1140v or as per request
- Frequency: 3 phase 50hz/60hz
- Material: Cast iron/ss304/ss316/ss316L/Duplex stainless/SS904 (pump sets or casting parts)
- Install: Vertical
Submersible well pump applications:
- Groundwater pumping
- Irrigation system
- Water supply system
- Clean water supply
- Fountain project
- Water drawing system in hills and mountain areas
- Drawing water from wells
- Water supply and drainage system for industrial or civil buildings
- Water supply and drainage system system for mines and factories in cities or villages
- Sea water, salt water
SUbmersible pump cable length could be request.

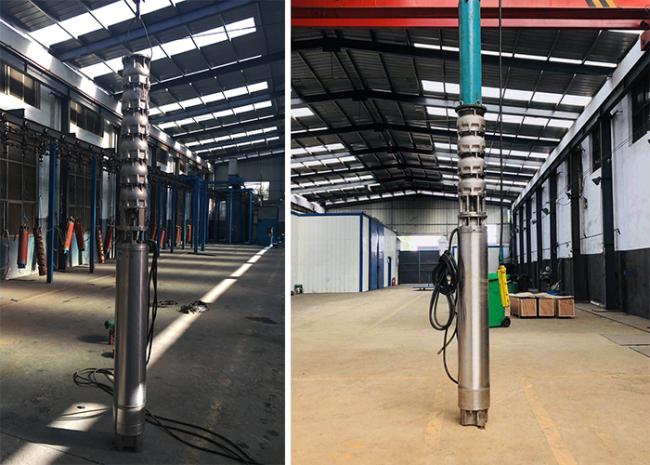

75kw 100hp submersible well pump stainless steel material:
75kw100hp Submersible well pump parameters:
| Pump diameter | Model | Power | Flow Range | Head Range | |
| Inch(") | QJ Series | kw | hp | m3/h | m |
| 10" | 250QJ50-320/16 | 75 | 100 | 46-54 | 272-368 |
| 10" | 250QJ50-340/17 | 75 | 100 | 46-54 | 315-375 |
| 10" | 250QJ63-260/13 | 75 | 100 | 58-68 | 220-299 |
| 10" | 250QJ80-200/10 | 75 | 100 | 74-86 | 170-230 |
| 10" | 250QJ100-162/9 | 75 | 100 | 80-120 | 140-189 |
| 10" | 250QJ125-128/8 | 75 | 100 | 116-134 | 109-147 |
| 10" | 250QJ140-120/8 | 75 | 100 | 130-150 | 104-137 |
| 10" | 250QJ160-105/7 | 75 | 100 | 148-172 | 90-120 |
| 12" | 300QJ200-80/4 | 75 | 100 | 186-214 | 68-92 |
| 12" | 300QJ240-66/3 | 75 | 100 | 223-257 | 56-76 |
| 12" | 300QJ300-60/3 | 75 | 100 | 279-321 | 51-69 |
| 12" | 300QJ400-40/1 | 75 | 100 | 368-432 | 38-42 |
| 12" | 300QJ500-30/2 | 75 | 100 | 460-540 | 29-32 |
| 18" | 450QJ800-16/1 | 75 | 100 | 750-850 | 12-30 |
It is one part of 75kw 100hp submersible well pump parameters. If you would like to know more, please feel
free to send an inquiry.
