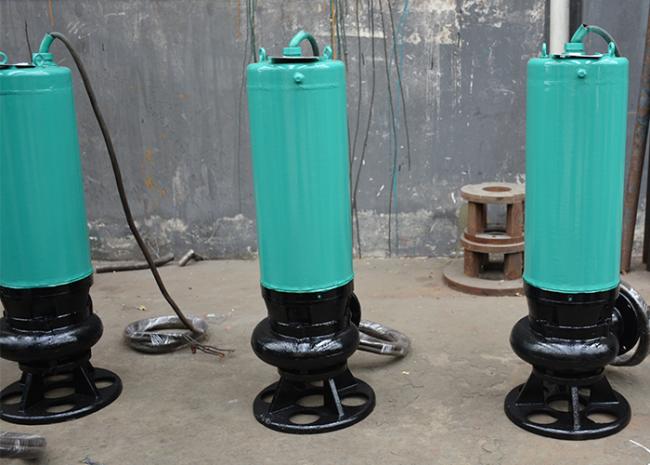

6 Inch Submersible Sewage Pump 2900r/Min Speed For Waste Water ODM OEM
6 inch sewage pump parameters:
- Flow: 70-300m3/h
- Head: 7-60m
- Power: 7.5kw 9.2kw 11kw 13kw 15kw 18.5kw 22kw 30kw 37kw sewage pump
- Voltage: 380v/440v or as per request
- Frequency: 3 phase 50hz/60hz
- Material: cast iron/ss304/ss316/ss316l
6 inch sewage pump features:
-
Single channel or double channel impeller
-
Titanium alloy mechanical sealing
-
More than 8000 hours of continuous operation
-
Can working with total head
-
Fixed auto-couple and mobile installation
-
Non-clogging
6 inch sewage pump applications:
-
Mining use,raw water
-
Drainge silt of pool, agriculture irrigation
-
Municipal and industrial waste water
-
Power plant and urban sewage treatment
-
Construction drainge
-
Drainage wastewater with particles
-
Other industrial applications
6 inch water filled sewage pump parameters:
| Outlet diameter | Type | Flow | Head | Speed | Power |
| inch(mm) | WQS | m3/h | m | r/min | kw |
| 4(100) | 100WQS100-12-7.5 | 100 | 12 | 2900 | 7.5 |
| 6(150) | 150WQS140-10-9.2 | 140 | 10 | 2900 | 9.2 |
| 4(100) | 100WQS100-15-9.2 | 100 | 15 | 2900 | 9.2 |
| 4(100) | 100WQS70-30-11 | 70 | 30 | 2900 | 11 |
| 6(150) | 150WQS150-10-11 | 150 | 10 | 2900 | 11 |
| 4(100) | 100WQS70-40-13 | 70 | 40 | 2900 | 13 |
| 4(100) | 100WQ100-20-13 | 100 | 20 | 2900 | 13 |
| 6(150) | 150WQS150-15-13 | 150 | 15 | 2900 | 13 |
| 6(150) | 150WQS200-12-13 | 200 | 12 | 2900 | 13 |
| 6(150) | 150WQS180-15-15 | 180 | 15 | 2900 | 15 |
| 8(200) | 200WQ300-7-15 | 300 | 7 | 2900 | 15 |
| 6(150) | 150WQS150-20-18.5 | 150 | 20 | 2900 | 18.5 |
| 6(150) | 150WQS200-16-18.5 | 200 | 16 | 2900 | 18.5 |
| 4(100) | 100WQS100-30-18.5 | 100 | 30 | 2900 | 18.5 |
| 6(150) | 150WQS150-30-22 | 150 | 30 | 2900 | 22 |
| 4(100) | 100WQS100-50-22 | 100 | 50 | 2900 | 22 |
| 6(150) | 150WQS200-20-22 | 200 | 20 | 2900 | 22 |
| 4(100) | 100WQS100-60-30 | 100 | 60 | 2900 | 30 |
| 6(150) | 150WQ200-30-30 | 200 | 30 | 2900 | 30 |
| 6(150) | 150WQS200-40-37 | 200 | 40 | 2900 | 37 |
It is one part of 6 inch water filled sewage pump parameters. If you would like to know more, please feel free to send an inquiry. We will send quotation as soon as possible.
