11 Stages Deep Well Submersible Pump 8 Inch 63m3/H 154m Cast Iron Material
8 inch 63m3/h 154m water multistage vertical electric pumps deep well submersible pump
5 pieces water deep well submersible pumps to Kazakhstan:
- Diameter: 8 inch/200mm submersible pump
- Flow: 63m3/h
- Head: 154m/11 stages
- Power: 45kw 60hp
- Install: vertical
Shenlong pump factory is a competitive reputable OEM&ODM submersible pump manufacturer.
Manufacturing from raw material cast to finished production to package. We have raw marterial testing reports for stainless steel material.
8 inch submersible pump parameters:
(It is regular submersible pump type in Shenlong pump factory, stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)
| Diameter | Model | Power | Flow range | Head range | |
| Inch (") | QJ type | kw | hp | m3/h | m |
| 8" | 200QJ15-81/6 | 7.5 | 10 | 18-22 | 68-92 |
| 8" | 200QJ20-93/7 | 10 | 14 | 18-22 | 79-107 |
| 8" | 200QJ20-121/9 | 13 | 18 | 18-22 | 103-140 |
| 8" | 200QJ20-148/11 | 15 | 20 | 18-22 | 126-170 |
| 8" | 200QJ20-175/13 | 18.5 | 25 | 18-22 | 150-210 |
| 8" | 200QJ20-202/15 | 22 | 30 | 18-22 | 172-232 |
| 8" | 200QJ20-243/18 | 25 | 35 | 18-22 | 206-280 |
| 8" | 200QJ20-283/21 | 30 | 40 | 18-22 | 240-325 |
| 8" | 200QJ20-338/25 | 37 | 50 | 18-22 | 287-388 |
| 8" | 200QJ20-405/30 | 45 | 60 | 18-22 | 345-465 |
| 8" | 200QJ25-56/4 | 7.5 | 10 | 23-27 | 45-67 |
| 8" | 200QJ25-70/5 | 9.2 | 13 | 23-27 | 56-84 |
| 8" | 200QJ25-98/7 | 11 | 15 | 23-27 | 84-112 |
| 8" | 200QJ25-112/8 | 13 | 18 | 23-27 | 96-129 |
| 8" | 200QJ25-126/9 | 15 | 20 | 23-27 | 100-145 |
| 8" | 200QJ25-154/11 | 18.5 | 25 | 23-27 | 138-184 |
| 8" | 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 |
| 8" | 200QJ25-210/15 | 25 | 35 | 23-27 | 180-240 |
| 8" | 200QJ25-252/18 | 30 | 40 | 23-27 | 210-290 |
| 8" | 200QJ25-308/22 | 37 | 50 | 23-27 | 260-355 |
| 8" | 200QJ32-52/4 | 7.5 | 10 | 29-35 | 42-62 |
| 8" | 200QJ32-65/5 | 10 | 14 | 29-35 | 52-78 |
| 8" | 200QJ32-96/6 | 15 | 20 | 29-35 | 77-115 |
| 8" | 200QJ32-117/9 | 18.5 | 25 | 29-35 | 94-140 |
| 8" | 200QJ32-144/9 | 22 | 30 | 29-35 | 123-172 |
| 8" | 200QJ32-169/13 | 25 | 35 | 29-35 | 144-195 |
| 8" | 200QJ32-195/15 | 30 | 40 | 29-35 | 166-225 |
| 8" | 200QJ32-240/15 | 37 | 50 | 29-35 | 204-276 |
| 8" | 200QJ32-288/18 | 45 | 60 | 29-35 | 245-330 |
| 8" | 200QJ40-39/3 | 7.5 | 10 | 37-43 | 34-46 |
| 8" | 200QJ40-65/5 | 13 | 18 | 37-43 | 56-77 |
| 8" | 200QJ40-78/6 | 15 | 20 | 37-43 | 67-93 |
| 8" | 200QJ40-117/9 | 22 | 30 | 37-43 | 94-140 |
| 8" | 200QJ40-143/11 | 25 | 35 | 37-43 | 121-170 |
| 8" | 200QJ40-169/13 | 30 | 40 | 37-43 | 144-201 |
| 8" | 200QJ40-208/16 | 37 | 50 | 37-43 | 177-247 |
| 8" | 200QJ40-234/18 | 45 | 60 | 37-43 | 206-277 |
| 8" | 200QJ50-30/2 | 7.5 | 10 | 46-54 | 24-36 |
| 8" | 200QJ50-45/3 | 10 | 14 | 46-54 | 36-54 |
| 8" | 200QJ50-52/4 | 13 | 18 | 46-54 | 42-62 |
| 8" | 200QJ50-65/5 | 15 | 20 | 46-54 | 52-78 |
| 8" | 200QJ50-78/6 | 18.5 | 25 | 46-54 | 63-93 |
| 8" | 200QJ50-91/7 | 22 | 30 | 46-54 | 73-110 |
| 8" | 200QJ50-119/7 | 25 | 35 | 46-54 | 94-140 |
| 8" | 200QJ50-135/9 | 30 | 40 | 46-54 | 119-162 |
| 8" | 200QJ50-195/15 | 45 | 60 | 46-54 | 165-225 |
| 8" | 200QJ63-28/2 | 7.5 | 10 | 58-68 | 24-33 |
| 8" | 200QJ63-56/4 | 15 | 20 | 58-68 | 48-65 |
| 8" | 200QJ63-70/5 | 22 | 30 | 58-68 | 60-82 |
| 8" | 200QJ63-84/6 | 25 | 35 | 58-68 | 72-96 |
| 8" | 200QJ63-112/8 | 30 | 40 | 58-68 | 93-131 |
| 8" | 200QJ63-126/9 |
37 |
50 | 58-68 | 100-147 |
| 8" | 200QJ63-154/11 | 45 | 60 | 58-68 | 130-180 |
| 8" | 200QJ80-22/2 | 7.5 | 10 | 74-86 | 19-25 |
| 8" | 200QJ80-44/4 | 15 | 20 | 74-86 | 37-50 |
| 8" | 200QJ80-55/5 | 18.5 | 25 | 74-86 | 47-63 |
| 8" | 200QJ80-66/6 | 22 | 30 | 74-86 | 56-75 |
| 8" | 200QJ80-88/8 | 30 | 40 | 74-86 | 75-101 |
| 8" | 200QJ80-99/9 | 37 | 50 | 74-86 | 84-113 |
| 8" | 200QJ100-15/1 | 7.5 | 10 | 74-86 | 12-16 |
| 8" | 200QJ100-30/2 | 15 | 20 | 80-120 | 26-32 |
| 8" | 200QJ100-45/3 | 22 | 30 | 80-120 | 42-47 |
| 8" | 200QJ100-60/4 | 30 | 40 | 80-120 | 58-62 |
| 8" | 200QJ100-75/5 | 37 | 50 | 80-120 | 72-77 |
| 8" | 200QJ100-90/6 | 45 | 60 | 80-120 | 88-92 |
| 8" | 200QJ100-105/7 | 45 | 60 | 80-120 | 102-107 |
8 inch submersible pump performance range:
- Flow range:18-120m3/h
- Head:12-465m
- Power: 7.5kw-45kw
- Voltage: 380v/440v/480v/600v/660v/1140v or another(sole pump manufacturer in China)
- Material: cast iron/stainless steel 304/316/316l/duplex stainless/904l
8 inch submersible pump application:
1. Ground water pumping
2. sea water desalination, sea food factory
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well

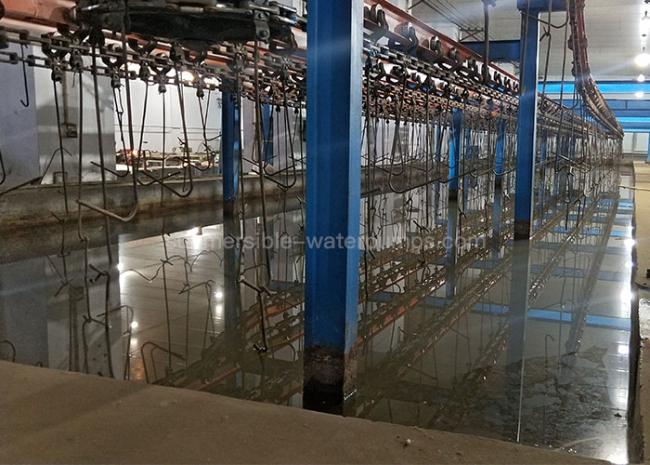

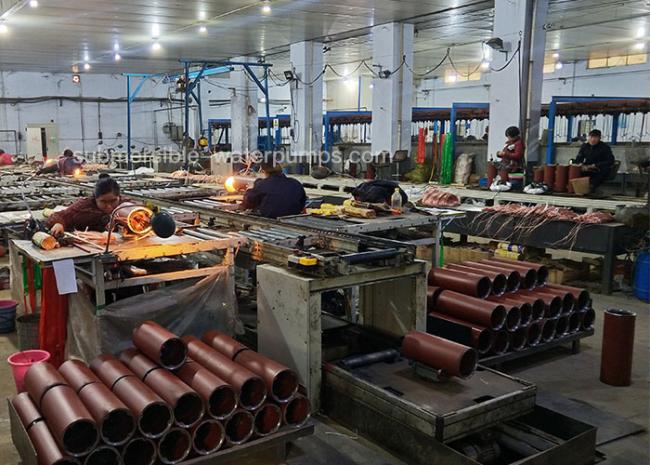

Submersible pump motor testing
In Shenlong pump factory, submersible pump motor wire could be re-winding, will be testing for 3 times in 2300v.
SUbmersible pump motor will be submerged in water for 48 hours to test leakage or not in third time.
With 23 years of submersible pump manufacture experience, we pride ourselves on knowing our customer needs, the markets we service, and offering a product line that leads the industry.
