20hp 100 Hp 120hp Multistage Water Pump 300m3/H For Deep Well Vertical Installation
Seawater submersible pump performance range:
1. Flow rate: 18-1200m3/h
2. Head rate: 12-410m
3. Motor power: 20hp 100 hp 120hp submersible pump
4. Voltage: 380v/460v/480v/600v/660v or As per request
5. Frequency: 3 phase 50hz/60hz
6. Pump material: stainless steel 304/316/316L/duplex stainless/super stainlesss steel/904L
20hp 100 hp 120hp seawater submersible pump parameter:
(stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v. Please kindly choose submersible pump type you are interested or contact us directly)
| Diameter | Model | Power | Flow range | Head range | |
| Inch (") | QJ type | kw | hp | m3/h | m |
| 8" | 200QJ20-148/11 | 15 | 20 | 18-22 | 126-170 |
| 8" | 200QJ25-126/9 | 15 | 20 | 23-27 | 100-145 |
| 8" | 200QJ32-91/7 | 15 | 20 | 29-35 | 73-108 |
| 8" | 200QJ40-78/6 | 15 | 20 | 37-43 | 67-93 |
| 8" | 200QJ50-60/4 | 15 | 20 | 46-54 | 48-72 |
| 8" | 200QJ63-56/4 | 15 | 20 | 58-68 | 48-65 |
| 8" | 200QJ80-44/4 | 15 | 20 | 74-86 | 37-50 |
| 8" | 200QJ100-30/2 | 15 | 20 | 80-120 | 26-32 |
| 10" | 250QJ50-60/3 | 15 | 20 | 46-54 | 51-69 |
| 10" | 250QJ50-320/16 | 75 | 100 | 46-54 | 272-368 |
| 10" | 250QJ50-340/17 | 75 | 100 | 46-54 | 315-375 |
| 10" | 250QJ50-360/18 | 90 | 120 | 46-54 | 330-390 |
| 10" | 250QJ50-380/19 | 90 | 120 | 46-54 | 350-410 |
| 10" | 250QJ63-260/13 | 75 | 100 | 58-68 | 220-299 |
| 10" | 250QJ63-300/15 | 90 | 120 | 58-68 | 205-343 |
| 10" | 250QJ80-40/2 | 15 | 20 | 74-86 | 34-46 |
| 10" | 250QJ80-200/10 | 75 | 100 | 74-86 | 170-230 |
| 10" | 250QJ80-220/11 | 90 | 120 | 74-86 | 190-250 |
| 10" | 250QJ80-240/12 | 90 | 120 | 74-86 | 204-276 |
| 10" | 250QJ100-36/2 | 15 | 20 | 80-120 | 32-42 |
| 10" | 250QJ100-162/9 | 75 | 100 | 80-120 | 140-189 |
| 10" | 250QJ100-198/11 | 90 | 120 | 80-120 | 170-231 |
| 10" | 250QJ125-128/8 | 75 | 100 | 116-134 | 109-147 |
| 10" | 250QJ125-144/9 | 90 | 120 | 116-134 | 124-164 |
| 10" | 250QJ125-160/10 | 90 | 120 | 116-134 | 136-184 |
| 10" | 250QJ140-120/8 | 75 | 100 | 130-150 | 104-137 |
| 10" | 250QJ140-135/9 | 90 | 120 | 130-145 | 114-156 |
| 10" | 250QJ160-105/7 | 75 | 100 | 148-172 | 90-120 |
| 10" | 250QJ160-120/8 | 90 | 120 | 148-172 | 102-138 |
| 12" | 300QJ200-80/4 | 75 | 100 | 186-214 | 68-92 |
| 12" | 300QJ200-100/5 | 90 | 120 | 186-214 | 85-115 |
| 12" | 300QJ240-66/3 | 75 | 100 | 223-257 | 56-76 |
| 12" | 300QJ300-60/3 | 75 | 100 | 279-321 | 51-69 |
| 12" | 300QJ400-40/1 | 75 | 100 | 368-432 | 38-42 |
| 14" | 350QJ250-75/3 | 90 | 120 | 233-267 | 72-78 |
| 16" | 400QJ400-50/1 | 90 | 120 | 460-540 | 38-42 |
| 18" | 450QJ1000-16/1 | 90 | 120 | 900-1200 | 12-20 |
Package: Shock absorption,moisture-proof package, standard export wooden case

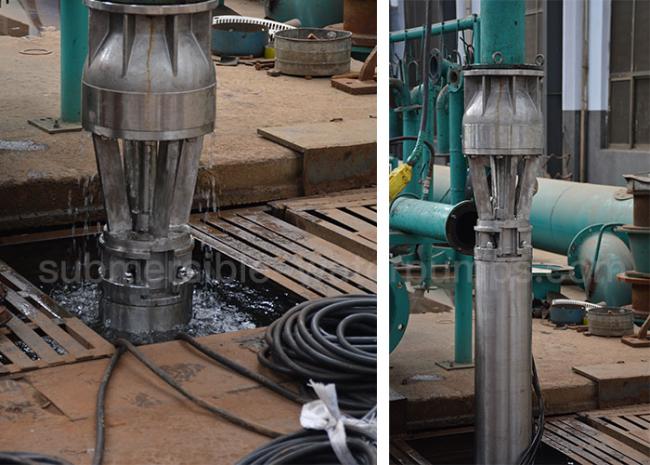

Testing: We test each submersible water pump before delivery, such as material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not. Also we could send testing video, testing pictures, testing report
