AC Motor High Capacity Water Pump Deep Well Water Pump 300m3h 400m3h ODM OEM
200m3h 250m3h 300m3h 400m3h submersible pump parameters:
(stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v. Please kindly choose submersible pump type you are interested or contact us directly.)
| Diameter | Model | Power | Flow | Head | |
| Inch (") | QJ type | kw | hp | m3/h | m |
| 10" | 200QJ160-150/10 | 110 | 150 | 186-214 | 128-170 |
| 12" | 300QJ200-20/1 | 18.5 | 25 | 186-214 | 17-23 |
| 12" | 300QJ200-30/1 | 25 | 35 | 186-214 | 27-33 |
| 12" | 300QJ200-40/2 | 37 | 50 | 186-214 | 35-45 |
| 12" | 300QJ200-60/3 | 55 | 75 | 186-214 | 51-69 |
| 12" | 300QJ200-80/4 | 75 | 100 | 186-214 | 68-92 |
| 12" | 300QJ200-100/5 | 90 | 120 | 186-214 | 85-115 |
| 12" | 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 |
| 12" | 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 |
| 12" | 300QJ240-44/2 | 45 | 60 | 223-257 | 37-51 |
| 12" | 300QJ240-66/3 | 75 | 100 | 223-257 | 56-76 |
| 12" | 300QJ240-88/4 | 100 | 135 | 223-257 | 75-101 |
| 12" | 300QJ240-110/5 | 100 | 135 | 223-257 | 95-125 |
| 12" | 300QJ300-20/1 | 25 | 35 | 279-321 | 17-23 |
| 12" | 300QJ300-40/2 | 55 | 75 | 279-321 | 35-45 |
| 12" | 300QJ300-60/3 | 75 | 100 | 279-321 | 51-69 |
| 12" | 300QJ300-80/4 | 110 | 150 | 279-321 | 68-92 |
| 12" | 300QJ400-40/1 | 75 | 100 | 368-432 | 38-42 |
| 12" | 300QJ400-80/2 | 160 | 220 | 368-432 | 76-84 |
| 12" | 300QJ400-120/3 | 220 | 300 | 368-432 | 117-123 |
| 14" | 350QJ250-25/1 | 30 | 40 | 233-267 | 22-28 |
| 14" | 350QJ250-50/2 | 63 | 85 | 233-267 | 47-53 |
| 14" | 350QJ250-75/3 | 90 | 120 | 233-267 | 72-78 |
| 14" | 350QJ250-100/4 | 125 | 170 | 233-267 | 95-105 |
| 14" | 350QJ250-125/5 | 160 | 220 | 233-267 | 120-130 |
| 14" | 350QJ320-20/1 | 30 | 40 | 305-335 | 18-22 |
| 14" | 350QJ320-30/1 | 45 | 60 | 305-335 | 28-32 |
| 14" | 350QJ320-40/2 | 63 | 85 | 305-335 | 38-42 |
| 14" | 350QJ320-60/2 | 90 | 120 | 305-335 | 57-63 |
| 14" | 350QJ320-90/3 | 140 | 190 | 305-335 | 85-95 |
| 14" | 350QJ320-120/4 | 185 | 250 | 305-335 | 115-125 |
| 16" | 400QJ400-50/1 | 90 | 120 | 388-416 | 48-52 |
200m3h 250m3h 300m3h 400m3h submersible pump performance range:
1. Head: 17-170m
2. Power: 18.5kw-220kw/25hp-300hp
3. Voltage: 380v/440v/460v/480v/600v/660v/1140v
4. Material: cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l
5. Applications: Clean water, seawater desalination,offshore,jack-up, floating dock,shipyard
Stock:

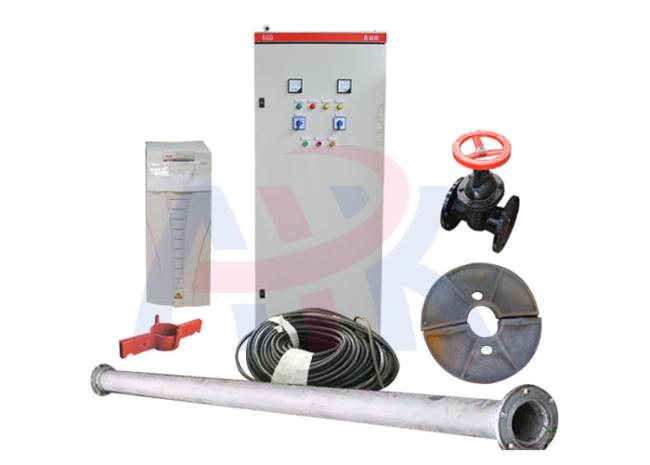

Submersible pump control cabinet, frequency converter, cable, valve.
