8 Inch 20hp 25hp Deep Well Submersible Pump Submersible Borehole Pumps
20hp 25hp submersible pump parameters:
(cast iron/ stainless steel 304/316/316l/duplex stainless/super stainless steel/ss904l and 380v/440v/480v/600v/ 660v/1140v.
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch (") |
QJ type |
kw |
hp |
m3/h |
m |
|
8" |
200QJ20-135/10 |
15 |
20 |
18-22 |
115-156 |
|
8" |
200QJ20-148/11 |
15 |
20 |
18-22 |
126-170 |
|
8" |
200QJ20-162/12 |
18.5 |
25 |
18-22 |
138-187 |
|
8" |
200QJ20-175/13 |
18.5 |
25 |
18-22 |
150-210 |
|
8" |
200QJ25-126/9 |
15 |
20 |
23-27 |
100-145 |
|
8" |
200QJ25-140/10 |
18.5 |
25 |
23-27 |
110-161 |
|
8" |
200QJ25-154/11 |
18.5 |
25 |
23-27 |
138-184 |
|
8" |
200QJ32-91/7 |
15 |
20 |
29-35 |
73-108 |
|
8" |
200QJ32-96/6 |
15 |
20 |
29-35 |
77-115 |
|
8" |
200QJ32-104/8 |
18.5 |
25 |
29-35 |
84-125 |
|
8" |
200QJ32-112/7 |
18.5 |
25 |
29-35 |
90-132 |
|
8" |
200QJ32-117/9 |
18.5 |
25 |
29-35 |
94-140 |
|
8" |
200QJ40-78/6 |
15 |
20 |
37-43 |
67-93 |
|
8" |
200QJ40-91/7 |
18.5 |
25 |
37-43 |
78-108 |
|
8" |
200QJ40-104/8 |
18.5 |
25 |
37-43 |
89-124 |
|
8" |
200QJ50-60/4 |
15 |
20 |
46-54 |
48-72 |
|
8" |
200QJ50-65/5 |
15 |
20 |
46-54 |
52-78 |
|
8" |
200QJ50-75/5 |
18.5 |
25 |
46-54 |
60-90 |
|
8" |
200QJ50-78/6 |
18.5 |
25 |
46-54 |
63-93 |
|
8" |
200QJ63-56/4 |
15 |
20 |
58-68 |
48-65 |
|
8" |
200QJ80-44/4 |
15 |
20 |
74-86 |
37-50 |
|
8" |
200QJ80-55/5 |
18.5 |
25 |
74-86 |
47-63 |
|
8" |
200QJ100-30/2 |
15 |
20 |
80-120 |
26-32 |
8 inch submersible pump performance range:
1.Diameter: 8 inch submersible pump
2. Flow: 13m3/h-120m3/h
3. Head: 12m-465m
4. Power: 15kw 18.5kw 20hp 25hp
5. Voltage: 380v/400v/440v/460v/480v/600v/660v/1140v
6. Material: cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l
7. Temperature: <120℃

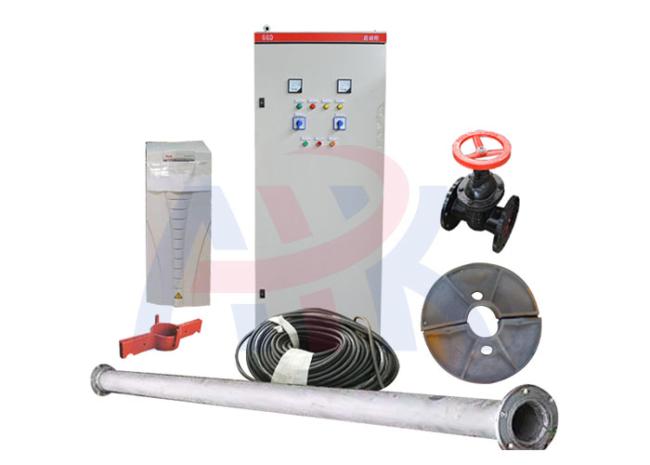

We also manufacture water pump accessories, such as pump control cabinet, frequency converter, cable, valve. If you are interested, please contact us

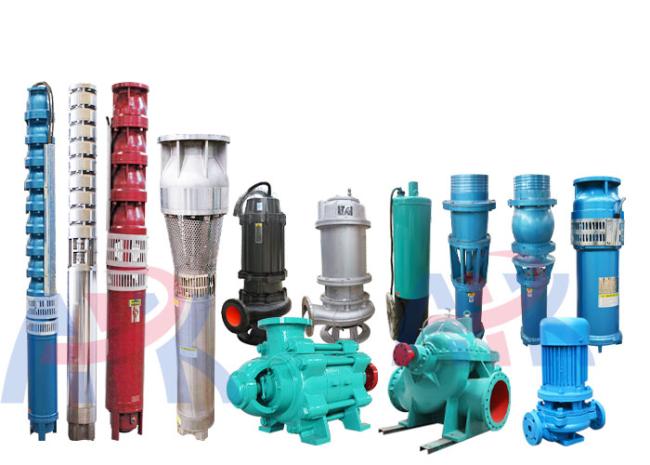

Shenlong (APK) pump factory mainly manufactures submersible pump¢rifugal pump, drawing sea water, salt water, clean water, sewage water, hot water. Vertical or horizontal install.
