Multistage Electric Submersible Water Pump For Agriculture Irrigation 40m3h 10 Hp 15kw
40m3h 10 hp 15kw Multistage Electric Water Submersible Pump For Agriculture Irrigation
10 hp 15kw submersible pump parameters:
(cast iron or stainless steel 304/316/316l/duplex stainless/ super duplex stainless steel/ ss904L and 380v/440v/480v/600v/660v or as per request)
| Diameter | Model | Power | Flow Range | Head Range | |
| Inch (") | QJ Series | kw | hp | m3/h | m |
| 7" | 175QJ10-121/9 | 7.5 | 10 | 9-11 | 96-140 |
| 7" | 175QJ10-255/18 | 15 | 20 | 9-11 | 245-265 |
| 7" | 175Q25-65/5 | 7.5 | 10 | 23-27 | 53-76 |
| 7" | 175QJ25-130/10 | 15 | 20 | 23-27 | 110-150 |
| 7" | 175QJ50-36/3 | 7.5 | 10 | 46-54 | 28-42 |
| 7" | 175QJ50-72/6 | 15 | 20 | 46-54 | 60-82 |
| 8" | 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 |
| 8" | 200QJ20-148/11 | 15 | 20 | 18-22 | 126-170 |
| 8" | 200QJ32-52/4 | 7.5 | 10 | 29-35 | 42-62 |
| 8" | 200QJ32-96/6 | 15 | 20 | 29-35 | 77-115 |
| 8" | 200QJ40-78/6 | 15 | 20 | 37-43 | 67-93 |
| 8" | 200QJ50-30/2 | 7.5 | 10 | 46-54 | 24-36 |
| 8" | 200QJ50-65/5 | 15 | 20 | 46-54 | 52-78 |
| 8" | 200QJ63-28/2 | 7.5 | 10 | 58-68 | 24-33 |
| 8" | 200QJ100-30/2 | 15 | 20 | 80-120 | 26-32 |
| 10" | 250QJ50-33/2 | 7.5 | 10 | 46-54 | 28-38 |
| 10" | 250QJ50-60/3 | 15 | 20 | 46-54 | 51-69 |
| 10" | 250QJ100-36/2 | 15 | 20 | 80-120 | 32-42 |
10 hp 15kw submersible pump performance range:
1. Diameter: 7 8 10 inch submerisble pump
2. Flow: 9-120m3/h
3. Head: 24m-265m
4. Power: 10 hp 15kw 20hp submersible water pump
5. Voltage: 380v/420v/440v/460v/480v/600v/660v or as per request
6. Material: cast iron or stainless steel 304/316/316l/duplex stainless steel/super duplex stainless steel/904l
7. Applicaitons: clean water,seafood factory, seawater desalination,offshore,jack-up, floating dock,shipyard

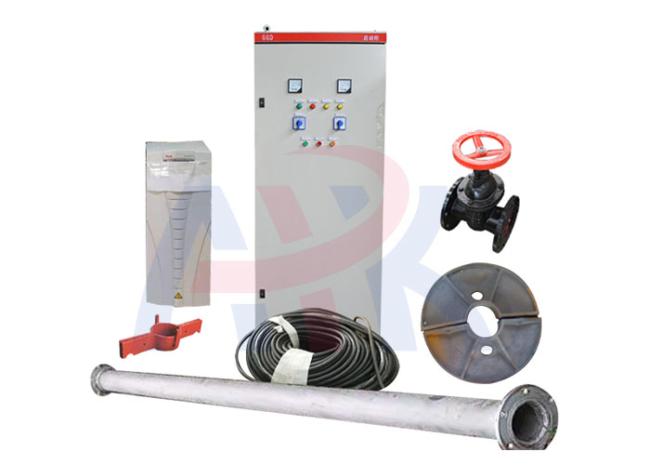

Submersible water pump accessories:
APK pump factory not only manufacturer submersible pump and centrifugal water pump, also we manufacture matched pump accessories, including control cabinet, frequency converter, cable, valve.
FAQ:
What is your MOQ?
Our MOQ is 1 piece
Are you a water pump manufacturer or water pump supplier?
APK pump is a ODM OEM competitive reputable water pump manufacturer.
How to select a submersible pump type?
Application: clean water, sewage waste water, sea water
Material: cast iron/stainless steel 304/316/316L/duplex stainless/904L(sole pump manufacturer in China)
Flow rate
Head lift
Horsepower (hp) or kilowatts (kw)
Voltage and frequency: 380v/440v/480v/600v/660v/1140v.......3 phase 50hz/60hz
Attached pump accessories: cable length, control cabinet, frequency converter, valve.
How many horsepower is a submersible well pump?
7.5kw-220kw are in stock, 220kw-410kw (special order) in APK pump factory.
What are stages in submersible pump?
Submersible pump stages refer to pump impeller numbers.
What is a submersible pump used for?
Water supply, such as drawing water from well/borehole, sea water, desalination, dirty water, flood protection and drainage, irrigation, fountain projects, river, lake.
