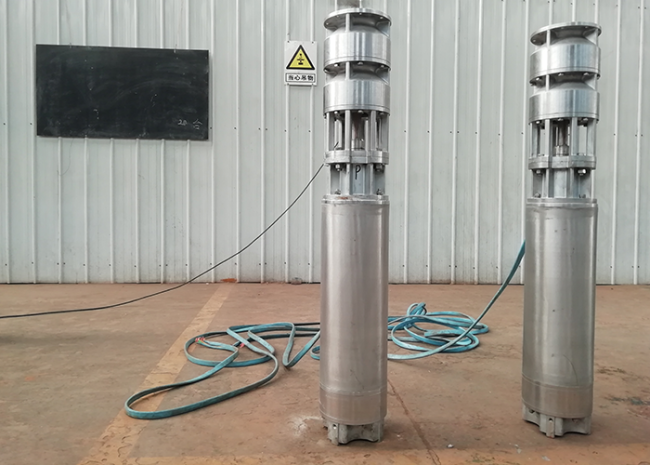

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump
Agricultural Spray 20Hp 25Hp 30Hp 40Hp 380V Centrifugal Water Borewell Submersible Pump
water submersible pump performance range:
* Flow: 9-540m3/h
* Lift: 14-325m
* Power: 15kw 18.5kw 22kw 30kw well submersible pump
* Voltage: 380v 440v 660v 1140v or as per request
* Frequency: 3 phase 50hz/60hz
20hp 25hp 30hp 40hp water submersible pump parameters:
600v/660v/1140v. If you would like to know more, please kindly contact us)
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch(") |
QJ type |
kw |
hp |
m3/h |
m |
|
7" |
175QJ10-240/17 |
15 |
20 |
9-11 |
230-250 |
|
7" |
175QJ20-143/11 |
15 |
20 |
18-22 |
120-165 |
|
7" |
175QJ25-117/9 |
15 |
20 |
23-27 |
100-135 |
|
7" |
175QJ32-108/9 |
15 |
20 |
29-35 |
82-123 |
|
7" |
175QJ40-84/7 |
15 |
20 |
37-43 |
71-96 |
|
7" |
175QJ50-72/6 |
15 |
20 |
46-54 |
60-82 |
|
8" |
200QJ20-135/10 |
15 |
20 |
18-22 |
115-156 |
|
8" |
200QJ20-175/13 |
18.5 |
25 |
18-22 |
150-210 |
|
8" |
200QJ20-202/15 |
22 |
30 |
18-22 |
172-232 |
|
8" |
200QJ20-283/21 |
30 |
40 |
18-22 |
240-325 |
|
8" |
200QJ25-126/9 |
15 |
20 |
23-27 |
100-145 |
|
8" |
200QJ25-154/11 |
18.5 |
25 |
23-27 |
138-184 |
|
8" |
200QJ25-182/13 |
22 |
30 |
23-27 |
150-210 |
|
8" |
200QJ25-252/18 |
30 |
40 |
23-27 |
210-290 |
|
8" |
200QJ32-96/6 |
15 |
20 |
29-35 |
77-115 |
|
8" |
200QJ32-112/7 |
18.5 |
25 |
29-35 |
90-132 |
|
8" |
200QJ32-144/9 |
22 |
30 |
29-35 |
123-172 |
|
8" |
200QJ32-195/15 |
30 |
40 |
29-35 |
166-225 |
|
8" |
200QJ40-78/6 |
15 |
20 |
37-43 |
67-93 |
|
8" |
200QJ40-104/8 |
18.5 |
25 |
37-43 |
89-124 |
|
8" |
200QJ40-117/9 |
22 |
30 |
37-43 |
94-140 |
|
8" |
200QJ40-169/13 |
30 |
40 |
37-43 |
144-201 |
|
8" |
200QJ50-60/4 |
15 |
20 |
46-54 |
48-72 |
|
8" |
200QJ50-78/6 |
18.5 |
25 |
46-54 |
63-93 |
|
8" |
200QJ50-91/7 |
22 |
30 |
46-54 |
73-110 |
|
8" |
200QJ50-135/9 |
30 |
40 |
46-54 |
119-162 |
|
8" |
200QJ63-56/4 |
15 |
20 |
58-68 |
48-65 |
|
8" |
200QJ63-70/5 |
22 |
30 |
58-68 |
60-82 |
|
8" |
200QJ63-112/8 |
30 |
40 |
58-68 |
93-131 |
|
8" |
200QJ100-30/2 |
15 |
20 |
80-120 |
26-32 |
|
8" |
200QJ100-45/3 |
22 |
30 |
80-120 |
42-47 |
|
8" |
200QJ100-60/4 |
30 |
40 |
80-120 |
58-62 |
|
10" |
250QJ50-60/3 |
15 |
20 |
46-54 |
51-69 |
|
10" |
250QJ50-80/4 |
18.5 |
25 |
46-54 |
68-92 |
|
10" |
250QJ50-140/7 |
30 |
40 |
46-54 |
119-161 |
|
10" |
250QJ125-32/2 |
18.5 |
25 |
116-134 |
27-37 |
|
10" |
250QJ160-30/2 |
22 |
30 |
148-172 |
25-35 |
|
12" |
300QJ500-15/1 |
30 |
40 |
460-540 |
14-16 |
|
14" |
350QJ250-25/1 |
30 |
40 |
233-267 |
22-28 |
|
14" |
350QJ320-20/1 |
30 |
40 |
305-335 |
18-22 |
Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well
250m3/h 70m 75kw 100hp 440v 60hz stainless steel 316L submersible sea water lift pump in Singapore
APK pump factory not only manufacture water pumps, but also manufacture match pump accessories, including pump control cabinet, frequency converter(ABB or as per request), cable, valve.
Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption, moisture-proof package.
FAQ:
1. What's your MOQ?
one piece
2. What's your deliver method?
Sea freight, express, airplane
3. What's your payment?
T/T
