AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty
10hp 15hp 20hp 30hp 40hp open well submersible water pumps 3 phase borehole water submersible pump
water submersible pump performance range:
* Pump diameter: 7 8 10 12 14 inch water submersible pump
* Flow: 9-540m3/h
* Lift: 14-325m
* Power: 15kw 18.5kw 22kw 30kw well submersible pump
* Voltage: 380v 440v 660v 1140v or as per request
* Frequency: 3 phase 50hz/60hz
10hp 15hp 25hp 30hp 40hp water submersible pump parameters:
600v/660v/1140v. If you would like to know more, please kindly contact us)
| Diameter | Model | Power | Flow range | Head range | |
| Inch(") | QJ type | kw | hp | m3/h | m |
| 7" | 175QJ10-121/9 | 7.5 | 10 | 9-11 | 96-140 |
| 7" | 175QJ10-180/13 | 11 | 15 | 9-11 | 173-187 |
| 7" | 175QJ15-80/6 | 7.5 | 10 | 13-17 | 64-96 |
| 7" | 175QJ20-104/8 | 11 | 15 | 18-22 | 89-120 |
| 7" | 175QJ25-65/5 | 7.5 | 10 | 23-27 | 53-76 |
| 7" | 175QJ25-91/7 | 11 | 15 | 23-27 | 75-105 |
| 7" | 175QJ32-48/4 | 7.5 | 10 | 29-35 | 40-56 |
| 7" | 175QJ32-72/6 | 11 | 15 | 29-35 | 60-80 |
| 7" | 175QJ40-36/3 | 7.5 | 10 | 37-43 | 28-42 |
| 7" | 175QJ40-60/5 | 11 | 15 | 37-43 | 50-70 |
| 7" | 175QJ50-36/3 | 7.5 | 10 | 46-54 | 28-42 |
| 7" | 175QJ50-48/4 | 11 | 15 | 46-54 | 40-56 |
| 8" | 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 |
| 8" | 200QJ20-162/12 | 18.5 | 25 | 18-22 | 138-187 |
| 8" | 200QJ20-202/15 | 22 | 30 | 18-22 | 172-232 |
| 8" | 200QJ20-270/20 | 30 | 40 | 18-22 | 230-310 |
| 8" | 200QJ25-56/4 | 7.5 | 10 | 23-27 | 45-67 |
| 8" | 200QJ25-84/6 | 11 | 15 | 23-27 | 67-100 |
| 8" | 200QJ25-154/11 | 18.5 | 25 | 23-27 | 138-184 |
| 8" | 200QJ32-48/3 | 7.5 | 10 | 29-35 | 38-58 |
| 8" | 200QJ32-112/7 | 18.5 | 25 | 29-35 | 90-132 |
| 8" | 200QJ32-130/10 | 22 | 30 | 29-35 | 108-155 |
| 8" | 200QJ40-45/3 | 7.5 | 10 | 37-43 | 32-48 |
| 8" | 200QJ40-104/8 | 18.5 | 25 | 37-43 | 89-124 |
| 8" | 200QJ50-30/2 | 7.5 | 10 | 46-54 | 24-36 |
| 8" | 200QJ50-75/5 | 18.5 | 25 | 46-54 | 60-90 |
| 8" | 200QJ63-28/2 | 7.5 | 10 | 58-68 | 24-33 |
| 8" | 200QJ80-22/2 | 7.5 | 10 | 74-86 | 19-25 |
| 8" | 200QJ80-55/5 | 18.5 | 25 | 74-86 | 47-63 |
| 8" | 200QJ100-15/1 | 7.5 | 10 | 80-120 | 12-16 |
| 8" | 200QJ100-60/4 | 30 | 40 | 80-120 | 58-62 |
| 10" | 250QJ50-33/2 | 7.5 | 10 | 46-54 | 28-38 |
| 10" | 250QJ50-80/4 | 18.5 | 25 | 46-54 | 68-92 |
| 10" | 250QJ50-120/6 | 30 | 40 | 46-54 | 102-138 |
| 10" | 250QJ63-40/2 | 11 | 15 | 58-68 | 34-46 |
| 10" | 250QJ80-20/1 | 7.5 | 10 | 74-86 | 17-23 |
| 10" | 250QJ100-18/1 | 7.5 | 10 | 80-120 | 16-21 |
| 10" | 250QJ125-32/2 | 18.5 | 25 | 116-134 | 27-37 |
| 10" | 250QJ140-30/2 | 18.5 | 25 | 130-150 | 26-34 |
| 12" | 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 |
| 12" | 300QJ500-15/1 | 30 | 40 | 460-540 | 14-16 |
| 14" | 350QJ250-25/1 | 30 | 40 | 233-267 | 22-28 |
| 14" | 350QJ320-20/1 | 30 | 40 | 305-335 | 18-22 |
Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well
Customer case:

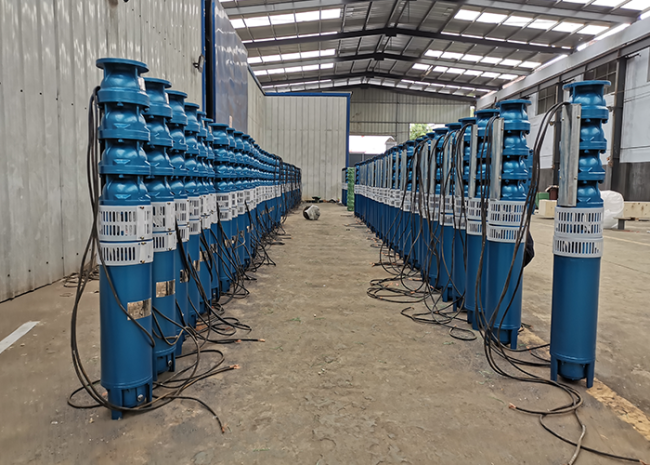

40m3/h 36m 7.5kw 10hp 80 pieces water submersible pump to Kazakhstan
APK pump factory not only manufacture water pumps, but also manufacture match pump accessories, including pump control cabinet, frequency converter(ABB or as per request), cable, valve.
Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption, moisture-proof package.
FAQ:
1. What's your MOQ?
one piece
2. What's your deliver method?
Sea freight, express, airplane
3. What's your payment?
T/T
