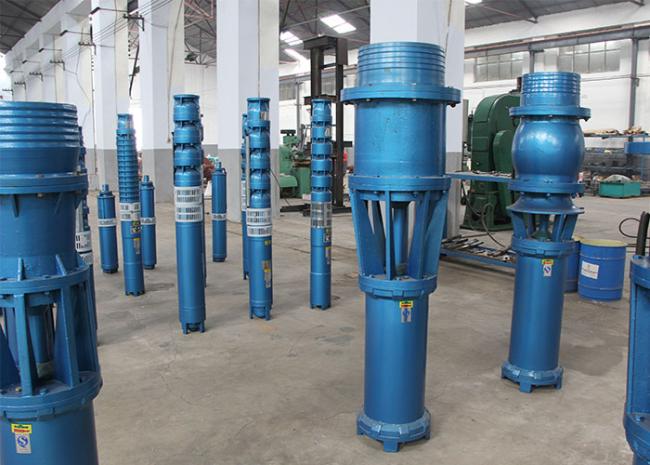

AC Motor 125kw 200m3/h 300m3/h 800m3/h 12" Deep Well Submersible Pump Capacity
Material:
1.Impeller: Cast iron HT200,or stainless steel
2.Pump bowl: Cast iron HT200,or stainless steel,such as ss304 ss3016
3.Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
4.Motor Seal: Rubber O-ring seal ,mechanical seal
5.Motor regulating sleeve: rubber
Features:
1.Its motor and water pump assembly into one, with simple structure
2.convenient installation remove
3.cover an area small, easy to use and maintain
4.safe and reliable operation
5.no water pollute
Submersible Water Pump Overview:
1. Diameter: 10 12 inch submersible pump
2. Flow: 125m3/h 140m3/h 160m3/h 200m3/h
3. Head: 13-220m
4. Power: 9.2kw-125kw
5. Voltage: 380v/440v/480v/600v/660v
6. Material: Cast iron/SS304/SS316/SS316L/duplex stainless/904L
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch(") |
QJ type |
kw |
hp |
m3/h |
m |
|
10" |
250QJ125-16/1 |
9.2 |
13 |
116-134 |
13-17 |
|
10" |
250QJ125-32/2 |
18.5 |
25 |
116-134 |
26-34 |
|
10" |
250QJ125-48/3 |
25 |
35 |
116-134 |
40-56 |
|
10" |
250QJ125-64/4 |
37 |
50 |
116-134 |
54-73 |
|
10" |
250QJ125-80/5 |
45 |
60 |
116-134 |
68-92 |
|
10" |
250QJ125-96/6 |
55 |
75 |
116-134 |
82-110 |
|
10" |
250QJ125-112/7 |
63 |
85 |
116-134 |
95-128 |
|
10" |
250QJ125-128/8 |
75 |
100 |
116-134 |
109-147 |
|
10" |
250QJ125-144/9 |
90 |
120 |
116-134 |
124-164 |
|
10" |
250QJ125-160/10 |
90 |
120 |
116-134 |
136-184 |
|
10" |
250QJ125-176/11 |
100 |
135 |
116-134 |
150-202 |
|
10" |
250QJ125-192/12 |
110 |
150 |
116-134 |
163-220 |
|
10" |
250QJ140-15/1 |
9.2 |
13 |
130-150 |
13-17 |
|
10" |
250QJ140-30/2 |
18.5 |
25 |
130-150 |
26-34 |
|
10" |
250QJ140-45/3 |
30 |
40 |
130-145 |
40-52 |
|
10" |
250QJ140-60/4 |
37 |
50 |
130-150 |
52-69 |
|
10" |
250QJ140-75/5 |
45 |
60 |
130-145 |
65-86 |
|
10" |
250QJ140-105/7 |
63 |
85 |
130-145 |
91-120 |
|
10" |
250QJ140-120/8 |
75 |
100 |
130-150 |
104-137 |
|
10" |
250QJ140-150/10 |
100 |
135 |
130-150 |
130-171 |
|
10" |
250QJ140-165/11 |
110 |
150 |
143-188 |
158-162 |
|
10" |
250QJ140-180/12 |
125 |
170 |
130-145 |
156-205 |
|
10" |
250QJ160-30/2 |
22 |
30 |
148-172 |
25-35 |
|
10" |
250QQJ160-45/3 |
30 |
40 |
148-172 |
38-51 |
|
10" |
250QJ160-60/4 |
45 |
60 |
148-172 |
52-69 |
|
10" |
250QJ160-105/7 |
75 |
100 |
148-172 |
90-120 |
|
10" |
250QJ160-120/8 |
90 |
120 |
148-172 |
102-138 |
|
10" |
250QJ160-135/9 |
100 |
135 |
148-172 |
115-155 |
|
10" |
250QJ160-150/10 |
110 |
50 |
186-214 |
128-170 |
|
12" |
300QJ200-20/1 |
18.5 |
25 |
186-214 |
17-23 |
|
12" |
300QJ200-40/2 |
37 |
50 |
186-214 |
35-45 |
|
12" |
300QJ200-80/4 |
75 |
100 |
186-214 |
68-92 |
|
12" |
300QJ200-100/5 |
90 |
120 |
186-214 |
85-115 |
|
12" |
300QJ200-120/6 |
110 |
150 |
186-214 |
100-138 |
