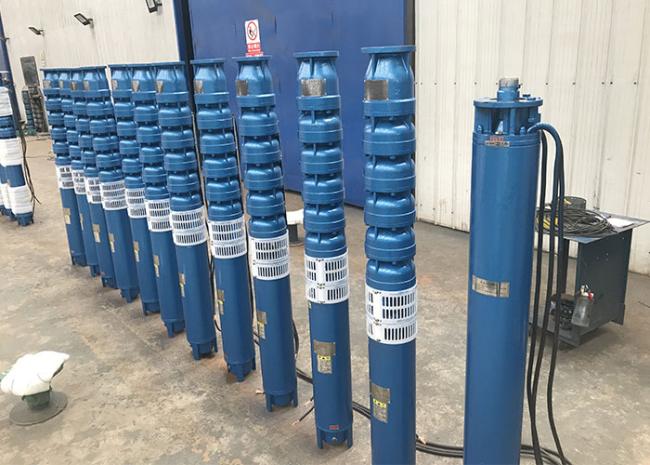

75hp 8 Inch 55kw Centrifugal Water Deep Well Submersible Pump
high output 75hp 8 inch 55kw centrifugal tube well pump deep well submersible water pumps for wells
Material:
Impeller: Cast iron HT200,or stainless steel Pump
bowl: Cast iron HT200,or stainless steel,such as ss304 ss3016
Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
Motor Seal: Rubber O-ring seal ,mechanical seal
Motor regulating sleeve: rubber
|
Diameter |
Model |
Motor Power |
Flow range |
Head range |
|
|
Inch (") |
QJ Series |
kw |
hp |
m3/h |
m |
|
8" |
200QJ15-81/6 |
7.5 |
10 |
13-17 |
68-92 |
|
8" |
200QJ20-189/14 |
22 |
30 |
18-22 |
160-217 |
|
8" |
200QJ20-230/17 |
25 |
35 |
18-22 |
195-265 |
|
8" |
200QJ20-338/25 |
37 |
50 |
18-22 |
287-388 |
|
8" |
200QJ20-351/26 |
45 |
60 |
18-22 |
298-403 |
|
8" |
200QJ25-154/11 |
18.5 |
25 |
23-27 |
138-184 |
|
8" |
200QJ25-168/12 |
22 |
30 |
23-27 |
140-195 |
|
8" |
200QJ25-308/22 |
37 |
50 |
23-27 |
260-355 |
|
8" |
200QJ32-176/11 |
30 |
40 |
29-35 |
148-203 |
|
8" |
200QJ32-182/14 |
30 |
40 |
29-35 |
154-210 |
|
8" |
200QJ32-234/18 |
37 |
50 |
29-35 |
199-270 |
|
8" |
200QJ32-273/21 |
45 |
60 |
29-35 |
232-313 |
|
8" |
200QJ40-104/8 |
18.5 |
25 |
37-43 |
89-124 |
|
8" |
200QJ40-117/9 |
22 |
30 |
37-43 |
94-140 |
|
8" |
200QJ40-130/10 |
25 |
35 |
37-43 |
114-155 |
|
8" |
200QJ40-169/13 |
30 |
40 |
37-43 |
144-201 |
|
8" |
200QJ40-182/14 |
37 |
50 |
37-43 |
154-214 |
|
8" |
200QJ40-195/15 |
37 |
50 |
37-43 |
166-232 |
|
8" |
200QJ40-234/18 |
45 |
60 |
37-43 |
206-277 |
|
8" |
200QJ50-45/3 |
10 |
14 |
46-54 |
36-54 |
|
8" |
200QJ50-52/4 |
13 |
8 |
46-54 |
42-62 |
|
8" |
200QJ50-104/8 |
25 |
35 |
46-54 |
84-124 |
|
8" |
200QJ50-135/9 |
30 |
40 |
46-54 |
119-162 |
|
8" |
200QJ50-143/11 |
37 |
50 |
46-54 |
121-165 |
|
8" |
200QJ50-169/13 |
37 |
0 |
46-54 |
143-195 |
|
8" |
200QJ50-195/13 |
45 |
60 |
46-54 |
165-225 |
|
8" |
200QJ50-195/15 |
45 |
60 |
46-54 |
165-225 |
|
8" |
200QJ63-28/2 |
7.5 |
10 |
58-68 |
24-33 |
|
8" |
200QJ63-84/6 |
25 |
35 |
58-68 |
72-96 |
|
8" |
200QJ63-98/7 |
30 |
40 |
58-68 |
84-114 |
|
8" |
200QJ63-112/8 |
30 |
0 |
58-68 |
93-131 |
|
8" |
200QJ63-126/9 |
37 |
50 |
58-68 |
100-147 |
|
8" |
200QJ63-140/10 |
45 |
60 |
58-68 |
120-164 |
|
8" |
200QJ63-154/11 |
45 |
60 |
58-68 |
130-180 |
|
8" |
200QJ80-33/3 |
13 |
18 |
74-86 |
28-37 |
|
8" |
200QJ80-44/4 |
15 |
20 |
74-86 |
37-50 |
|
8" |
200QJ100-15/1 |
7.5 |
10 |
80-120 |
12-16 |
|
8" |
200QJ100-45/3 |
22 |
30 |
80-120 |
42-47 |
|
8" |
200QJ100-60/4 |
30 |
40 |
80-120 |
58-62 |
|
8" |
200QJ100-105/7 |
45 |
60 |
80-120 |
102-107 |
8 inch water submersible pump performance range:
1.Diameter: 8 inch submersible pumpp
2.Flow: 13m3/h-120m3/h
3.Head: 12m-465m
4.Power: 2.2kw-63kw; 3hp-85hp
5.Voltage: 380v/440v/460v/480v/600v/660v/1140v
6.Material: Cast iron/SS304/SS316/SS316L/duplex stainless/super duplex stainless steel/SS90L
Applications:
1.various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water
2.industrial and supply and drainage system of civil building
3.draining water in hills or mountainous area
4.diversion in low-lying areas
5.urban and rural industrial and mining enterprises water supply
6.Seawater desalination,offshore,jack-up, floating dock,shipyard
Features:
1.Its motor and water pump assembly into one, with simple structure
2.convenient installation remove
3.cover an area small, easy to use and maintai
4.safe and reliable operation
5.no water pollute
