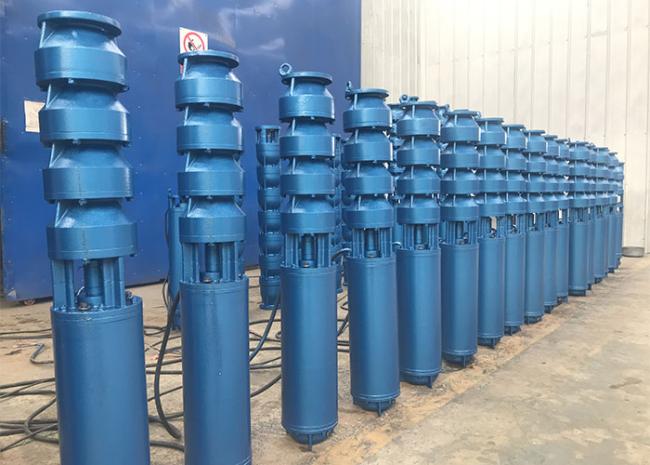

Submersible Pumps 3 Phase 120m3/H 20hp Water Deep Bore Well Submersible Pump
High Volume 10hp 15hp 20hp 100m China 3 Phase Deep Well Submersible Water Pump
Deep Well Submersible Pump Applicable scope:
- Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
- Motor must be filled with clean water.
- The first stage of the impellers of the pump should be immersed at least 2m under dynamic water level. The pumping unit shall not be deeper than 70m under static water level. The bottom of motor shall be at least 3m above well bottom.
- Water temperature no higher than 20 ℃.
- Sand content of the water (by quality) not more than 0.01%.
- Water PH 6.5~8.5.
- The content of hydrogen sulfide in water not more than 1.5 mg/l.
- The content of chloridion in water shall not be higher than 400mg/l.
- The water source shall yield enough water for the pump to work continuously.
10hp 15hp 20hp submersible water pump parameters:
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch(") |
QJ type |
kw |
hp |
m3/h |
m |
|
7" |
175QJ10-121/9 |
7.5 |
10 |
9-11 |
96-140 |
|
7" |
175QJ10-180/13 |
11 |
15 |
9-11 |
173-187 |
|
7" |
175QJ10-255/18 |
15 |
20 |
9-11 |
245-265 |
|
7" |
175QJ15-80/6 |
7.5 |
10 |
13-17 |
64-96 |
|
7" |
175QJ20-104/8 |
11 |
15 |
18-22 |
89-120 |
|
7" |
175QJ20-130/10 |
15 |
20 |
18-22 |
110-150 |
|
7" |
175QJ25-65/5 |
7.5 |
10 |
23-27 |
53-76 |
|
7" |
175QJ25-91/7 |
11 |
15 |
23-27 |
75-105 |
|
7" |
175QJ25-117/9 |
15 |
20 |
23-27 |
100-135 |
|
7" |
175QJ32-48/4 |
7.5 |
10 |
29-35 |
40-56 |
|
7" |
175QJ32-72/6 |
11 |
15 |
29-35 |
60-80 |
|
7" |
175QJ32-96/8 |
15 |
20 |
29-35 |
82-110 |
|
7" |
175QJ40-36/3 |
7.5 |
10 |
37-43 |
28-42 |
|
7" |
175QJ40-60/5 |
11 |
15 |
37-43 |
50-70 |
|
7" |
175QJ40-84/7 |
15 |
20 |
37-43 |
71-96 |
|
7" |
175QJ50-36/3 |
7.5 |
10 |
46-54 |
28-42 |
|
7" |
175QJ50-48/4 |
11 |
15 |
46-54 |
40-56 |
|
7" |
175QJ50-72/6 |
15 |
20 |
46-54 |
60-82 |
|
8" |
200QJ15-81/6 |
7.5 |
10 |
13-17 |
68-92 |
|
8" |
200QJ20-135/10 |
15 |
20 |
18-22 |
115-156 |
|
8" |
200QJ25-56/4 |
7.5 |
10 |
23-27 |
45-67 |
|
8" |
200QJ25-84/6 |
11 |
15 |
23-27 |
67-100 |
|
8" |
200QJ25-126/9 |
15 |
20 |
23-27 |
100-145 |
|
8" |
200QJ32-48/3 |
7.5 |
10 |
29-35 |
38-58 |
|
8" |
200QJ32-96/6 |
15 |
20 |
29-35 |
77-115 |
|
8" |
200QJ40-45/3 |
7.5 |
10 |
37-43 |
32-48 |
|
8" |
200QJ40-78/6 |
15 |
20 |
37-43 |
67-93 |
|
8" |
200QJ50-30/2 |
7.5 |
10 |
46-54 |
24-36 |
|
8" |
200QJ50-65/5 |
15 |
20 |
46-54 |
52-78 |
|
8" |
200QJ63-28/2 |
7.5 |
10 |
58-68 |
24-33 |
|
8" |
200QJ63-56/4 |
15 |
20 |
58-68 |
48-65 |
|
8" |
200QJ80-22/2 |
7.5 |
10 |
74-86 |
19-25 |
|
8" |
200QJ80-44/4 |
15 |
20 |
74-86 |
37-50 |
|
8" |
200QJ100-15/1 |
7.5 |
10 |
80-120 |
12-16 |
|
8" |
200QJ100-30/2 |
15 |
20 |
80-120 |
26-32 |
|
10" |
250QJ50-33/2 |
7.5 |
10 |
46-54 |
28-38 |
|
10" |
250QJ50-60/3 |
15 |
20 |
46-54 |
51-69 |
|
10" |
250QJ63-40/2 |
11 |
15 |
58-68 |
34-46 |
|
10" |
250QJ80-20/1 |
7.5 |
10 |
74-86 |
17-23 |
|
10" |
250QJ80-40/2 |
15 |
20 |
74-86 |
34-46 |
|
10" |
250QJ100-18/1 |
7.5 |
10 |
80-120 |
16-21 |
|
10" |
250QJ100-36/2 |
15 |
20 |
80-120 |
32-42 |
10hp 15hp 20hp water submersible pump performance range:
1. Flow: 9-120m3/h
2. Head: 12-265m
3. Power: 7.5kw 11kw 15kw
4. Voltage: 380v/440v/480v/600v/660v/1140v
5. Material: cast iron or stainless steel 304/316/316l/duplex stainless/super duplex stainless steel/904l
Applications:
various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water
industrial and supply and drainage system of civil building
draining water in hills or mountainous area
diversion in low-lying areas
urban and rural industrial and mining enterprises water supply
Seawater desalination,offshore,jack-up, floating dock,shipyard
Features:
Its motor and water pump assembly into one, with simple structure
convenient installation remove
cover an area small, easy to use and maintain
safe and reliable operation
no water pollute
6. FAQ
1) Q: Do you accept OEM?
A: Yes, we do.
2) Q: What's your delivery time?
A: It's according to the quantity of the order. Normally it is between 5 and 20 days.
3) Q: What's your production capacity?
A: About 1200 pieces per month.
4) Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, or customized if it is acceptable.
5) Q: Do you provide a free sample?
A: Samples for testing are available, but not free. MOQ is 1 set.
6) Q: What pump accessories do you offer?
A: Yes, including control panel, frequency conveter, valve, cables
