800m3/H 1800m3h 5.4m 10m 18.5kw 75kw Axial Flow Water Submersible Pump
800m3/h 1100m3/h 1800m3h 5.4m 10m 15m 18.5kw 75kw Axial Flow Water Submersible Pump
Axial mixed flow water submersible pump are our main types, including 450m3/h 800m3/h 1100m3/h 1800m3/h 3000m3/h 5.4m 6m 8m 10m 12m 15m 18.5kw 25hp 37kw 50hp 75kw 100hp axial mixed flow water submersible pumps, vertical or horizontal install submerged in water, widely applied pumping clean water from river, lake and so on.
It's a Russia customer case as below: axial flow water submersible pump 300QSZ800-5.4 to Russia for pumping clean water in fish farm, 300mm outlet diameter 800 cubic meters per hour and 5.4 head meters 18.5kw 25hp submersible pump.

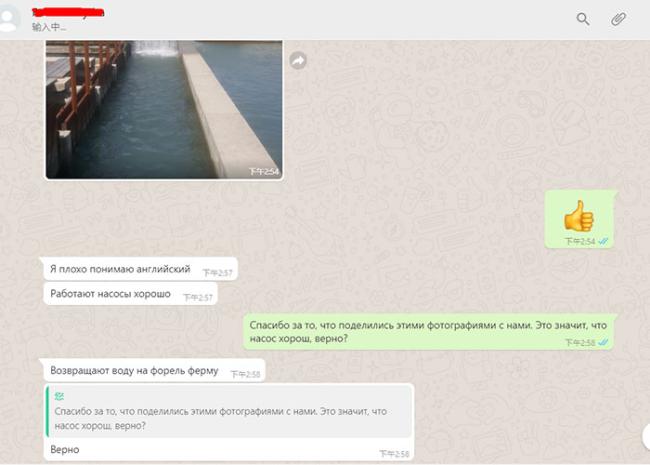

Russia customer axial flow water submersible pump feedback:
Axial flow water submersible pump models(If you are interested, please kindly inquiry):
| Discharge Dia | Model | Flow range | Head range | Power |
| mm | QSZ type | m3/h | m | kw |
| 200 | QSZ300-6-10 | 300 | 6 | 10 |
| 250 | QSZ500-5-13 | 500 | 5 | 13 |
| 350 | QSZ800-3-13 | 800 | 3 | 13 |
| 400 | QSZ1000-3-18.5 | 1000 | 3 | 18.5 |
| 350 | QSZ1100-10-45 | 1100 | 10 | 45 |
| 500 | QSZ1500-4-22 | 1500 | 4 | 22 |
| 500 | QSZ1250-5-30 | 1250 | 5 | 30 |
| 550 | QSZ1600-4-30 | 600 | 4 | 30 |
| 550 | QSZ2100-3-30 | 2100 | 3 | 30 |
| 550 | QSZ1600-5-37 | 1600 | 5 | 37 |
| 550 | QSZ2000-4-37 | 2000 | 4 | 37 |
| 650 | QSZ2500-3-37 | 2500 | 3 | 37 |
| 550 | QSZ1900-5-45 | 1900 | 5 | 45 |
| 650 | QSZ2400-4-45 | 2400 | 4 | 45 |
| 750 | QSZ3000-3-45 | 3000 | 3 | 45 |
| 500 | QSZ1800-10-75 | 1800 | 10 | 75 |
Axial flow water submersible pump specifications:
1. Outlet diameter: φ150mm φ350mm φ500mm φ600mm φ700mm
2. Capacity: 450m3/h 800m3/h 1100m3/h 1800m3/h 3000m3/h submersible pump
3. Head: 3 4 5 6 10 12 15 m submersible pump
4. Motor power: 10kw 18.5kw 22kw 30kw 45kw 75kw submersible pump
5. Voltage: 380v/460v/480v or As per request
6. Material: Cast iron/Stainless steel 304 316 316L
FAQ:
1. What's MOQ ?
----MOQ is 1 pcs.
2. How to get price for electric water aixal flow submersible pump?
----Please message your axial flow submersible pump requirements if you know according to your local site, so that we could quote price asap.
As you know, we are a pump factory, hundreds of electric water aixal flow submersible pump models to quote price. Like you order goods in ebay, to know what you want.
----One most important thing to quote price: a name card with your email and Whatsapp, address(to quote shipping cost).
