60hp 100hp 66m 110m 200m3/H 240m3/H 12 Inch Electric Submersible Pump
50hp 60hp 75hp 100hp 110hp 66m 110m 200m3/h 240m3/h Vertical 12 Inch Electric Submersible Pump Price
Deep well vertical multistage electric submersible pump driven by electric submersible motor, submersible pump set is working submerged in water fully, vertical install. SUbmersible pump motor is fully filling clean water before running. Our deepth is under water in 120m.
12 inch submersible pump overview:
| Product: 12 inch submersible pump |
| Flow rate: 200m3/h 240m3/h 300m3/h electric submersible pump |
| Head meters: 30m 40m 60m 66m 80m 88m 100m 110m 120m electric submersible pump |
| Voltage: 380v 420v 440v 460v 480v 660v submersible pump |
| Material: cast iron/stainless steel 304 316 316L 904L |
| MOQ: 1 |
| Price: please inquiry your submersible pump requirements, then we quote. |
Electric submersible pump applications:
| Cast iron submersible pump: clean water; cheaper |
| Stainless steel submersible pump: clean water and sea water, salt water, anti corrosive; expensive |

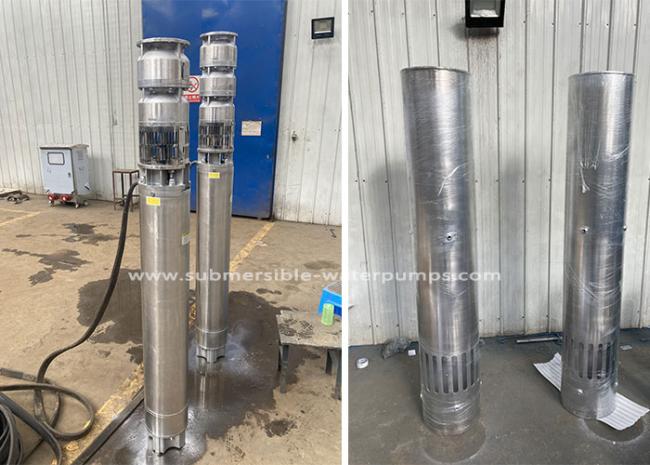

Stainless steel submersible pump set has: SS304, SS316, SS316L, Duplex stainless steel and SS904L, mainly for electric submersible pump, which is working in sea water, salt water, offeshore, jack-up, shipyard, we have to choose stainless steel submersible pump, anti corrosion. Also, we have stainless steel submersible pump with motor sleeve to protecting submersible motor.
1. Submersible motor: stainless steel
2. Impeller: SS304, SS316, SS316L, SS904L
3. Pump shaft: SS304, SS316, SS316L, SS904L
12 inch submersible pump models:
| Pump Diameter | Model | Power | Flow | Head | Outlet size | |
| Inch (") | QJ type | kw | hp | m3/h | m | " |
| 12" | 300QJ200-20/1 | 18.5 | 25 | 186-214 | 17-23 | 6" |
| 12" | 300QJ200-30/1 | 25 | 35 | 186-214 | 27-33 | 6" |
| 12" | 300QJ200-40/2 | 37 | 50 | 186-214 | 35-45 | 6" |
| 12" | 300QJ200-60/3 | 55 | 75 | 186-214 | 51-69 | 6" |
| 12" | 300QJ200-80/4 | 75 | 100 | 186-214 | 68-92 | 6" |
| 12" | 300QJ200-100/5 | 90 | 120 | 186-214 | 85-115 | 6" |
| 12" | 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 | 6" |
| 12" | 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 | 6" |
| 12" | 300QJ240-44/2 | 45 | 60 | 223-257 | 37-51 | 6" |
| 12" | 300QJ240-66/3 | 75 | 100 | 223-257 | 56-76 | 6" |
| 12" | 300QJ240-88/4 | 100 | 135 | 223-257 | 75-101 | 6" |
| 12" | 300QJ240-110/5 | 100 | 135 | 223-257 | 95-125 | 6" |
| 12" | 300QJ300-20/1 | 25 | 35 | 279-321 | 17-23 | 6" |
| 12" | 300QJ300-40/2 | 55 | 75 | 279-321 | 35-45 | 6" |
| 12" | 300QJ300-60/3 | 75 | 100 | 279-321 | 51-69 | 6" |
| 12" | 300QJ300-80/4 | 110 | 150 | 279-321 | 68-92 | 6" |
| 12" | 300QJ300-100/5 | 140 | 190 | 279-321 | 96-104 | 6" |
| 12" | 300QJ300-120/6 | 160 | 220 | 279-321 | 115-125 | 6" |
| 12" | 300QJ300-140/7 | 185 | 250 | 279-321 | 134-146 | 6" |
| 12" | 300QJ300-160/8 | 220 | 300 | 279-321 | 153-167 | 6" |
APK overview :
APK is a professional ODM OEM electric submersible pump manufacturer in China since 1996, got CE, ABS and ISO. Whether you are a trading company, distributor, end users, project planning or tender, we have professional sale team and technical team to service.
