120m3/h 50m 150mm Discharge 55kw 75hp Sewage Submersible Pump Dirty Water to Vietnam

1. Sewage submersible pump specifications to Vietnam:

1. Sewage submersible pump set material: cast iron; however, stainless steel impeller

2. Cutter reamer stainless steel

3. Flow rate: 120m3/h

4. Head meters: 50m

5. Discharge diameter: DN 150mm

2. Sewage submersible pump applications:

Submersible sewage pump is widely used in industry, agriculture, mining, civil construction, municipal environmental protection and other places, it is the ideal equipment for pumping mud, mortar, domestic wastewater, sewage feces and urine, and containing short fiber, paper, sand and other solid particles and rural drainage irrigation river pond silt.

3. Submersible sewage pump types: It can be customized with 304/316 stainless steel type, high temperature resistent type and cutting impeller type.

4. Sewage submersible pump models:

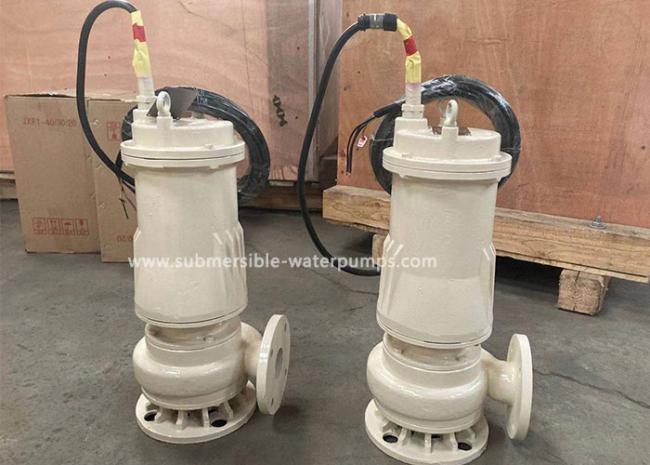

Submersible sewage pump with special color image:

5. Submersible Sewage Pump Working Conditions

Proper medium: liquids with chemical property similar to pure water should be non-corrosive. Solid size should be no larger than 30% of the pump suction diameter. Fiber length should not be over 2.5 times of the pump suction diameter. When the medium density is more than 1.05, the motor power should be increased accordingly to prevent the motor from overload operation.

6. Sewage submersible pump charactistics:

The submersible sewage pump (hereinafter referred to as the electric pump) consists of three parts: motor, pump and seal.The motor is located at the upper part of the electric pump, which is a three-phase asynchronous motor. The alloy double-end mechanical seal is used between the pump and the motor.This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump uses special structure impeller and new mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with traditional impellers, the new ones (spiral-flow type or double-leaf type) have an excellent delivery capacity, which improves the pump performance. It runs more smoothly without any vibration.

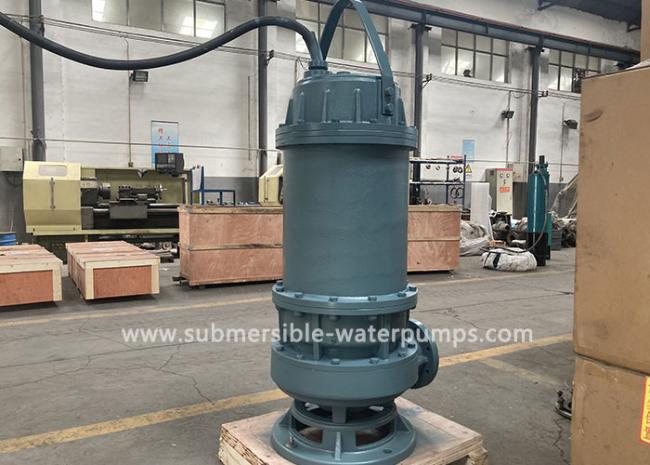

Submersible water pump factory showing:

APK is a professional ODM OEM electric sewage submersible pump manufacturer in China since 1996, got CE, ABS and ISO. Whether you are a trading company, distributor, end users, project planning or for a tender, we have professional sale team and technical team to service.
