Vessel Shipboard 440v 60hz 120m3 Stainless Steel 316 Submersible Pump
Vessel Shipboard 440v 60hz 120m3 40 Meters SS316 Submersible Pump
An inquiry from UAE drilling company on 25th, March, 2021, quote a submersible pump that one vessel has 415V 50HZ power supply, the other vessel has 440V 60 HZ power supply. So we will need 2 quotes for 120m3 pump with 40 meters head. With 60 meter cable. Shaft to be duplex material.
They would like to build a skid that will mount the “fixed” manual fire monitor with control panel and davit for launching the submersible pump. They offered design files about saddle. The pump will be free hanging in the water vertically. The hose saddle is for the wire rope to hold the pump suspended in the ocean.
All details had been approved, we chose one suitable submersible pump and sent a formal quotation.
| Model |
250QJH120-40-25kw |
| Flow rate | 120m3/hr |
| Head meters | 4 bar |
| Motor power | 25kw |
| Power supply | 3phase 415v 50hz; 3 phase 440v 60hz |
| Pump dia | 230mm |
| Out let dia | 100mm |
| Pump material | SS316 |
|
Saddle |
SS316 material, one side DN100 flange |
| Cables |
Including 60m 3*10m EPR insulated shipboard power cables without joints. |
Kindly note:

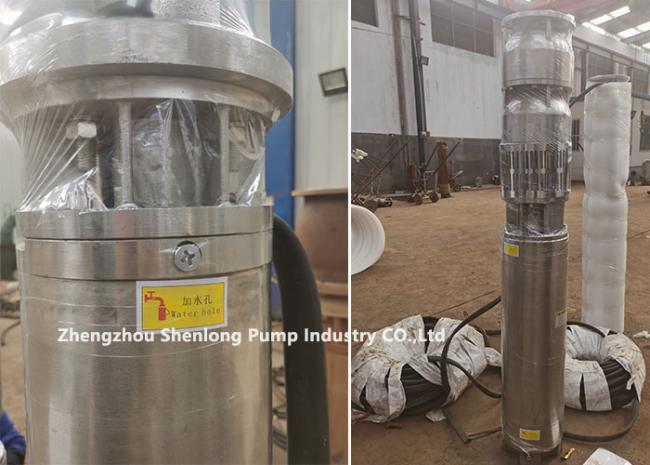

1. Motor cavity MUST BE fill with clean water before the pump testing, installation and during working;
2. DO NOT use the cable as sling when install, should wear ropes on the handle;
3. The first stage impeller should go down the water level;
4. After shut down the power, should wait for more than 3mins when restart the pump;
5. When the pump finish work, it’s better to cut off the power.
120m3/hr water submersible pump models:
(Notice:flow rate, head meters, power supply, material, ODM OEM is available)
| Pump Model | Power | Flow rate | Head meters | Outlet dia | |
| QJ type | kw | hp | m3/h | m | Inch(") |
| 250QJ125-16/1 | 9.2 | 13 | 125 | 16 | 5" |
| 250QJ125-32/2 | 18.5 | 25 | 125 | 32 | 5" |
| 250QJ125-48/3 | 25 | 35 | 125 | 48 | 5" |
| 250QJ125-64/4 | 37 | 50 | 125 | 64 | 5" |
| 250QJ125-80/5 | 45 | 60 | 125 | 80 | 5" |
| 250QJ125-96/6 | 55 | 75 | 125 | 96 | 5" |
| 250QJ125-112/7 | 63 | 85 | 125 | 112 | 5" |
| 250QJ125-128/8 | 75 | 100 | 125 | 128 | 5" |
| 250QJ125-144/9 | 90 | 120 | 125 | 144 | 5" |
| 250QJ125-160/10 | 90 | 20 | 125 | 160 | 5" |
| 250QJ125-176/11 | 100 | 35 | 125 | 176 | 5" |
| 250QJ125-192/12 | 110 | 150 | 125 | 192 | 5" |
ABS Class approval as below:
Why choose us?
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
6. CE; ISO; ABS
FAQ
Q:How long is warranty?
A:About 24 months.
Q:How long is production lead time?
A:Depends on quantity, the normal small amount production is about 10-25 days.
Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
