WLT Series Stainless Steel Flow Drainage Fountain Pumps Submersible Wear Resistance
WLT series large flow drainage pump
l Strong pump structure, dry motor, double group mechanical seal, good waterproof, impeller diversion device, smooth water flow, long-term operation and use, pump waterproof grade meets IP68;
l Centrifugal, axial flow, oblique flow impeller design, low head, large flow, low energy consumption in line with economic benefits
l Impeller bronze material, is an excellent grade of copper material, both seawater corrosion resistance and wear resistance, sand wear least.
Application:
- Aquaculture fisheries, agricultural irrigation, drainage of low-lying areas
- Sewage treatment project, landscape waterfall water
- Best equipment for hydraulic engineering
- Large water supply and drainage for other purposes
WLT series large flow drainage pump manufacture part

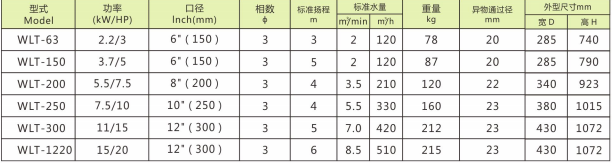

WLT series large flow drainage pump main specification:
| Medium | Temperature | 0~40℃ | |
| Medium | Agricultural irrigation, aquaculture water, river water. | ||
| Maximum depth in use | 30m | ||
| Pump | Structure | Impeller | 3HP,5HP:Centrifugal type;7.5HP,10HP:axial-flow type;15HP,20HP:Inclined flow |
| Seal |
|
||
| Bearing | Deep groove ball bearing | ||
| Material | outer cover | Stainless steel | |
| On the inside cover | Cast iron | ||
| Housing | Cast iron | ||
| Impeller | bronze | ||
| sealed chamber | Cast iron | ||
| bearing pedestal | Cast iron | ||
| Motor | Type | Dry submersible | |
| Pole | 4P | ||
| insulation | F | ||
| frequency | 50HZ | ||
| Material | Motor case | Stainless steel | |
| Cable | H07RN-F | ||
WLT 300 large flow drainage fountain pumps tested for Australian customer:
