IP65 AC220V SMD2835 Rigid LED Strip Lights Waterproof Bar Aluminum Magnesium Material

Price Negotiable
Price: Negotiable
MOQ: 500
Delivery Time: Negotiable
Brand: SUNLED
Product Description

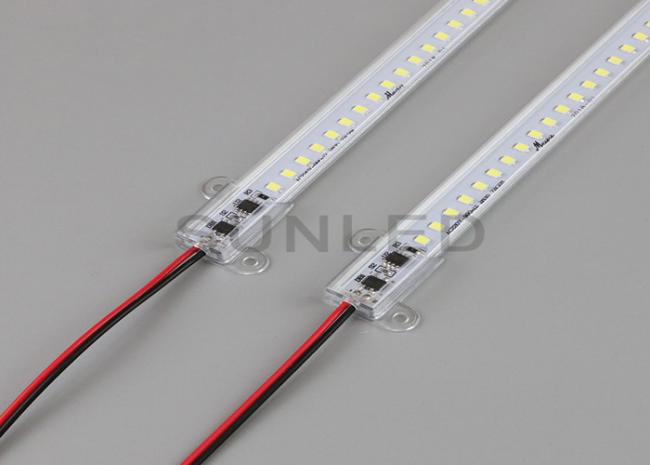

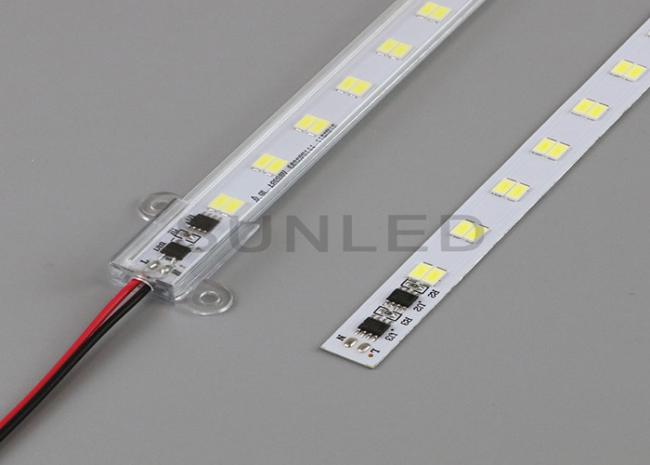

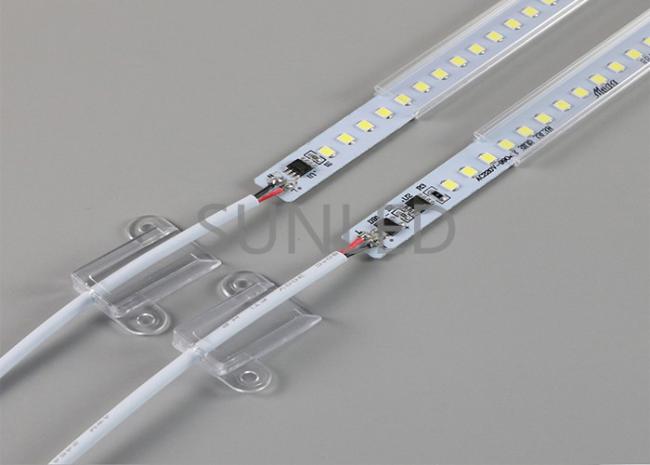

220V High Quality IP65 AC220V SMD2835 Waterproof LED rigid light bar





Feature:

1. Driverless(no need connect power supply);

2. Waterproof ,misty , transparent,milk cover optional;

3. The voltage is stable;

4. Low consumption,generate the same luminance only with 6% power consumption as a
traditional lamp;

5. Meanwhile lamp beads which also integrates a capacitive resistance, so that electronic components do not need to be on board the auxiliary light bar, thus increasing the stability of the product;

6. Long life span,no filament structure,no heating more than six years for normal use;

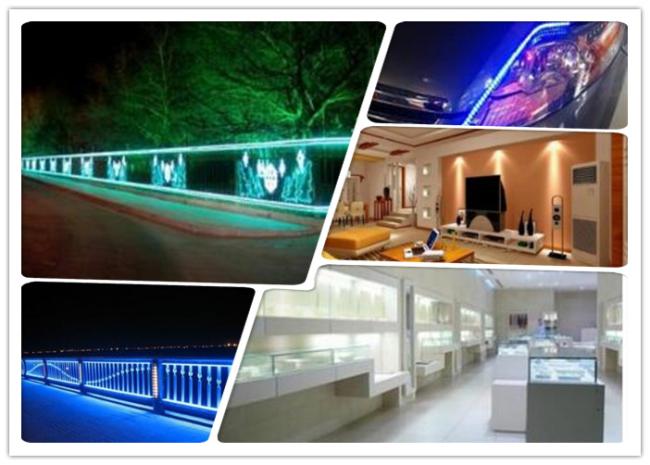

Application:

Home, Hotels,Meeting rooms,Offices,Commercial Purposes,Institution Buildings,Schools,
Hospitals, Places where energy saving and high color rendering index lightings required.





Advantage:

1. LED Strip light source with long life span, 50000 hours;

2. LED Strip light source  benefit to  environment protection;

3. LED Strip light source is safe and with high reliability;

4. LED Strip light source with high luminous efficiency









Parameter: Item No.: SL-XS-2835-60P SL-XS-2835-120P SL-XS-2835-180P
Strip Size(±0.2mm): H6.5XW11mm H6.5XW13.3mm H7.5XW16mm
PCB Size: W=5mm W=6.4mm W=10mm
Wire Type: Aluminum+Magnesium
Alloy wire 0.18*20pcs=0.5mm²
Aluminum+Magnesium
Alloy wire 0.18*20pcs=0.5mm²
Aluminum+Magnesium
Alloy wire 0.18*20pcs=0.5mm²
LED Type: SMD2835/0.2W/18-20LM/pcs
(Against sulfurization)
SMD2835/0.2W/18-20LM/pcs
(Against sulfurization)
SMD2835/0.2W/18-20LM/pcs
(Against sulfurization)
LED Q'ty/M: 60LED/M 120LED/M 180LED/M
LED Chip: 3A Chip 3A Chip 3A Chip
CRI.: Ra=70-80 Ra=70-80 Ra=70-80
Luminous Flux/M: 200LM/M
(Actual measurement value)
500LM/M
(Actual measurement value)
800LM/M
(Actual measurement value)
Power(±0.5W): 4W/M 5W/M 10W/M
Power Factor: PF=0.93 PF=0.93 PF=0.93
Input Volt.:   AC220V/240V/110V,50-60Hz AC220V/240V/110V,50-60Hz
Insulation Strength: >4MΩ >4MΩ >4MΩ
Electrical Strength: 3750V 3750V 3750V
IP Rating: IP65 IP65 IP65
Cutting Unit: 1 Meter 1 Meter 1 Meter
LED Color: W(6000-7000K)
WW(2800-3200K)
W(6000-7000K)
WW(2800-3200K)
W(6000-7000K)
WW(2800-3200K)
Packing Detail: 50M/Roll/Ctn
32X32X17cm/G.W: 7.0KG
50M/Roll/Ctn
32X32X17cm/G.W: 7.5KG
50M/Roll/Ctn
32X32X17cm/G.W: 13.0KG
