Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet
Competitive Price Wood Plastic Composite Pellet Extruder Bimetallic Twin Screw Barrel
1 . Description
We manufacture screw shafts for co-rotating twin screw extruders ranging from 10 mm to 120 mm and over. Our manufacturing specializes in shafts for twin screw extruders and is optimized for flexible order handling.
2 . Co-rotating twin screw shafts for
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Our Main Materials and Their Application:
For Wear Application:
Tool Steel: W6Mo5Cr4V2
PM-HIP Materials: SAM10, SAM26, SAM39, CPM10V, CPM9V
For Corrosion Application:
Nitrided Steel: 38CrMoAlA
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
For Wear & Corrosion Application:
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
Other Materials: 316L HC276 etc.
|
Standard Barrel Parameter Table (selection table) |
|||
|
Model |
Size(mm) W*H*L |
Hole Diameter(mm) |
Distance(mm) |
|
BM-20 |
115*105*132 |
φ23 |
18.4 |
|
BM-30 |
135*115*120 |
φ30.6 |
26 |
|
BM-35 |
140*120*140 |
φ36 |
30 |
|
BM-36 |
160*140*150 |
φ36 |
30 |
|
BM-40 |
175*145*160 |
φ41.6 |
34.5 |
|
BM-50 |
190*150*190 |
φ51 |
42 |
|
BM-52 |
200*155*210 |
φ52 |
43 |
|
BM-53 |
210*160*220 |
φ53.3 |
48 |
|
BM-58 |
220*175*240 |
φ58 |
48 |
|
BM-60 |
210*170*240 |
φ60 |
52 |
|
BM-65 |
210*170*240 |
φ63 |
52 |
|
BM-75 |
260*200*290 |
φ71.8 |
60 |
|
BM-85 |
280*215*320 |
φ81.9 |
67.8 |
|
BM-92 |
310*240*360 |
φ92 |
78 |
|
BM-95 |
310*240*360 |
φ94 |
78 |
|
BM-110 |
330*240*420 |
φ109 |
91.5 |
|
BM-125 |
390*290*500 |
φ125 |
98 |
|
BM-135 |
370*300*410 |
φ134 |
110 |

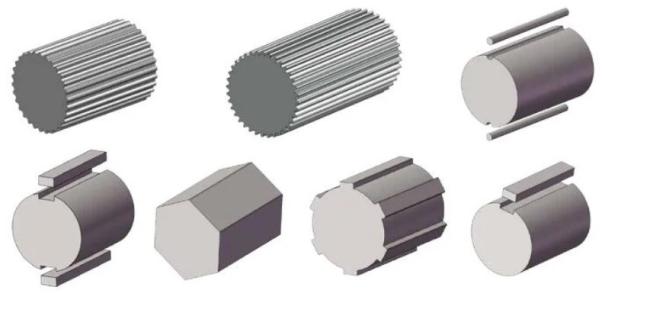

3 . Types of shaft
* Single Keyway * Square Keyslot *High torque key button * Dual keyslot
* Involute inner spline * Round keyslot *Retackle spline * Client's requirements available
4 . We offer a broader choice of materials:
* 40CrNiMo * WR15E * WR30
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
5 . Our machine types:
Co-rotating parallel twin screw pelletizing extruders
Single screw pelletizing extruders
Die face cut (air cooling) pelletizing extruders
Double stage / double degassing recycling extruders
Crushers,mixers,storage tanke,vibrators,granulators,blowers
Extruder spare parts

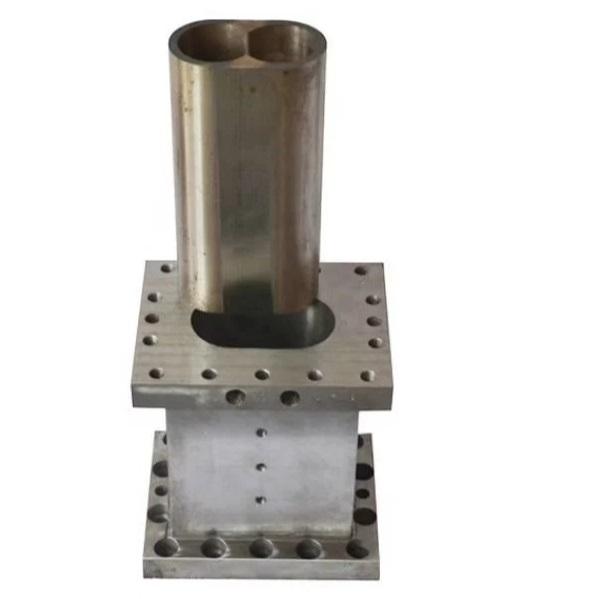

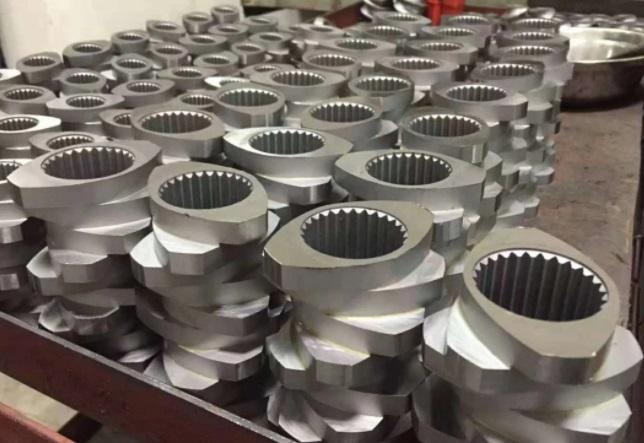

6 . Pictures:
