Copper Laminated Flexible Shunts Spot Welding Gun Accessory Parts Durable Copper Soft Connector Custom Laminated Shunt

Price Negotiable

Price: Negetation

MOQ: 1 pc

Delivery Time: 15 to 30 days

Brand: BLM

Product Description

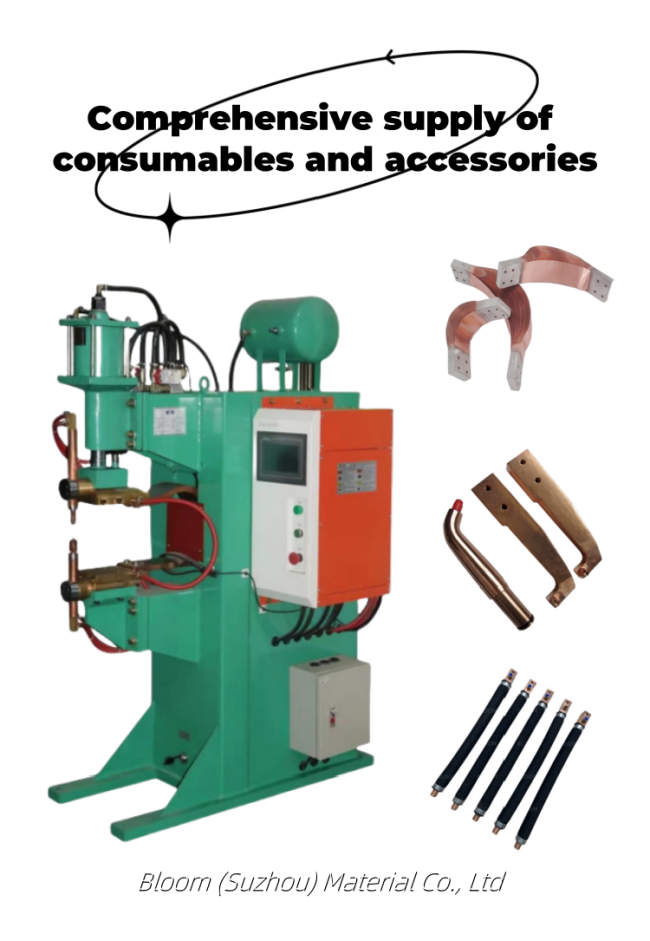

Copper Laminated Flexible Shunts for Spot Welding

High-quality custom laminated copper shunts designed for spot welding machines and resistance welding applications. These flexible connectors provide superior conductivity and durability for industrial welding processes.

Product Specifications

Product Name	Flexible Copper Connection
Design	Customized to Customer Requirements

Key Features

Constructed from multiple thin layers of high-conductivity electrolytic copper
Press-welded at both ends using advanced polymer diffusion welding technology
Available in various configurations: F-type (straight), L/J-shape, C-shape, V-shape
Customizable copper foil thickness: 0.1mm, 0.2mm, 0.5mm or to specification
Contact surface options: Galvanized or silver-plated as required

Technical Specifications

For A > 90mm, B > 60mm: Contact surface paste copper (1mm thick) pressure welding process
For A > 140mm, B > 130mm: Brazing process recommended

Ordering Information

When ordering, please specify:

Shunt type: F (Straight), C (180°), J/L (90°), or V (45°)
Copper foil/sheet thickness
Overall shunt thickness
Shunt width and length
Hole specifications (diameter, pattern, quantity, location)

Available Construction Types

Press-Weld
Swaged
Riveted
Solder Dipped ends
Copper Clips or Plates

Industrial Applications

Resistance and spot welding machines
Electrolytic processes and plating
Furnace and induction furnace applications
ISO-Phase Bus systems
Plasma equipment
Switchgear and transformers
Telecommunication equipment
Fuel cells and rectifiers

Our laminated copper shunts are precision-engineered to meet your specific machine requirements and welding parameters, ensuring optimal performance and longevity in demanding industrial environments.
