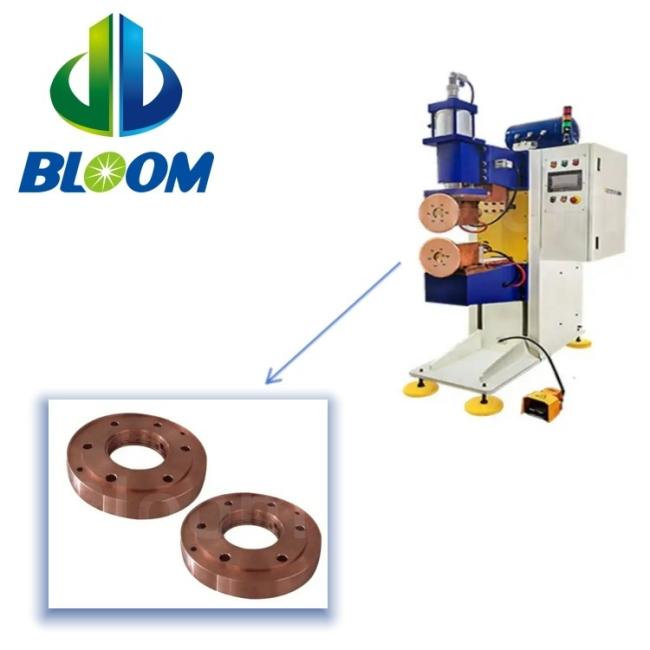

CuCrZr Copper Alloy Seam Welding Wheel for Resistance Seam Welding Machine
The CuCrZr copper alloy seam welding wheel is designed for resistance seam welding machines used in metal sheet welding applications. With excellent electrical conductivity, high hardness and superior wear resistance, it ensures stable welding performance and long service service life.
This welding wheel is widely used in industries such as automotive fuel tank manufacturing, steel drum production, radiator welding and stainless steel sheet welding. The wheel electrode can maintain consistent welding quality during continuous seam welding operations.
Our copper alloy welding wheels are manufactured with high precision machining and strict quality control. Customized dimensions and profiles are available according to customer drawings or samples to meet different welding requirements.
The welding wheel functions as the electrode component in seam welding machines. While similar to spot welding equipment, seam welding machines utilize rotating electrode wheels instead of rod electrodes, enabling continuous or interval discharge welding along seams.
| Product Name | Electrode Wheel |
|---|---|
| Material | CuCrZr / BeCu |
| Color | Coppery |
| Design | Customized to customer requirements |
The copper alloy electrode wheel applies pressure and conducts electrical current to create welds between metal surfaces. Copper alloy is selected for its exceptional properties:
- Excellent electrical conductivity for efficient current transfer
- High thermal conductivity for effective heat dissipation
- Superior wear resistance for extended service life
The round electrode disc ensures even pressure distribution and optimal electrical contact, creating consistent, continuous welds along the entire seam length.
Follow these steps for proper seam welding with electrode wheels:
- Setup Preparation: Ensure proper installation of electrode wheel and disconnect power before adjustments
- Material Preparation: Clean metal surfaces thoroughly to remove contaminants
- Parameter Adjustment: Set appropriate current, speed, and pressure settings
- Alignment: Position metal components with seam properly aligned under electrode wheel
- Welding Operation: Rotating wheel applies pressure while conducting electrical current
- Quality Monitoring: Continuously inspect weld quality and adjust parameters as needed
- Post-Welding: Allow cooling, inspect for defects, and perform necessary treatments
- Maintenance: Clean and inspect wheel regularly, replacing when worn or damaged
- High electrical conductivity for efficient current transfer
- Excellent wear resistance for longer service life
- Stable welding performance during continuous seam welding
- Precision machining ensures accurate dimensions
- Custom sizes and profiles available
- Suitable for high-speed resistance welding machines
Copper alloy seam welding wheels are widely used in resistance welding applications, including:
- Automotive fuel tank welding
- Steel drum manufacturing
- Radiator production
- Stainless steel sheet welding
- Metal container welding
- Resistance seam welding machines
FAQ
Q1: What material is commonly used for seam welding wheels?
A: CuCrZr copper alloy is widely used because it provides excellent electrical conductivity, wear resistance and mechanical strength.
Q2: Can you produce customized welding wheels?
A: Yes. We can manufacture welding wheels according to customer drawings, samples or technical specifications.
Q3: What industries use seam welding wheels?
A: Seam welding wheels are commonly used in automotive manufacturing, steel drum production, radiator welding and metal container fabrication.
Q4: What is the typical lead time?
A: Production time usually ranges from 15 to 25 days depending on order quantity and customization requirements.
