Custom Wear Resistant Bimetallic Screw Barrel Liner for Twin Screw Barrel Extruder
Price:
Negetation
MOQ:
2 pcs
Delivery Time:
30~60days
Brand:
BLM
Product Description
Extruder Screw and Barrel
Product Description

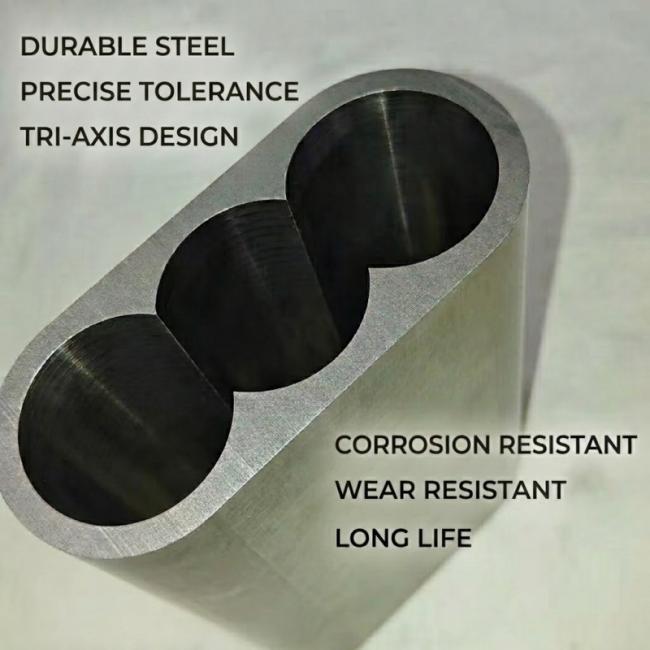

Our triple bimetallic screw barrel liner is a heavy-duty consumable component engineered exclusively for tri-screw co-rotating extruders. The monoblock three-bore integrated design matches intermeshed tri-screw geometry, enabling continuous conveying, melting, shearing and homogenization of polymer materials.
The inner working bores adopt centrifugal casting bimetallic cladding with tungsten carbide or nickel-based alloy. This liner is built to withstand severe erosion from abrasive fillers in polymer modification processes.
Product Features
3-bore integrated construction, precisely matched with intermeshed tri-screw profile
Centrifugally cast bimetallic wear layer; optional nitriding surface treatment
Outstanding hot hardness, abrasion resistance, chemical corrosion resistance
Strong resistance against glass fiber, carbon powder, talc, calcium carbonate and other mineral fillers
Deep hole precision machining, tight geometric tolerance control on bore position, parallelism and concentricity
Maintains consistent radial clearance between liner and three screws to stabilize melt flow
Key Advantages
- Cost-saving replaceable insert design: The outer main barrel body remains intact and reusable. Only worn liners need replacement, cutting your long-term spare part investment significantly.
- Optimized melt flow: Consistent clearance minimizes melt backflow, improves compounding uniformity and reduces unexpected production shutdowns.
- Full customization service: Custom bore diameter, overall length and L/D ratios available, strictly manufactured according to customer technical drawings.
- Extended service cycle: Blm60 cladding delivers far longer working life than conventional model when processing highly filled, abrasive polymer compounds.
- Reliable quality control: Every liner undergoes strict inspection of alloy layer thickness, hardness and dimensional tolerance before delivery.
Technical Specifications
|
Item
|
Specification
|
|---|---|
|
Barrel Diameter
|
Φ30mm – Φ400mm
|
|
L/D Ratio
|
Customized
|
|
Barrel Material
|
45# Steel + HIP Alloy Liner
|
|
Liner Hardness
|
HRC 58–64
|
|
Application
|
Twin Screw Extruder
|
|
Surface Treatment
|
Nitriding / Laser Cladding / HIP
|

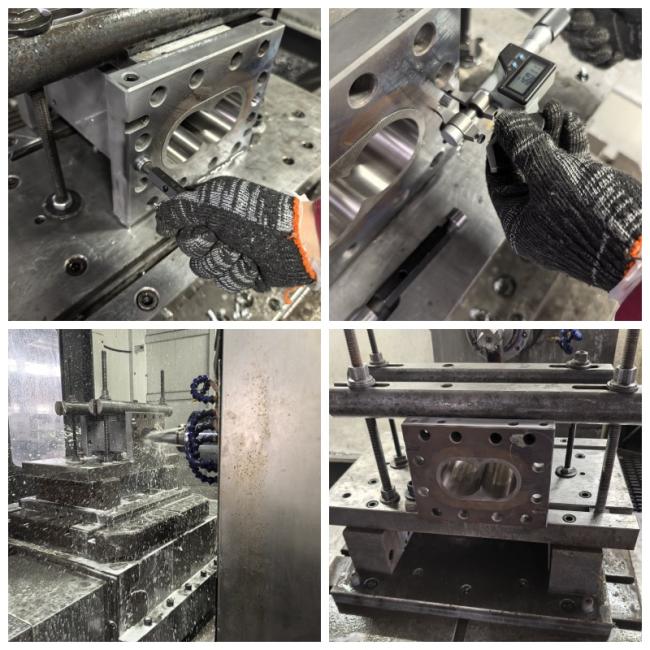

Production process
Refernce cases
About Bloom
Bloom (Suzhou) Materials Co., Ltd specializes in plastic extruder accessories including screw elements, barrels, shafts, and more. We focus on ultra-high wear resistance, corrosion resistance, and high temperature resistant components. Custom solutions available.
With stable quality, competitive pricing, timely delivery, and excellent after-sales service, we look forward to collaborating with you.
Contact us now for detailed parameters, customization options and competitive quotes of extruder screw and barrel. Our team is ready to assist you!
We will recommend the most suitable extruder barrel solution for your production line if you send me
- Extruder brand & model
- Barrel diameter
- Material application
- Current wear issue
- Drawing or sample (if available)
Product Details
Applications
For triple-screw extrusion lines
high filler masterbatch granulation
glass fiber reinforced modification
carbon black modification
biodegradable plastics, waste plastic recycling & pelletizing.
FAQs
Q: Do you offer wholesale or distributor cooperation?
A: Yes. We accept partners worldwide. Please send detailed requests through our CONTACT US form.
Q: What is your shipping time?
A: Shipping time depends on order quantity and items. For OEM orders, typically 25-65 days based on specific requirements.
Q: What price terms do you accept?
A: We accept EXW, FOB, and CIF terms.
