White Blue Zirconia Ceramic Welding Pins Guide Pins for Spot Welding and Stud Welding

1 . Descriptions:

White zirconia locating pin is processed by precision grinding. Specially designed for resistance spot welding and nut projection welding fixtures. It precisely locates and guides sheet metal, weld nuts & studs during welding, blocks shunting current to prevent short circuit, burning and thread damage.

white zirconia locating pin is engineered for resistance spot welding and nut projection welding fixtures. It locates sheet metal, weld nuts and studs, isolates shunting current and protects threads from burning.

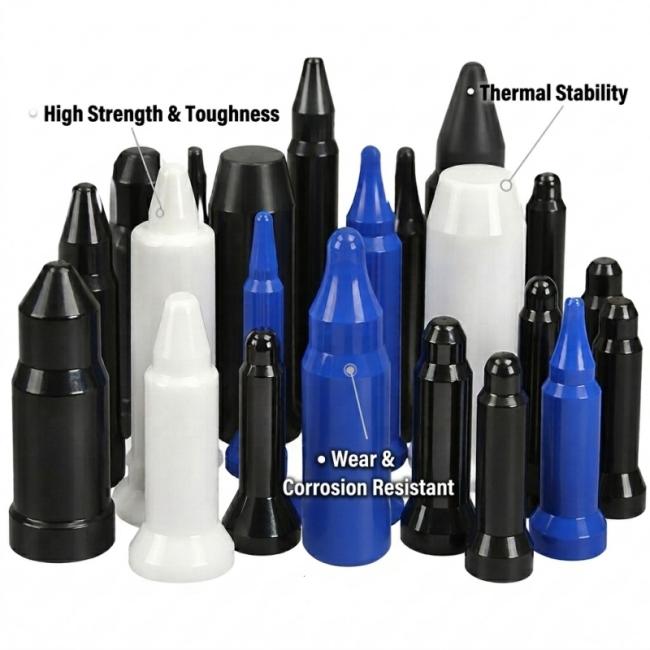

2. Product Features

High hardness & wear resistance, minimal dimensional loss after repeated insertion

Excellent thermal shock resistance, withstand instant high heat of spot welding

Low spatter adhesion to cut down jig cleaning work

Non-magnetic & oxidation resistant, no metal debris contaminating sheet metal

Precision grinding ensures high repeat positioning accuracy

3. Product Details

4 . Technical Specification

5 . Advantages

Longer service life vs alumina and metal pins, less production downtime

Stable positioning benchmark and consistent performance in mass production

Less spatter buildup, lower maintenance and higher line throughput

Direct replacement for KCF or alumina pins with minimal fixture modification

5. Applications

New energy battery frames and metal component spot welding

Automated projection welding for stamped hardware parts

Robotic welding jigs for construction machinery and home appliance sheet metal

5. Company Introduction

oom (Suzhou) Materials Co., Ltd. focuses on special ceramic accessories for spot / projection welding tooling. Our main products include zirconia, silicon nitride ceramic pins, KCF guide pins and other insulating welding components. Equipped with precision CNC grinding production lines, we support customization.

Each batch of ceramic parts undergoes full inspection on insulation, dimension and appearance to meet the harsh working conditions of automated welding lines. We support small batch trial samples and quick response to drawing customization, providing highly stable ceramic locating solutions for automotive, new energy and sheet metal welding customers worldwide.

5 . More products

6. Package

FAQ

1. What is the MOQ?
5~10 pcs based on different model and design.

2. What is the lead time?

7~10 days for standard model, 25~30 days for customized items.

3. Do you support OEM or ODM?
Yes, we support OEM, ODM, and OBM requirements. We can work from drawings, actual working conditions, and specific application needs.

4. What payment methods are available?

Payment methods can be discussed during quotation and order confirmation. Please share your preferred terms, and we will respond with available options.
