Resistance Welding Zirconia Guide Pin Black White Blue Zirconia Ceramic Welding Pin Custom Sizes


1 . Descriptions:

Zirconia locating pin is an insulated positioning component engineered for automated fixtures of resistance spot welding and nut projection welding.  At sheet metal nut and stud welding stations, it serves dual roles: establishing workpiece datum and isolating electric current. It effectively blocks bypass welding current and prevents arc damage to threads and sheet metal base material. Custom profiles including tapered tips, steps, flanges and special transitions are available with micron-level geometric tolerance.

2. Product Features


High-resistivity ceramic substrate blocks stray welding current to reduce mass defects

superior fracture toughness, resistant to chipping under continuous repeated impact

High wear resistance, extremely low wear rate under frequent insertion and extraction

Outstanding thermal shock resistance, withstand rapid temperature


3. Product Details



4 . Technical Specification



5. Applications

Automated fixture components for resistance spot welding, nut & stud projection welding

Automotive industry: Welding jigs for BIW weld nuts, chassis, door and seat assemblies

New energy sector: Locating parts for spot welding of energy storage and battery frame sheet metal

Sheet metal stamping: Special positioning inserts for automatic nut projection welding machines

Robotic welding stations for construction machinery and home appliance sheet metal

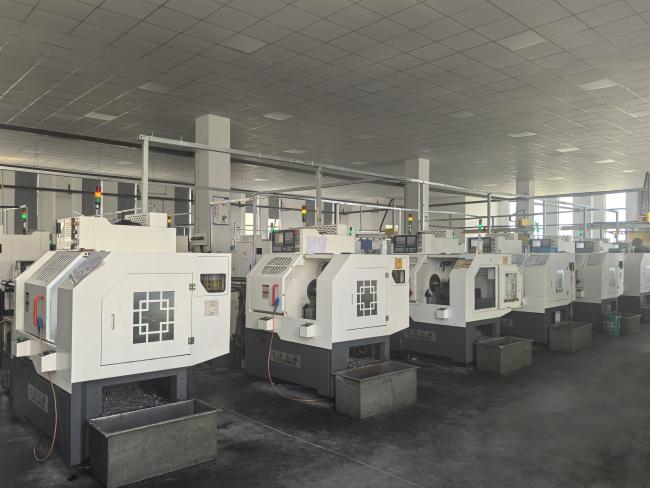

6. Company Introduction

Bloom (Suzhou) Materials Co., Ltd. focuses on special ceramic accessories for resistance welding . Our main products include

1) resistance welding accessories(electrode cap tips, KCF/ slicon nitride/ zirconia guide pins)
2) resistance welding tools (manual/ pneumatic / electrical tip dresser and disassembly wrench)
3) resistance welding equipment (nuts feeder and spot welder)

We support small batch trial samples and quick response to drawing customization. Contact us to get a solutions.


7. Exhibitions


8 More products


FAQ

1. What is the MOQ?
5~10 pcs based on different model and design.

2. What is the lead time?
7~10 days for standard model, 25~30 days for customized items.


3. Do you support OEM or ODM?
Yes, we support OEM, ODM, and OBM requirements. We can work from drawings, actual working conditions, and specific application needs.

4. What payment methods are available?

Payment methods can be discussed during quotation and order confirmation. Please share your preferred terms, and we will respond with available options.
