15-5 PH Bar Precipitation Hardening Stainless Steel UNS S15500 Grade For Nuclear Waste Casks

Price Negotiable
Price: FobShanghai usd 2.8-6.0/kg
MOQ: 100kgs
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Brand: BLM-1H-1
Product Description

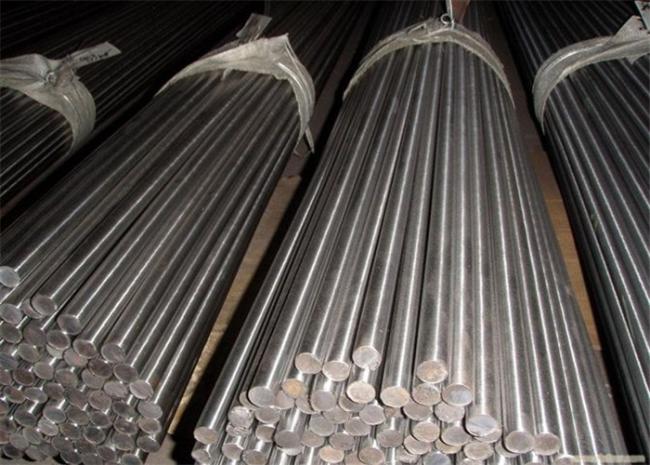

15-5 PH Bar





1 . Descriptions:



15-5 PH stainless steel was designed to have greater toughness than 17-4 PH. The 15-5 alloy is martens tic in structure in the annealed condition and is further strengthened by a relatively low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 is also referred to as XM-12 in some specifications. wuxi tp inox co.,ltd also offer 15-5ph UNS S15500 Grade XM-12 Round Bars. Round Bars are steel or metal bars that are produced by one or more cold finishing processes. The processes outlined below are known as Cold Finish processes or the end products are known as cold finished because there is no or very little heat applied in the entire operation of converting them from hot rolled bars (also known as black bars) to 15-5ph UNS S15500 Grade XM-12 Round Bars. 15-5ph UNS S15500 Grade XM-12 Round Bars is decaled pulled through Tungsten Carbide or High Speed Steel Die, straightened & cut-to-length; Improves dimensional tolerance and shape, straightness, surface finish, strength and machine ability. Remove bar surface of 15-5ph UNS S15500 Grade XM-12 Round Bars with revolving cutting tool, rotate bar through rolls to straighten and polish, then cut-to-length.



2 . Chemical Composition:



Grade C Si Mn P S Cr Ni Cu
15-5 PH ≤0.07 ≤1.0 ≤1.0 ≤0.04 ≤0.03 14.0~15.5 3.5~4.5 2.5~4.5







3 . Mechanical Properties:



Mechanical Property Value
Proof Stress 700-1170 MPa
Tensile Strength 930-1310 MPa
Elongation A50 mm 10-16 %
Hardness Brinell 277-444 HB







4 . Applications:



Due to the high strength of precipitation hardening stainless steels, most applications are in aerospace and other high-technology industries. Applications include:
Gears
Valves and other engine components
High strength shafts
Turbine blades
Moulding dies
Nuclear waste casks





5 . Features:

  • High tensile strength and hardness to 600°F
  • Corrosion resistant
  • Excellent oxidation resistance to about 1100°F
  • Creep-rupture strength to 900°F



6 . More pictures
