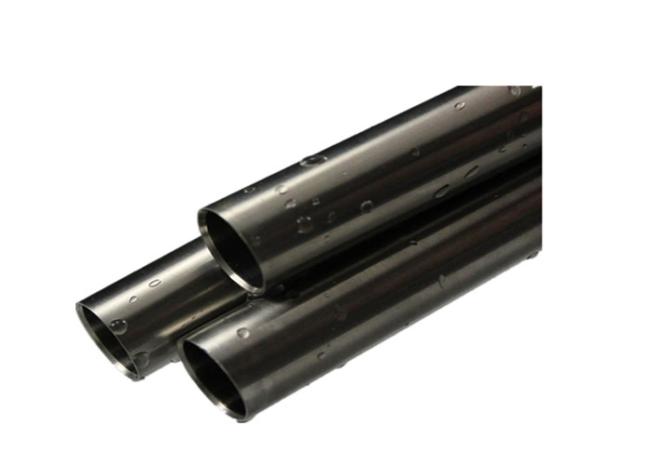

965 Tensile Strength Inconel Nickel Alloy Inconel 718 Tube With Stress Corrosion Cracking Resistance
Inconel 718
Inconel 718 Chemical composition
| Alloy | % | Ni | Cr | Fe | Mo | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
| 718 | Min. | 50 | 17 | balance | 2.8 | 4.75 | 0.2 | 0.7 | ||||||
| Max. | 55 | 21 | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.01 | 0.3 | 0.8 | 1.15 |
Inconel 718 Physical properties
| Density | 8.2 g/cm³ |
| Melting point | 1260-1340 ℃ |
Inconel 718 Alloy minimum mechanical properties in the roomtemperature
| Alloy | Tensile strength Rm N/mm² | Yield strength R P0. 2N/mm² | Elongation A 5 % |
Brinell hardness HB |
| Solution treatment | 965 | 550 | 30 | ≤363 |
718 Characteristic as below:
1.workability
2.High tensile strength,endurance strength,creep strength and rupture strength at 700℃.
3.High inoxidability at1000℃. 4.Steady mechanical performance in the low temperature.
5.Good welding performance.
Inconel 718 Metallurgical structure
718alloy is Austenitic structure, precipitation hardening generate "γ" made it excellent mechanical performance. G rain boundary generate "δ" made it the best plasticity in the heat treatment.
Inconel 718 Corrosion resistance
718 alloy with extremely resistance to stress corrosion cracking and pitting ability in high temperature or low temperature environments, especially the inoxidability in the high temperature.
Inconel 718 Application field:
1 . The elevated temperature strength, excellent corrosion resistance and workability at 700℃ properties
2 . made it use in a wide range of high requirement environments :Steam turbine ; Liquid-fuel rocket ; Cryogenic engineering
3.Acid environment
4.Nuclear engineering
