FeNi36 Grade Invar 36 Wire , Invar 36 Strip 8mm - 100mm Thickness
Hot sale direct price invar 36 wire,invar 36 strip,invar material
1.Descriptions:
INVAR 36 is a nickel-iron, low-expansion alloy containing 36% nickel. It maintains nearly constant dimensions over the range of normal atmospheric temperatures, and has a low coefficient of expansion from cryogenic temperatures to about 500°F. The alloy also retains good strength and toughness at cryogenic temperatures.
INVAR 36 can be hot and cold formed and machined using processes similar to austenitic stainless steels. INVAR 36 is weldable using Filler Metal CF36 which is available in bare wire for both the GTAW and GMAW process.
| Product Name | Invar 36 Plate ASTM,ASTM GB |
| Type | Invar Plate |
| Surface Treatment | Black |
| Application | petrochemical industry Tooling and dies for composite forming Cryogenic components Laser components |
| Inventory | INVAR 36 Plate, INVAR 36 Weld Wire |
| Features | Low expansion rate up to 500°F Readily weldable |
| Specifications | AFNOR NF A54-301 (chemistry only), ASTM F 1684-06, EN 1.3912, UNS K93600, UNS K93603, Werkstoff 1.3912 |
| Common Trade Names | Nilo 36 |
| Place of Origin | Jiangsu, China (Mainland) |
| Delivery | 25-30 days subject to the clients' requirements and quantity |
2 . Specification:
| GB/T | UNS | AISI/ASTM | W.Nr |
| 4J36 | K93600 | InVAR 36 | 1.3912 |
3 . Chemical Composition:
| Grade | ％ | Ni | Cr | Fe | C | Mn | Si | Co | Mo | P | S |
| Invar 36 | Min | 35 | bal | 0.2 | |||||||
| Max | 37 | 0.5 | 0.05 | 0.6 | 0.3 | 1 | 0.5 | 0.02 | 0.02 |
4 . Mechanical Properties:
| Grade | Tensile Strength Rm N/mm² | Yield Strength Rp0.2 N/mm² | Elongation A5 ％ | Hardness |
| Invar 36 | 490 | 240 | 42 | HB≤200 |
5 . Applications:
- Advanced composite molds for aerospace industry
- Bimetal thermostats
- Clock balance wheels
- Containers for LNG tankers
- CRT applications: Shadow masks, deflection clips and electron gun components
- Dimensionally stable instruments and optical devices
- Echo boxes and filters for mobile telephones
- Electrical circuit breakers
- High voltage transmission lines
- Magnetic shielding
- Metrology devices
- Pendulum clocks
- Positioning devices
- Precision condenser blades
- Radar and microwave cavity resonators
- Scientific instruments
- Seals, spacers and specialized frames
- Small electrical transformers
- Special electronic housings
- Temperature regulators
- Transfer lines for LNG

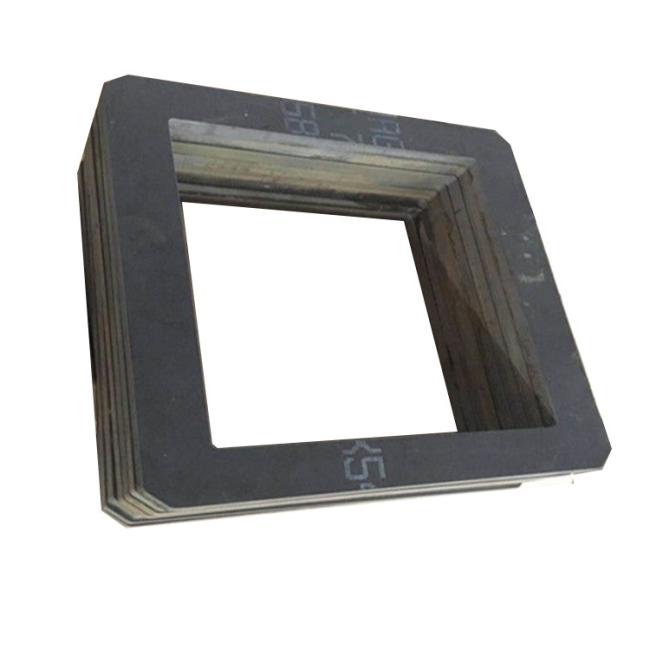

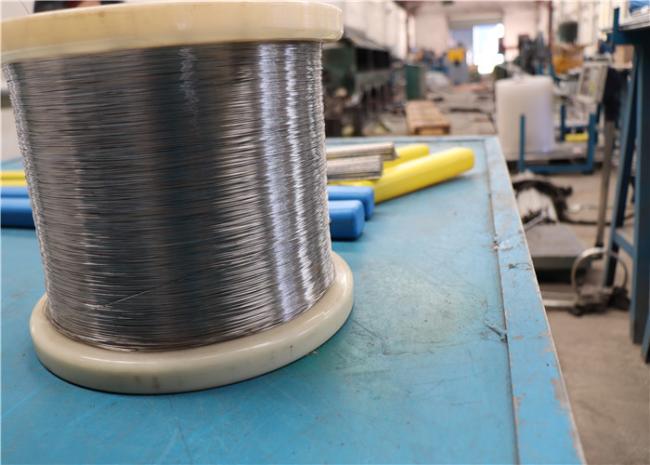

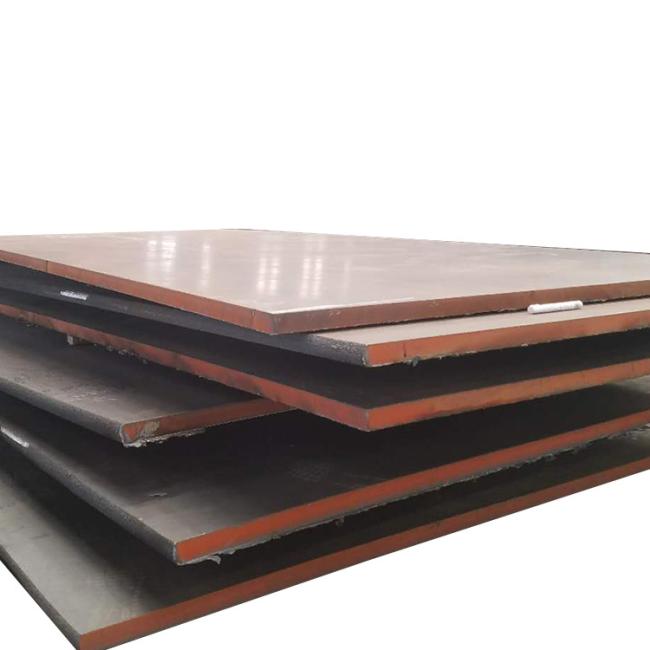

6 . More pictures
