APV   KOBE  OMC

BUSS  ICMA  TOSHIBA

CLEXTRAL  LABTECH  USEON

LANTAI OTHERS

JSW  LEITERITZ

KEYA  MARIS

3 . Comparsion of the output (LDPE)

Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.

4 . Material & Processes of screw barrel for plastic extruder

Alloy-steel of High-quality
1)38CrMoAlA
2)42CrMo
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)Quality Duplex Stainless Steels
6)GH 113
7)Quality Powder Metallurgy Raw Materials
8)Cold/Thermal Spray Hard Metal process
9)Advanced nitriding Process
10)Corrosion & Abrasion Resistance Bimetal Spraying Process

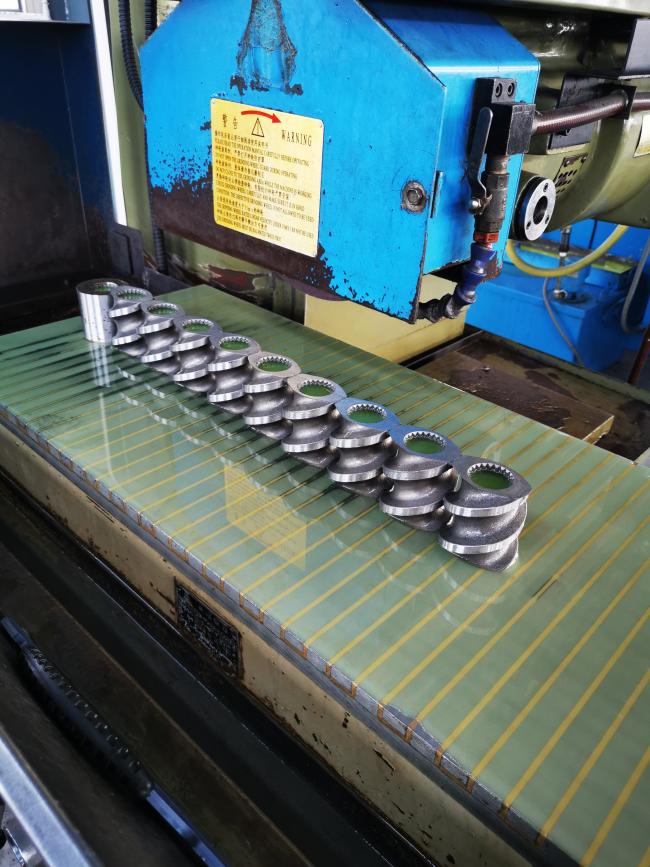

Types

Convey Screw Segment
Mixing Screw Segment
Kneading Block Disk
Transition Screw Element
Deep groove transfer element
Screw element for side feeder
1flighted 2flighted flighted screw elements

5 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;

Blow Molding Screw;

PS/PE/PP/ABS Sheet Extrusion Screw;

PE Aluminum Plate;

PPR Pipe Screw;

EVA Extrusion Screw;

HDPE High efficiency Screw;

PET Straps Screw;

XPS/EPE Foamed Screw;

Granulation Screw,Vented single screw etc.
