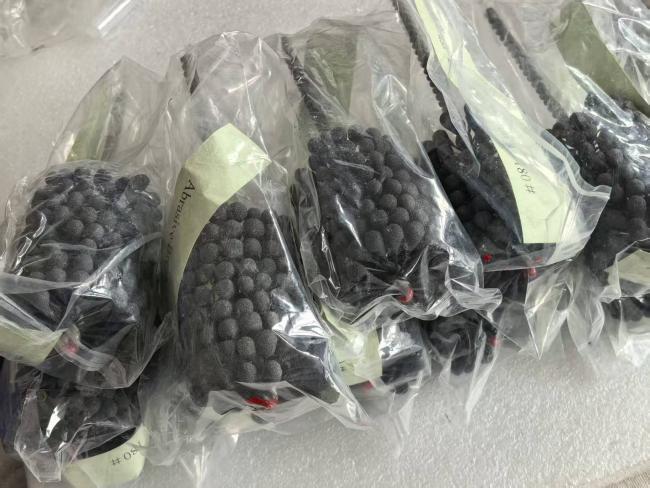

Various Size Sic Honing Brush As Brush Hone Fro Deburring And Finishing

 A SIC (Silicon Carbide) honing brush, often referred to as a "flexible hone" or "brush hone," is a specialized abrasive tool used for internal diameter (ID) finishing and deburring. It is characterized by abrasive globules (beads) bonded to the ends of flexible nylon filaments.

1. Structure & Material
Abrasive Media: High-hardness silicon carbide (SiC) grit (60#–1000#), providing sharp cutting and long wear life.
Filaments: Flexible nylon strands, enabling self-centering, self-aligning, and self-compensating for wear, ensuring uniform contact with bore walls.
Shank: Rigid steel core for clamping in drills, CNC spindles, or honing machines.
Shape: Typically ball-shaped abrasive tips arranged in a cylindrical brush form, ideal for deep and complex bores.

2. Key Features & Advantages
Flexible & Uniform Finishing: Adapts to bore irregularities; delivers consistent cross-hatch finishes (e.g., 45°) for oil retention and piston ring seating.
Deburr & Polish in One Step: Removes micro-burrs, edge breaks, and glaze while refining surface roughness (Ra 0.2–1.0 μm).
Non-Damaging: No metal contact; avoids scratching or deforming soft/hard materials.
Wide Applicability: Works on mild steel, stainless steel, cast iron, aluminum, and alloys.
Cost-Effective: Reusable, long-lasting, and compatible with automated equipment (CNC, robots).

3. Main Applications
Automotive: Engine cylinders, valve guides, piston pin bores, brake caliper holes.
Hydraulics & Pneumatics: Cylinder tubes, valve bodies, hydraulic hoses, bearing bores.
General Machining: Cross-hole deburring, blind hole finishing, tube ID polishing, mold pin holes.
Aerospace & Precision Parts: High-precision bores, actuator components, and medical device parts.

4. Specifications & Selection
Diameter: 3 mm–300 mm (custom sizes available).
Grit Size: 60#–120# (rough deburring), 180#–320# (general finishing), 400#–1000# (mirror polishing).
Length: 50 mm–600 mm (customizable).
Speed: 500–3000 RPM (dependent on material and diameter).
