China Helical CBN Diamond Wheel 120*54*20 Electroplated Bonding for sale

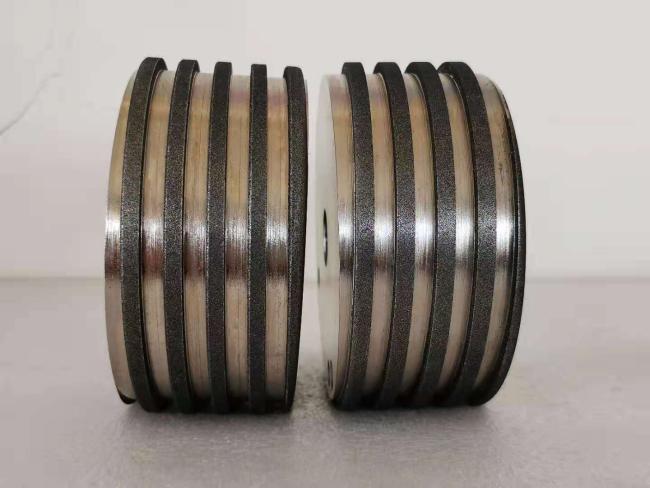

Helical CBN Diamond Wheel 120*54*20 Electroplated Bonding

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: JC
Product Description

product name:Helical CBN Diamond Wheel

Specification:120*54*20

Description:

Item Content
Workpiece Helical Gear
Processing Method Gear Tooth Grinding
Material SCM435
Machine HONDA
Revolving Speed 4500rpm
Time per Part 1min 45s
Roughness Rz3.0
Service Life 3,500 Pcs
Tooth Conformity 0.003---0.005mm
Shape Tolerance 0.002mm
