Small Capacity Paper Pulp Molding Egg Tray Machine Production Line 700pcs/h Aluminum Molds
Small Capacity Paper Pulp Molding Egg Tray Machine Production Line 700pcs/H Aluminum Molds
This model egg tray machine or egg tray production line includes 2 or 3 parts as customers actual needs:
1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)
Egg Tray Machine is with 700pcs/h capacity.
And this egg tray machine is in computer PLC control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Technical Parameters of the 700pcs/h capacity 2 molds egg tray machine( pulp molding machine/ egg tray production line)
| Egg Tray Mold Quantity | 2pcs | |
| Raw material | Waste paper | |
| Egg tray Capacity | 700pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| Waste paper consumption | 0.06ton / hour | |
| Water Consumption | 0.1ton/hour | |
| Natural Gas Consumption of Dryer | 20-25cbm/h | |
| Worker requirement | 3-4workers | |
| Machine Length | 7m-23m | |
| Machine weight | 7-20tons | |
| Power Requirement | Without dryer | 30KW |
| With dryer | 45KW | |
| Area of workshop | Without dryer | More than100M² |
| With dryer, dryer-12m | More than240 M² | |
| Container Requirement | Without dryer | 20ft*1 |
| With dryer | 40ft*2+20ft*1 | |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | ||

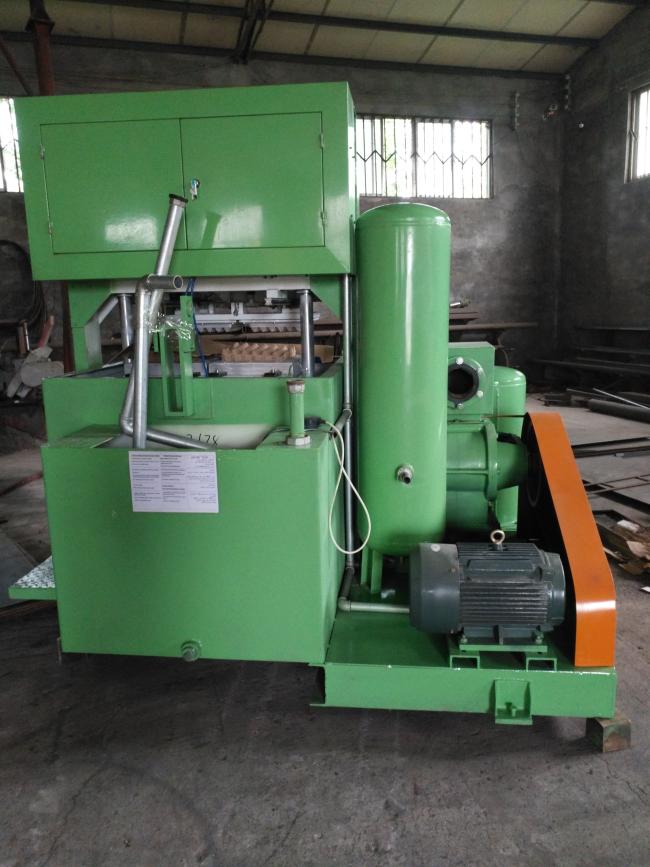

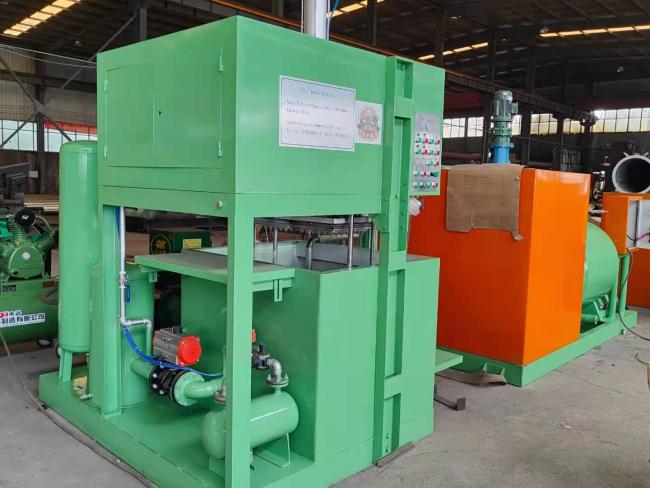

Forming machine part of 700pcs/h capacity egg tray machine

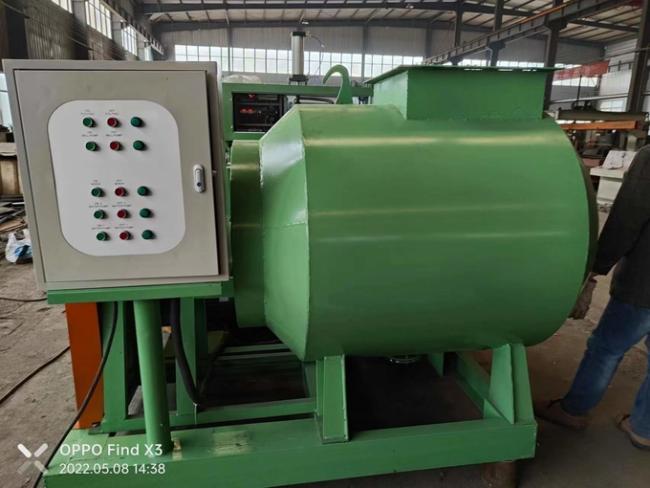

Pulping machine of 700pcs/h capacity egg tray machine
Applications:

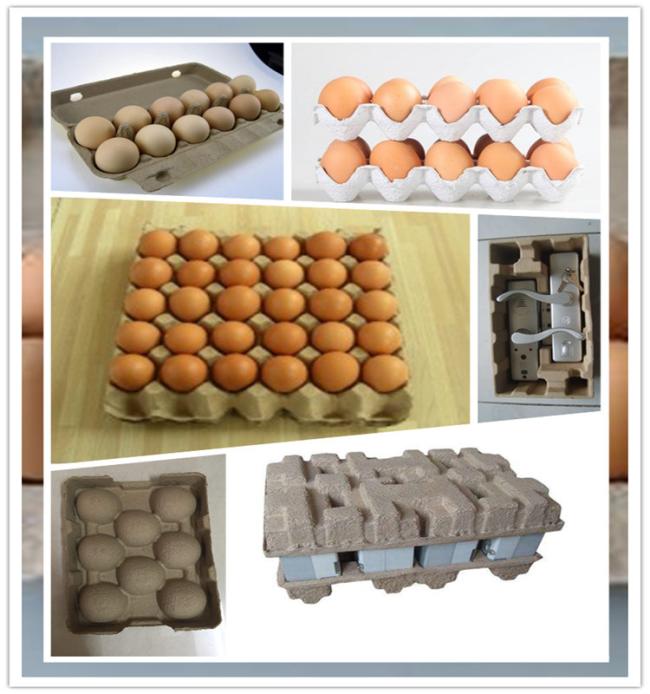

Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our machine
Business Terms
| Delivery time | About 25 working days after receiving the deposit.or Negotiation. | |
| Payment term | BY T/T first advance40%, balance 60% be paid before machine delivery | |
| Warranty time | 1 year after the Egg tray machine received. | |
| Container quantity | 3*40GP container for whole line with egg tray machine dryer, 20GP without dryer | |
| Installation | ||
|
1. Usually, all installation and debugging work will be done before shipment. 2. We will offer online support after sales services for problems during installation and testing. 3. Buyer needs to build underground type 1 water pools with size of 1.5m*1.5m*1.5m (L*W*Depth)and1 pulp pools with size of 1.5m*1.5m*1.5m(L*W*Depth). |
||
