Automatic 1200mm Extrusion Laminating Machine 250m/min 380V
Our automatic double-sided extrusion laminating machine features a maximum 1200mm material diameter and operates at speeds up to 250m/min. Designed for high-speed matte lamination, this advanced system handles various materials including paper, films, metalized films, aluminum foil, and woven/non-woven fabrics.
The machine produces composite materials for diverse applications including food packaging, liquid packaging, aseptic packaging for medical/cosmetic products, and packaging for stationery and electronics. Our patented technology meets CE and ISO9001 standards.
- Double shaft-less paper roll stands for 3-6 inch cores with automatic lift
- Auto splicer device enables material changes at 150-300 m/min without speed reduction
- Ultrasonic EPC system for simplified material replacement
- Hydraulic lamination structure produces thinner, firmer coatings
- Precision trimming device ensures even finished rolls
- Special cutting knife and rewinder design enables high-speed shaft exchange
| Item | LY-ASP-1200 | LY-ASP-1400 | LY-ASR-1700 |
|---|---|---|---|
| Effective laminating width: | max1100mm | max1300mm | max1600mm |
| Machinery speed: | 250m/min | 250m/min | 250m/min |
| Screw diameter: | φ90mm | φ100mm | φ115mm |
| Max output: | 250kg/h or 400kg/h | ||
| Resins: | LLDPE/LDPE/PP/EVA | ||
| Laminating thickness range: | 8-45μm | ||

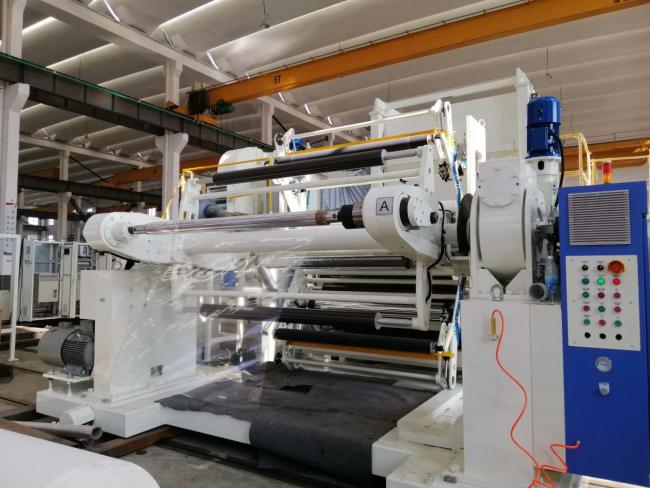

Our double station unwinder handles multiple materials with automatic roll changes at full operating speed. Featuring both button and touch-free operation modes, this compact system maximizes production space efficiency.

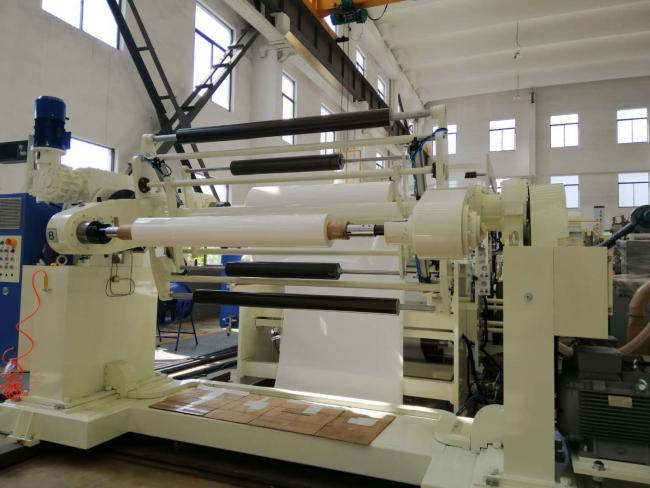

The precision rewinder maintains consistent tension across various materials using a suspension-type press roller system. This ensures smooth, high-quality finished products with automatic roll changes at production speed.
Our advanced compound unit combines cooling rollers, silicone rubber pressure rollers, and precision trimming devices to create uniform, high-quality laminates. The chromium-plated steel rollers with double-deck cooling channels ensure optimal film fastness and surface smoothness.
The precision trimming system eliminates thickened edges that can cause quality issues. Featuring quick-change cutters and adjustable width settings, this system produces consistently flat, smooth composite materials with minimal labor.
Jiangsu Laiyi Packing Machinery Co., Ltd. (established 2007) operates from a 13,000m² facility in Changzhou, China. With annual sales exceeding $20 million, we specialize in high-performance extrusion laminating machines for diverse packaging applications.
| Factory Size: | 20,000-40,000 square meters |
| Location: | No.238 East Jinsheng Rd., Jintan District, Changzhou City, Jiangsu Province, China |
| Production Lines: | 3 |
| Services: | OEM/ODM Contract Manufacturing |
We offer machines from 1200mm to 2500mm, with custom designs available to meet specific requirements.
After factory installation, your representatives are invited to inspect test runs before shipment.
Our machines feature comprehensive warning systems with visual alarms for paper breaks and operational faults.
Our engineers provide overseas installation support and training after machine delivery.
