Wireless Portable Dental X Ray Machine , Portable Dental X Ray Unit Tripod Optional

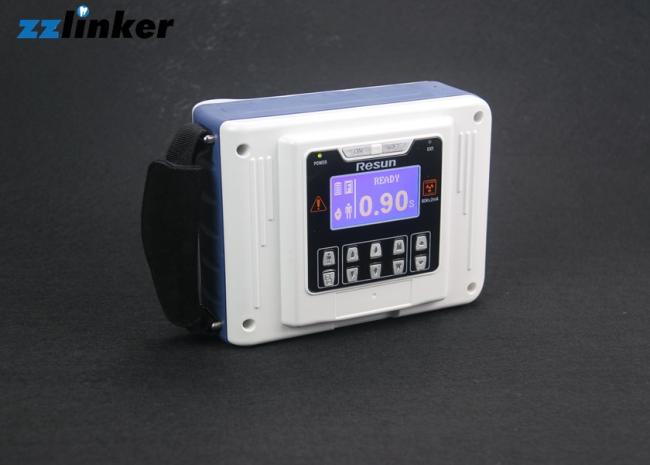

LK-C27B Korea Design Tripod Optional Wireless Portable Dental X Ray Machine
Technical specifications
Rechargeable Lithium Polymer battery:24V
Maximum battery charge:25.2V
Battery current at 2mA,60KV output:10A
Power supply:JBL7451250750100FJ,Bridge Power Corp.
Input:AC100-240V,50-60HZ 1.0A
Output:DC25.2V,0.75A
Cable length of DC output:1550mm
Cable length of AC input:1550mm
Cable length of remote controller:3000mm
X-Ray control and Generator
Exposure time range:0.01-1.6sec
Maximum duty cycle:1:60
Maximum inherent filtration:1.6mm Al
Maximum output power:120W nominal at 60KV,2mA
Generator rating:2mA at 60KV±5%
Leakage technique factors:60KV,2mA,1.6sec
Specification:
| Net Weight | 2.8KGS |
| Generator rating |
2mA at 60KV±5% |
|
Leakage technique factors |
60KV,2mA,1.6sec |
|
Output |
DC25.2V,0.75A |
