5pcs Tips Ultrasonic Tooth Scaler For Cleaning Teeth
LK-F13L LED Ultrasonic Tooth Scaler Dental Tools for Cleaning Teeth with Detachable Handpiece 5pcs Scaler Tips
The ultrasonic tooth scaler Technical Datas
| Power source | 220V±10% / 50Hz ± 1Hz 150mA |
| Main unit input | 24V 50Hz ± 1Hz 1.3A |
| Output power | 3～20W |
| Frequency | 30±3KHz |
| Dimension | 170mm×111mm×65mm |
| Weight | 0.75kg |
| Package | 5pcs/carton |
| Carton Size | 60*40*33cm/carton |
| Tips |
G1*2, G2, G4, P1 |

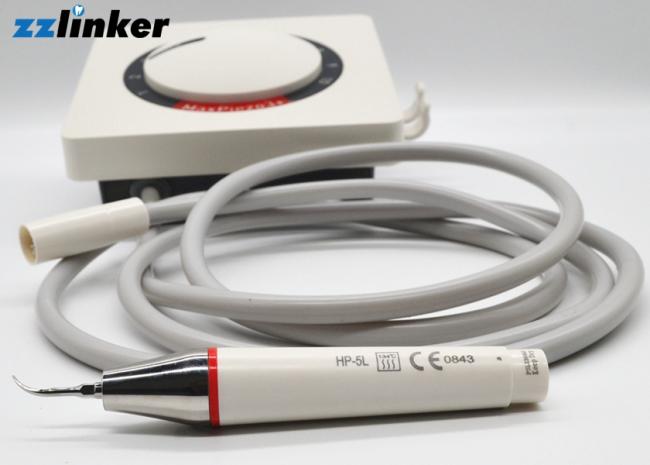

The ultrasonic tooth scaler Instruction for main components of detachable handpiece:
a)Cap:The Cap can be removed.You can screw out the Cap and clean the pole with alcohol termly.
b)Decorative ring: can be disassembled and cleaned with alcohol regularly, can be autoclaved under the high temperature and pressure.
c)Handpiece:The main part of the whole handpiece, can be autoclaved under the high temperature and pressure.
d)Symbol:Autoclaved (134°C,0.22MPa)
e)The connector of the cable:Connect the handpiece with the water source and power supply of the main unit.
f)LED lamp, Light conductor(The models that the handpiece with LED lamp):Clean them with purified water and sterilize them under the high temperature of 134C and high pressure of 0.22Mpa.

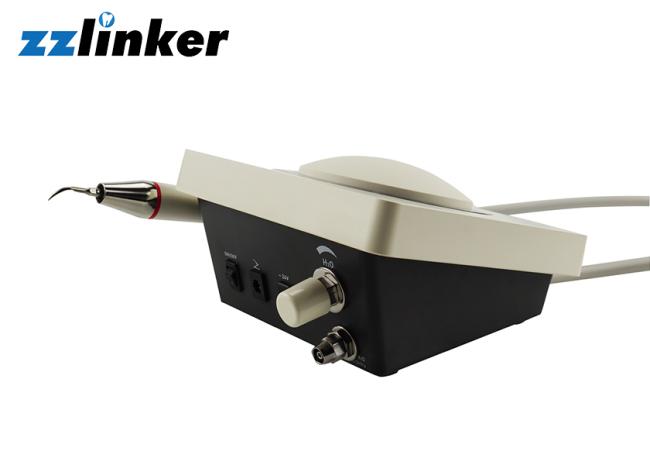

The ultrasonic tooth scaler Product introduction
1.1Product overview
The product is used for teeth cleaning and also an important device for teeth disease prevention and treatment. The Ultrasonic scaler is composed of main unit, handpiece, cable, waterpipe, tip, torque wrench, footswitch, and power supply. The ultrasonic scaler has following features:
1.1.1 Detachable handpeice can be autoclaved under 134C and 0.22Mpa.
1.1.2 Automatic frequency tracking ensures that the device always works on the best frequency, stable and efficient performance
1.2 Contraindications:
1) The hemophilia patient is for bidden to use this equipment.
2)The patients or doctors with heart pacemaker are forbidden to use this equipment.
3)The heart disease patient, pregnant woman and children should be cautious to use the equipment
13 Equipment safety classification
1)Operating mode: Continuous operation
2) Type of protection against electric shock: ClassIl
3) Degree of protection against electric shock: Type B applied part
4) Aplied part of the equipment: Tip
5) Degree of protection against harmful ingress of water: Ordinary equipment
6) Degree of protection against harmful ingress of water: protection degree against water(used on foot switch): IPX
17) Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Equipment can not be used in the presence of aflammable anesthetic mixture with air or with oxygen or nitrous oxide.
