Wood Based Panel Industry 6460mm Wood Debarking Machine
Efficient Complete Drum Debarker Line For Wood-based Panel Industry
This debarking system for logs is extensively used in the OSB, MDF and pulp mill process for bark removal, and the efficiency could be more than 95%.

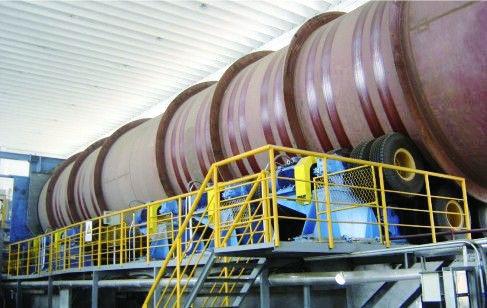

The rotary drum debarker developed and supplied by CMT is advanced , with such features of low power consumption, compact design, high debarking efficiency and high throughput. The technology is the first domestic. It is the ideal equipment for wood-based panel, papermaking industry.
Debarking Section Technical Route:
1. Log－Loader－Feed-in conveyer－Inclined Feed－in channel (Debarker)－Debarker－Discharge－Roller Conveyer－Belt Conveyor－Inclined Feed－in channel(Chipper)－Chipper.
2. Barks fall down from the bark discharging slot (including bark fall down the roller conveyer)－Belt Conveyer－Energy Factory
|
|
10 m3/year | 15 m3/year | 20 m3/year | 30 m3/year |
| Chain conveyer (input) | 416/24 | 4110/28 | 4110/28 | 4110/32 |
|
Feed chute
|
FB31 | BPX201 | BPX201 | BPX201 |
| Chute length, mm | 6460 | 5500 | 5500 | 5500 |
| Drum debarker | 1130/18 | 1140/15 | 1140/21 | 1140/27 |
| Chain conveyer (output) | 416/7 | 418/7 | 4110/7 | 4110/7 |
| Production capacity, m3/h | 132 | 132 | 185 | 185 |
If you are interested, do not hesitate to contact me.
REGARDS!
