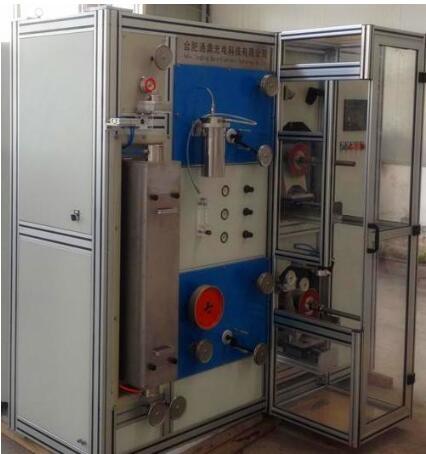

Light Industry Projects Optical Fiber Coloring And Rewinding Making Machine
Optical Fiber Coloring and Rewinding Making Machine/Production Line
1. Application of the machine
The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.
2.The description of all the units
2.1 Movable optical fiber pay-off unit
2.2 Take-up and pay-off tension control unit
2.3 Fiber coloring and material supply system
2.4 UV Curing Oven
2.5 Capstan and counter
2.6 Take-up and traversing unit
2.7 Button station
2.8 Release static system
2.9 Electric control system and software
3.The condition and protection for the equipment
Keep the equipment far away from the vibrating source and the disturbing source.
The nitrogen source and the compressed air source should be provided by the users. The purity of the Nitrogen is 99.9%. The supply capacity is 30L/min. The pressure of the compressed air is 0.5Mpa. The pressed air must be dry and without oil.
For more information, please contact us at any time.
| Main technical data | |
| Optical fiber number | 1 |
| Coloring speed | ≤1600m/min (Nitrogen gas ) |
| Structure speed | ≤1800m/min |
| Rewinding speed | ≤1800m/min |
| Thickness of coloring layer | 3~5μm |
| Pay-off tension | 0.3N~1.2N±0.05N |
| Take-up tension | 0.3N~1.5N±0.05N |
| Traversing pitch | 0.1~1.0mm±0.01mm |
| Extra-attenuation after coloring | ≤0.02dB/Km(SM , 1500Nm) |
| Accuracy of the counter | ≤0.1% |
| Optical fiber reel size (max.) | 25km/50km reel weight 10kg |
| 236~300mm (out dia. of reel) | |
| 108~250mm (width of reel) | |
| 25.4mm (axle hole) | |
| Power supply | three phases five wires,3×380V±10%, 50HZ±2%, power 23KW |
| nitrogen purity | ≥99.99% |
| compressed air | 0.5mpa |
| Machine Dimension | 1600mm×1500mm×2000mm(L×W×H) |
