PLC Control Corrugated Sheet Roll Forming Machine , Corrugated Iron Roller Machine
Speed 12-20m/min Corrugated Sheet Roll Forming Machine PLC Control Hydraulic Cut
1. Product Description
| Control System | PLC Delta Inverter |
| Main Frame | 300mm H-Beam |
| Main Power | 7.5 kw |
| Pump Power | 4 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 10-15m/min |
| Roll Station | 13 stands |
| Roller Diameter | 80mm |
| Hydraulic Pressure | 10-12MPa |
| Feeding Thickness | 0.3-0.8mm |
| Backboard Thickness | 14mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 6200×1300×1600mm |
| Total Weight | 3.5T |
2. Packaging & Shipping
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed with water proof paper
Shipping :
1. One 20" container
2. One 40"container
3. Our Services
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $100/days
4. Corruaged roof roll forming machine flow chart
5. FAQ
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.

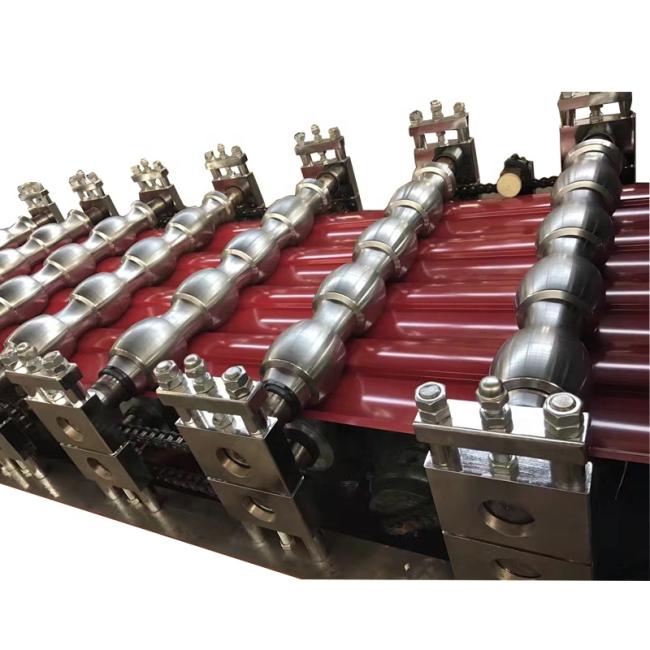

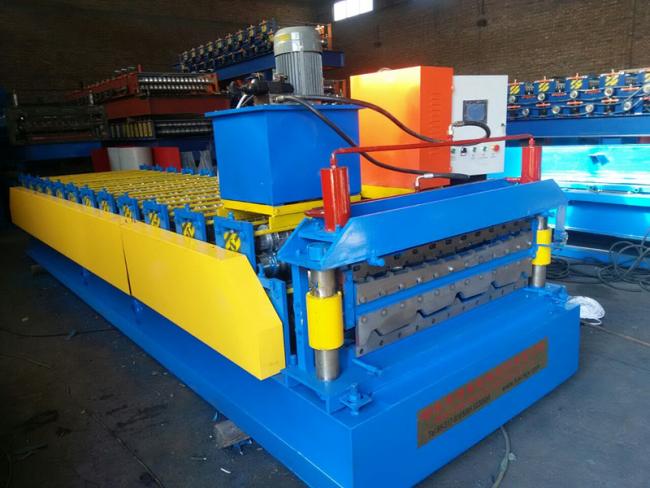

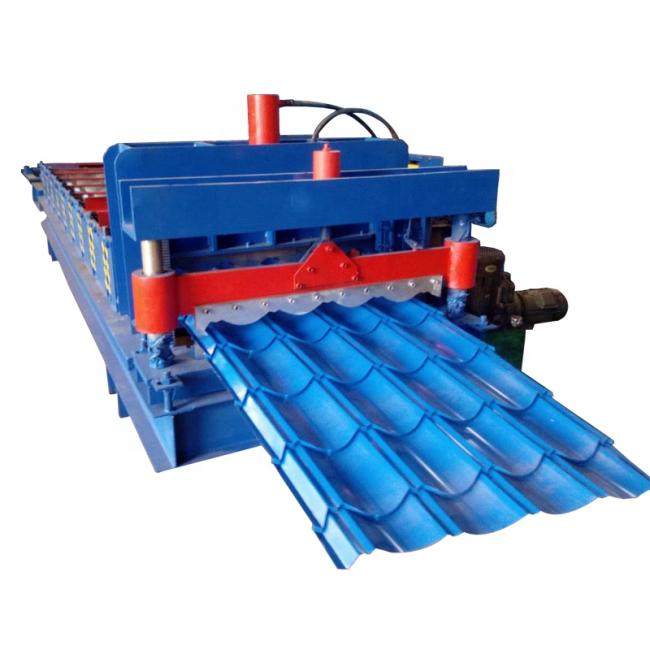

6. Picture
