Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine
IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine
Double Layer Roll Forming Machine Description
Compared to a single layer roof panel roll forming machine, this double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one metal roof tile
A double sheet roll forming machine usually consists of a decoiler, two entry feeding guides with entry shearing optional, two roll forming systems, one Cutting frame with two cutting dies, one transmission system, one control system and runout tables.
Double Layer Roll Forming Machine Technical Parameters
|
Suitable Material |
Type | PPGI/GI/PPGL Coil |
| Thickness | 0.3-0.8mm | |
| Wide | 914mm/1000mm/1200mm/1250mm/1450mm | |
| Yield Strength | 230~550Mpa | |
|
Power Specs |
Voltage | 380V/3PH/50HZ, accept customization |
| Main Motor | 7.5kw | |
| Hydraulic motor | 4kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Forming steps number | 16~22 steps |
| Shaft Material | 45 # steel tempered, 70mm | |
| Roller Material | 45 # steel coated with hard chrome | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1.5 inch | |
| Wall Plate | 18mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment 60-62 | |
| Forming Speed | 0-12m/min for standard solution | |

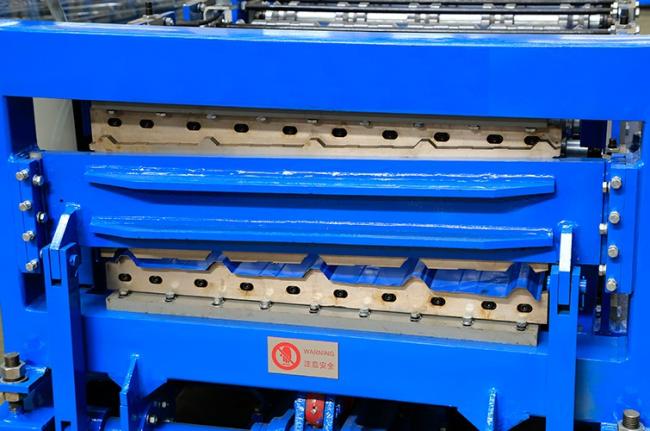

| Cutting system | Length-set cutting after roll formed | |

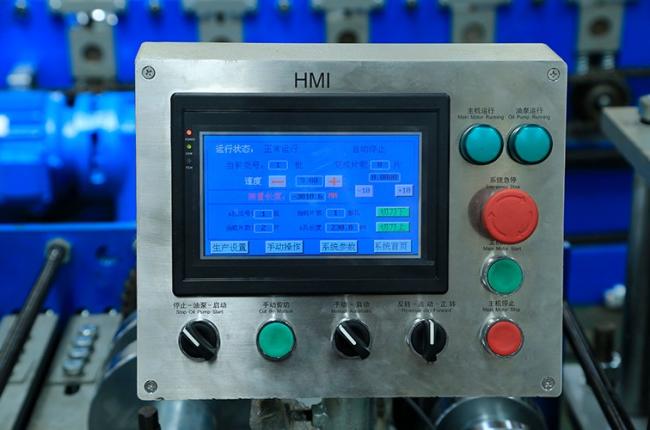

| Control System | Delta PLC and Converter | |
| Manual decoiler |
Max width of coiling: 762~1250mm Max weight of loading: 5000kg |
|
| Output Supporter | 2 Pcs Simple Supporter | |
| Dimension of the machine | 7.5m*1.5m*1.2m (L*W*H) | |
| Weight of the machine | 6 ton | |
Double Layer Roll Forming Machine Details
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
