CE 15m/Min Profile Sheet Manufacturing Machine Fully Automatic
15m/Min Double Layer Roll Forming Machine Corrugated Sheet and Trapezoidal Roofing Sheet
1. Description

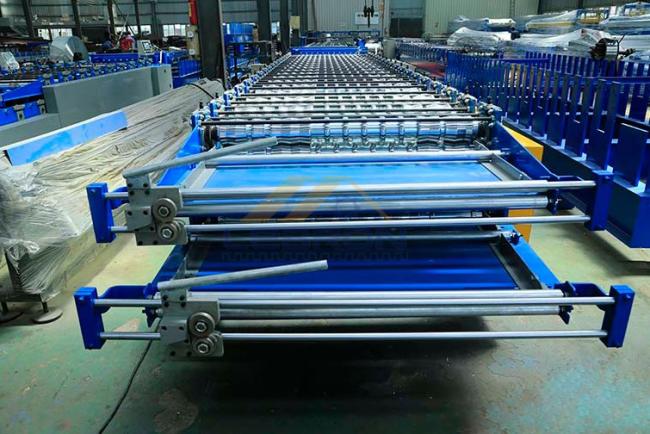

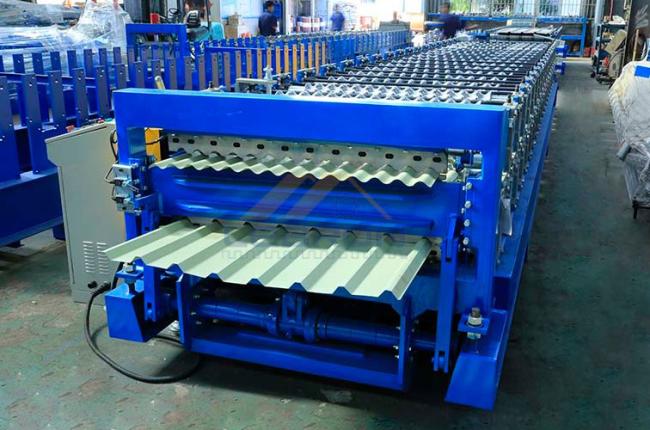

The Double Layer Roll Forming Machine is designed to automatically mass-produce the Corrugated Sheet and Trapezoidal Roofing Sheet through a fully automatic system. The Double Layer Roll Forming Machine is widely used in a variety of industrial plants and civil buildings. It has the advantages of beautiful appearance and durability. Through the double-layer design, manufacturing costs and space can be saved.
2. Technical Parameters
| 1 | Forming Speed | Approx. 15m/min |
| 2 | Roller Stations |
Up layer: 14 stations Down layer: 18 stations |

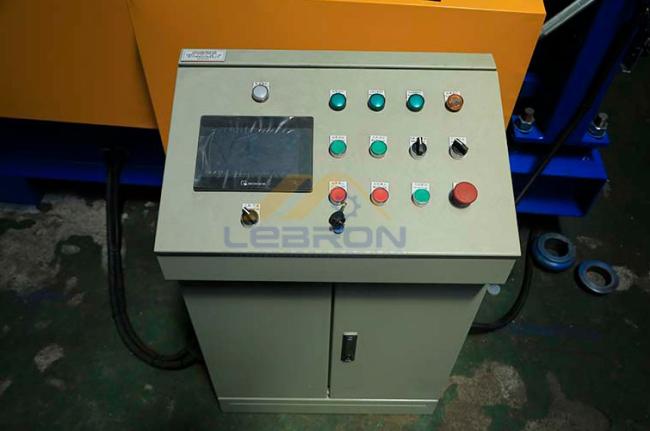

| 3 | Control System | Siemens PLC |
| 4 | Suitable Material | GI, GL, PPGI, PPGL Coil |
| 5 | Suitable Thickness |
0.3-0.8mm |
| 6 | Roller | No.45 steel. Coated with 0.05mm hard chrome |
| 7 | Shaft |
45# with quenching and tempering, Dia 75mm |
| 8 | Material Of Cutting | Cr12 Steel, 58-62 HRC hardness |
| 9 | Maim Motor Power | 7.5kw*2 |
| 10 | Hydraulic Station Power | 5.5kw |
| 11 | Electric Source |
380V, 50HZ,3 phase According to customer’s require |
