16 Stations 70mm Custom Shaft Downspout Forming Machine
Siemens PLC Control Fully Automatic Downspout Roll Forming Machine Blue Color

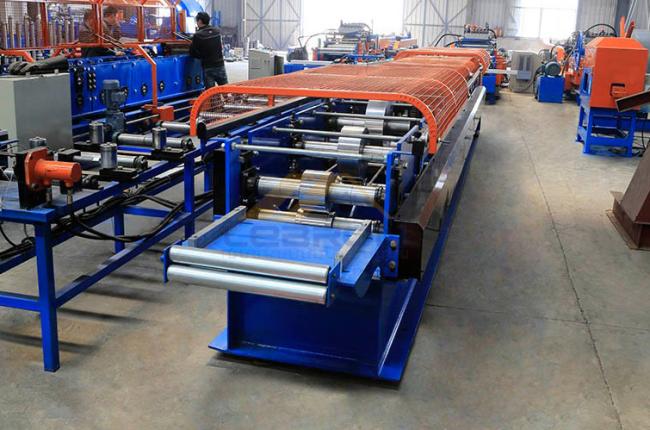

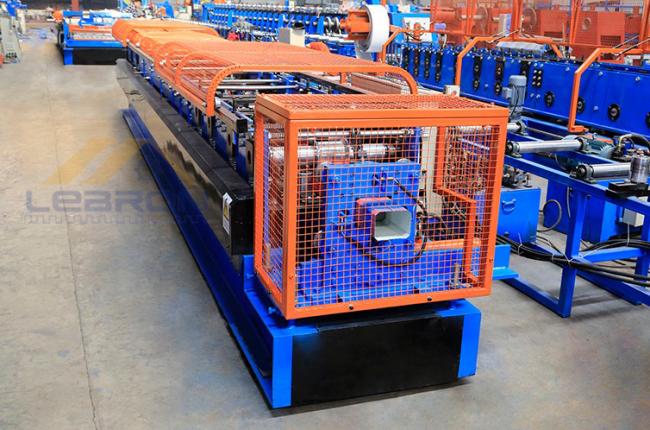

1. Downpipe roll forming machine description
This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Our downpipe roll forming machine has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.
2. Technical details of downpipe roll forming machine
| Condition | New |
| Brand Name | Lebron-Machinery |
| Voltage | 380V or 220V |
| Warranty | 12 months |
| Roller | 16 rows |
| Type | Downspout Roll Forming Machine |
| Forming speed | 12-18m/min |
| Dimension(L*W*H) | 7700mm*1200mm*1500mm |
| Base | 300H steel |
| Diameter of shaft | 70mm |
| Roller material | 45# steel, coated with hard chrome |
| Cutting type | Hydraulic cutting type |
| Cutting blade | Cr12 |
| Main Motor Power | 7.5Kw |
| Weight | 7-8 Tons |
| Color | Bule (can custom As your request) |
| Material thickness | 0.3-0.8mm |
| Material width | 330mm |
| Transmission type | Chain transmission+deceleration motor |
| Automation | Full-automatic type |
| Control system | Siemens PLC Control |
| Place of Origin | Wuxi City, Jiangsu Province, China |
| After-sales Service Provided | Engineers available to service machinery overseas |
3. FAQ
Q1. What is your advantage?
A1: We have over 11 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
