Save Manpower Steel Door Roll Forming Machine 75mm Shaft
Automatic Galvanized Steel Door Frame Making Machine 1.0mm to 1.2mm Thickness

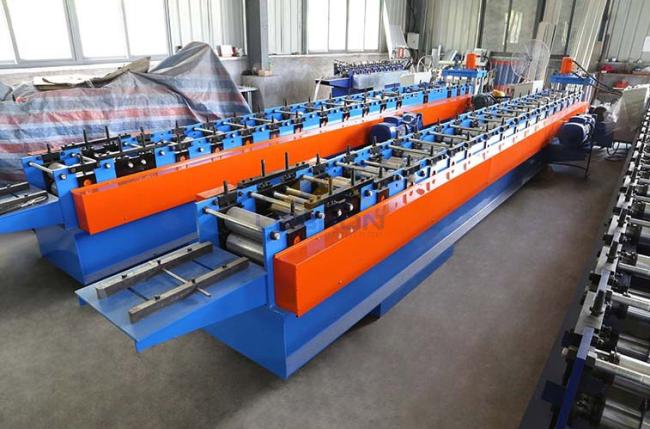

1. Description of Door Frame Roll Forming Machine
We often see many exquisite door frames in our lives, so door frames are used to install door leaves. In the past, ordinary doors had door frames. Now in the fine decoration, the door with plutonium is installed directly on the keel of the door cover without a frame.
The new type of door and window equipment has high precision and fast efficiency. And the main choice of the digital display is to save labor.
The Door Frame Roll Forming Machines can be divided into three categories: ordinary door frame forming machines (one-time), door frame half forming machines (adjustable), and fully automatic door frame forming machines.
2. Technical Parameters of Door Frame Roll Forming Machine
| Weight | About 8000kgs |
| Size | About 7.5m*1.2m*1.0m (L x W x H) |
| Suitable Material | Galvanized steel strip |
| Thickness | 0.8~1.2mm |
| Coil width | 240mm |
| Yield strength | 235Mpa |
| Rollers station | 18 Stations |
| Roller Shaft Diameter | 75 mm |
| Roll Forming Speed | 20-25m/min |
| Production Speed | Approx.15m/min |
| Roller Material | 45# steel, coated with chrome, quenched |
| Cutter material | Cr12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main power: 7.5 KW |
| Hydraulic power: 4 KW | |
| Electric voltage | 380V 50Hz 3 Phase (as per local requirement) |
3. Our Service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.
After-sale Service:
We provide 24-hour online service for our customers.
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
the expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD100 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
5. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1 year maintenance and whole life technical support
