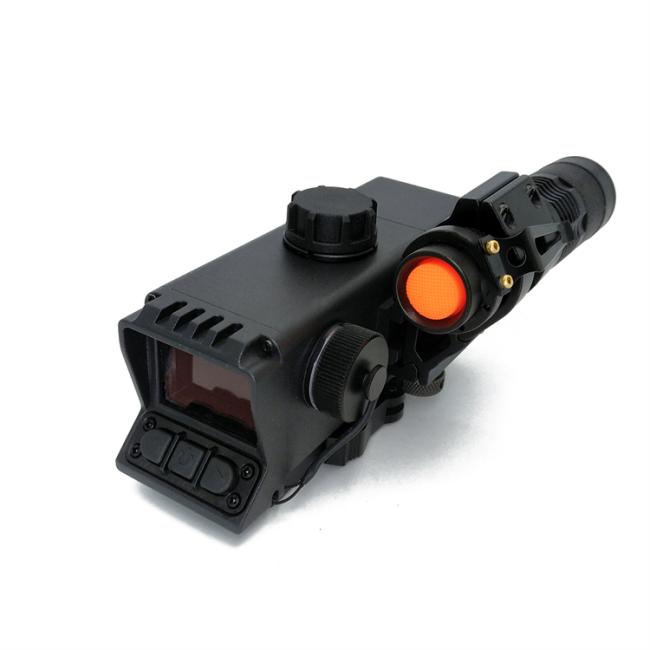

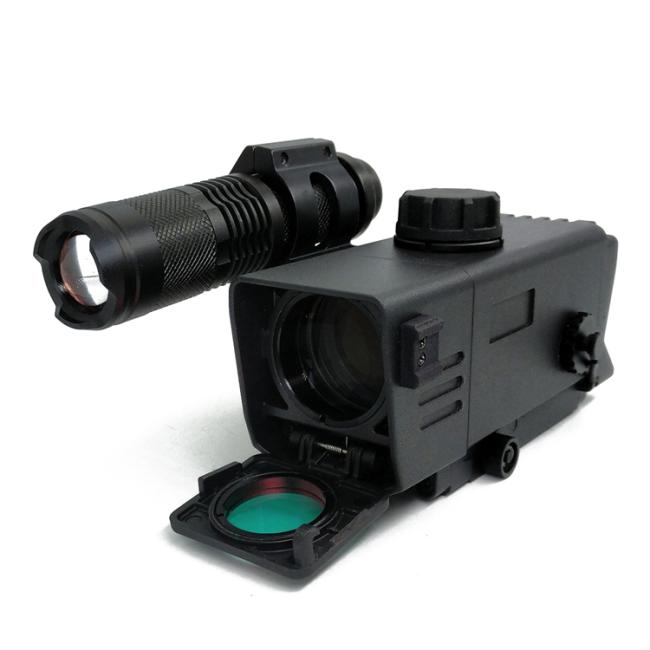

3.5x32 TRD10PRO Infrared Red Dot Sight Night Vision Scope For Shooting Hunting
3.5x32 TRD10PRO Infrared Red Dot Sight Night Vision Scope For Shooting Hunting
Night Vision Sight Scope Applicattions:
Frontier armed police inspections and filings, customs anti-smuggling inspections and sea patrols.
Field observation and rescue and outdoor tourism for mountain cave explorers.
Forestry management, geological exploration, oil production units, airport management, large-scale gathering and transportation management railways.
Environmentally friendly remote photo monitoring.
Night Vision Scope Specifications
| Model | TRD10PRO |
| Sensor | 1/3" CMOS 1280×720P |
| Display screen | 1.6" 640X480HD IPS |
| Magnification | 3.5X (at 250mm clear vision distance) |
| Focus method | Focus by knob |
| Resolution | 1280X720P/30fps |
| Recording video format | .mp4 |
| Segment recording time | 1 minutes/3 minutes/5 minutes/10 minutes |
| Loop recording | Yes |
| Slideshow | Yes |
| RAM | Built-in 16GB memory card |
| Boot time | Less than 3s |
| Electronic magnification | 2-7 Lv |
| Video recording | Yes |
| Screen brightness adjustment | Yes |
| Quick calibartion | Yes |
| Time setting | Yes |
| Proportional ranging | Yes |
| Assisted shooting | Yes |
| Image color | Yes, black&white/color/fluorescent green/brown four image colors |
| Reticle selection | Yes, 5 kinds of reticle,can be closed |
| Reticle color | black/blue/red/green/white |
| Language | Simplified Chinese, English and other six languages |
| Precision switching | Switching with Mil /MOA |
| Battery Type | 16340/18350/CR123A rechargeable lithium battery (3.7V) |
| Power Adapter | 5V/2A |
| Charging status indicator | Yes |
| Battery indicator | Yes |
| Low battery alert | Yes |
| Shutdown timer | Yes |
| Battery life | ≥3 hours |
| Data interface | Mini USB2.0 |
| MOA adjustment amount /Each coordinate | 0.2Mil / 0.5MOA |
| Max Elevation Adjustment | 24Mil / 60MOA |
| Max Windage Adjustment | 32Mil / 80MOA |
| Operating temperature | -25℃ ～ +55℃ |
| Storage temperature | -55℃～70℃ |
| Impact resistance | >=600G |
| Waterproof level | IP67 |
| Weight(with battery) | ≤400g |
| Dimensions | 136×60×65mm |
| Mount | Quick Picatinny mount(MIL-STD-1913) |
Differences between TRD10PRO and TRD10:
①The diameter of the objective lens of TRD10PRO is increased to 32mm, and the optical magnification is increased to 3.5X;
②The screen is upgraded from TFT to IPS, which has higher definition and expressiveness;
③ The focusing method is changed to knob-type focusing; the waterproof level reaches IP67.
Features:
NVG10PRO is a new product developed based on the latest optoelectronic technology.
The night vision sight adopts the high-performance II/III generation image intensifier, which has the characteristics of excellent performance, small size, light weight, clear imaging, convenient operation and high cost performance.
The night vision red dot sight has a built-in digital video acquisition system, which can easily realize digital video acquisition and transmission at night or under no-light conditions, and realize night vision command coordination.
The product has strong practicability and can be used for military observation, coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in a no-light environment at night.
