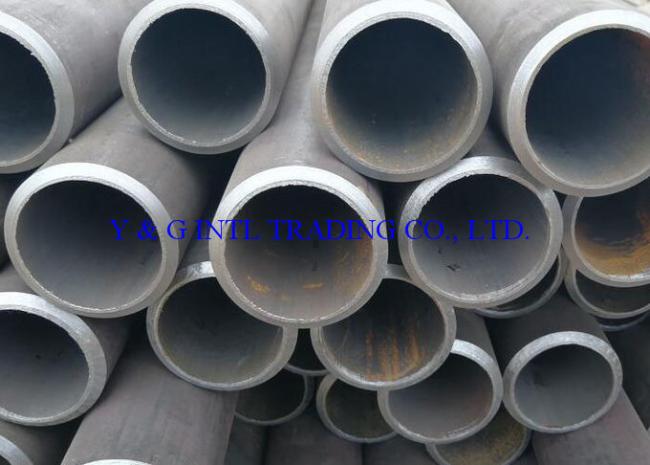

Annealed Carbon Steel Tube ASTM A192 A192M For High Pressure Boiler Tube
ASTM A192 A192M Annealed Seamless Carbon Steel Tubing Construction Tubes OD 12.7 ~ 114.3mm Thickness 0.8 ~ 15mm
Product Standard: ASTM A192, A192M
Main steel grades: A179, Grade A, A192, Grade A1
Application:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Chemical Requirements & Mechanical Properties:
| Product | Ttem | Grade | Chemical composition | |||||||
| C | Si | Mn | P.≤ | S.≤ | Cr | Ni | others | |||
| Carbon steel | 1 | 10 | 0.07/0.13 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.15 | ≤0.30 | Cu≤0.25 |
| 2 | 20 | 0.17/0.23 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
| 3 | A179 | 0.06/0.18 | - | 0.27/0.63 | 0.03 | 0.03 | - | - | - | |
| 4 | A192 | 0.06/0.18 | ≤0.25 | 0.27/0.63 | 0.03 | 0.03 | - | - | - | |
| Item | Mark | Tensile property | Hardness | ||||
| Extension strength Rm Mpa | Lower Yield strength Rel or Rp0.2 MPa | lower Yield strength ReL or Rp0.2 Mpa | |||||
| Thickness | Thickness | ||||||
| ≤16 | >16 | <5.1 | ≥5.1 | ||||
| ≥ | ≤ | ||||||
| 1 | 10 | 335~475 | 205 | 195 | 24 | - | - |
| 2 | 20 | 410~530 | 245 | 235 | 20 | - | - |
| 3 | A179 | ≥325 | 180 | 35 | - | - | |
| 4 | A192 | ≥325 | 180 | 35 | 77HRB | 137HB | |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
