Pressure Bearing Machine Carbon Steel Tube With Oil Impregnation Surface P265GH , P235GH

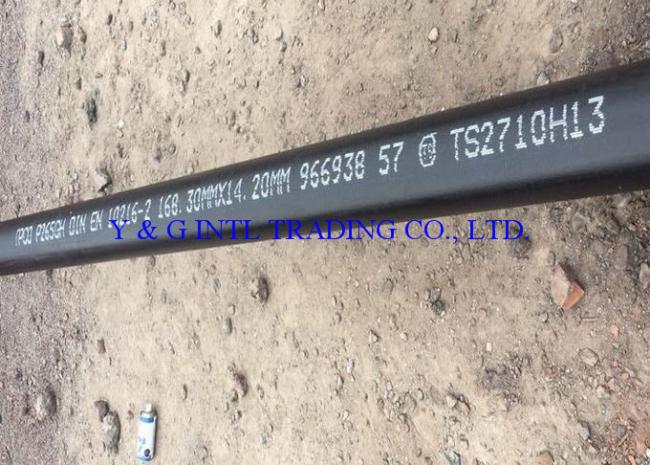

EN10216-1 EN10216-2 P265GH P235GH Seamless Carbon Steel Tubing For Pressure - Bearing Equipment 168.3 * 14.2mm
Product Standard: EN10216-1 EN10216-2
Main steel grades: P195,P235,P265,P195GH,P235GH,P265GH,13CrMo4-5,10CrMo9-10
Application: For boiler water pipes, smoke pipes, superheater pipes, air preheat pipes.
Chemical Requirements & Mechanical Properties:
| Standard | Grades | Chemical Composition(％) | |||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
|
EN 10216-1 |
P195 | ≤0.13 | ≤0.35 | ≤0.70 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / |
| P235 | ≤0.16 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / | |
| P265 | ≤0.20 | ≤0.40 | ≤1.40 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / | |
| EN 10216-2 | P195GH | ≤0.13 | ≤0.35 | ≤0.70 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / |
| P235GH | ≤0.16 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / | |
| P265GH | ≤0.20 | ≤0.40 | ≤1.40 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / | |
| 13CrMo4-5 | 0.10~0.17 | ≤0.35 | 0.40~0.70 | ≤0.025 | ≤0.020 | 0.70~1.15 |
0.40~0.60
|
≤0.30 | ≤0.30 | / | |
| 10CrMo9-10 | 0.08~0.14 | ≤0.50 | 0.30~0.70 | ≤0.025 | ≤0.020 | 2.00~2.50 | 0.90~1.10 | ≤0.30 | ≤0.30 | / | |
| Standard | Grades | TS (MPa) | YS(MPa) | Elongation(%) |
| EN 10216-1 | P195 | 320～440 | ≥195 | ≥27 |
| P235 | 360～500 | ≥235 | ≥25 | |
| P265 | 410～570 | ≥265 | ≥23 | |
| EN 10216-2 | P195GH | 320～440 | ≥195 | ≥27 |
| P235GH | 360～500 | ≥235 | ≥25 | |
| P265GH | 410～570 | ≥265 | ≥23 | |
| 13CrMo4-5 | 440～590 | ≥290 | ≥22 | |
| 10CrMo9-10 | 480～630 | ≥280 | ≥22 |
Packing: Exporting package/wooden box /as requirement.
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
