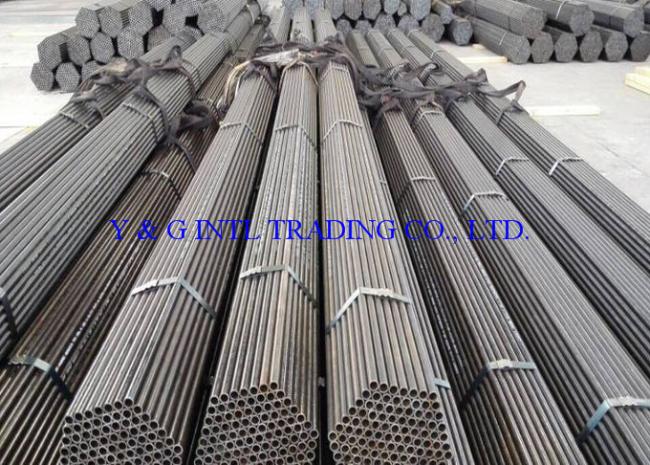

GB6479 Round Steel Tubing , High Pressure Fertilizer Seamless Mechanical Tubing
15CrMo 12Cr2Mo 12Cr5Mo GB6479 Seamless Alloy Steel Tubing , High Pressure Fertilizer Equipment Tubes Length 4-12m
Product Standard: GB6479-2013,ASTM DIN JIS
Main steel grades: 10,20,Q345B/C/D/E,12CrMo,15CrMo,12Cr2Mo,12Cr5Mo,10MoWVNb,12SiMoVNb
Application: For high pressure chemical fertilizer equipment, (working temperature
40 ~ 400 ℃ & working pressure 3 ~ 10 MPa)
Chemical Requirements & Mechanical properties:
| Standard | Grade | Chemical Composition(％) | |||||||
| C | Si | Mn | P | S | Cr | Mo | Ni | ||
| GB6479 | 10 | 0.07～0.14 | 0.17～0.37 | 0.35～0.65 | ≤0.030 | ≤0.030 | / | / | / |
| 20 | 0.17～0.24 | 0.17～0.37 | 0.35～0.65 | ≤0.030 | ≤0.030 | / | / | / | |
| 16Mn | 0.12～0.20 | 0.20～0.60 | 1.20～1.60 | ≤0.030 | ≤0.030 | ||||
| 10MoWVNb | 0.07～0.13 | 0.50～0.80 | 0.50～0.80 | ≤0.030 | ≤0.030 | / | 0.60～0.90 | / | |
| 15CrMo | 0.12～0.18 | 0.17～0.37 | 0.40～0.70 | ≤0.030 | ≤0.030 | 0.80～1.10 | 0.40～0.55 | / | |
| 1Cr5Mo | ≤0.15 | ≤0.50 | ≤0.60 | ≤0.030 | ≤0.030 | 4.00～6.00 | 0.45～0.60 | ≤0.60 | |
| 12 Cr2Mo | 0.80～0.15 | ≤0.50 | 0.40～0.70 | ≤0.030 | ≤0.030 | 2.0～2.50 | 0.90～1.20 | ||
| Standard | Grade | TS(MPa) | YS(MPa) | Elongation(％) | AK(J) | Akv |
| GB6479 | 10 | 335～490 | ≥205 | ≥24 | / | －20℃≥18 |
| 20 | 410～550 | ≥245 | ≥24 | ≥39 | －20℃≥18 | |
| 16Mn | 490～670 | ≥320 | ≥21 | ≥47 | －40℃≥21 | |
| 10MoWVNb | 470～670 | ≥295 | ≥19 | ≥62 | ||
| 15CrMo | 440～640 | ≥235 | ≥21 | ≥47 | ||
| 1Cr5Mo | 390～590 | ≥195 | ≥22 | ≥94 | ||
| 12 Cr2Mo | 450～600 | ≥280 | ≥20 | ≥38 |
Packing: Exporting package/wooden box /as requirement.
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
